CONNECTIONS
EXAMPLE #1

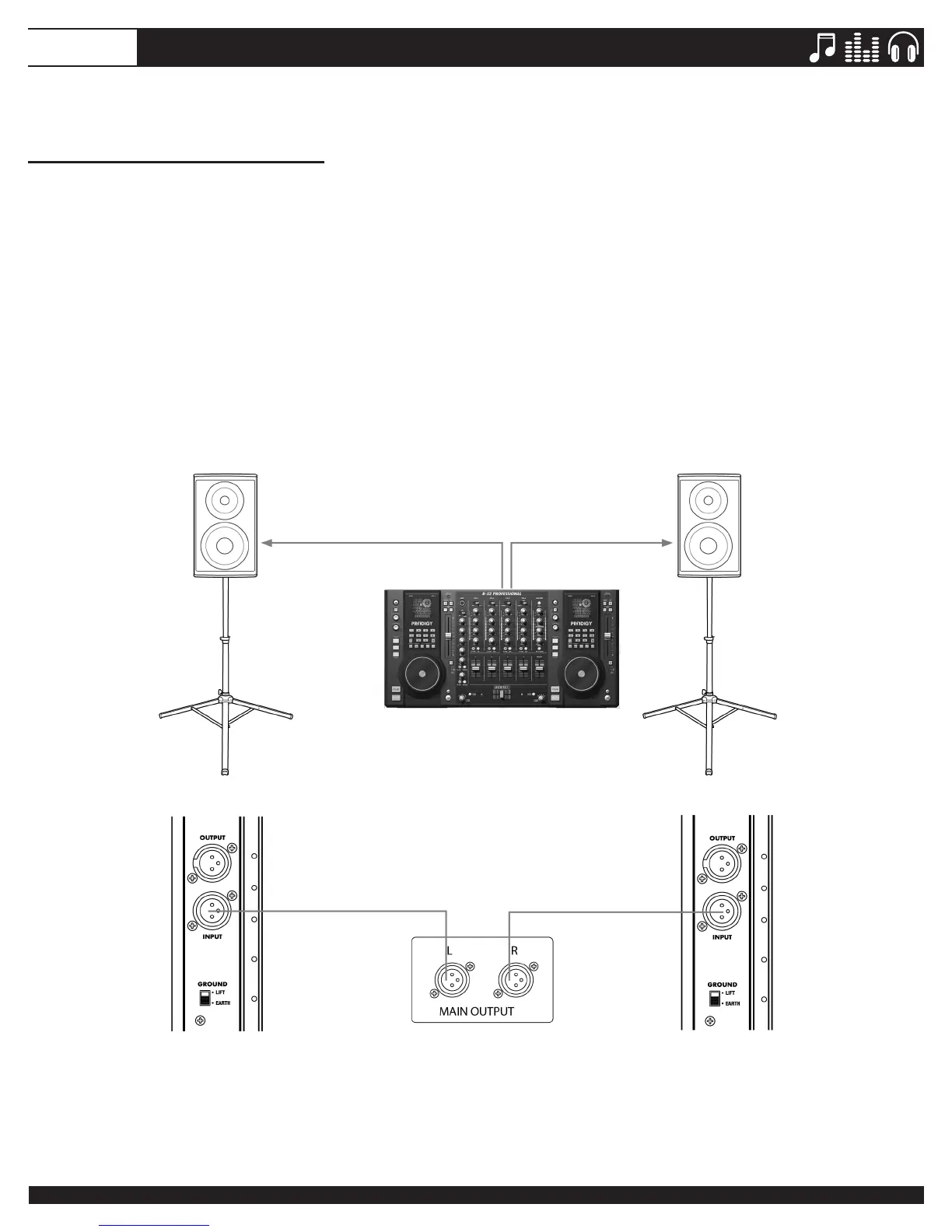

This example shows a two-channel (stereo) setup utilizing two Full-range loudspeakers (ACTPRO12M,
ACTPRO15, ACTPRO1515). Audio signals for the Left and Right channels are supplied by the mixer
console,inthisexample,aProdigyFX.TheleftchanneloutputfromthemixerisconnectedtotheINPUT
connector on the left full-range ACTPRO loudspeaker. The right channel output from the mixer is then con-
nected to the INPUT connector on the right Full-range ACTPRO loudspeaker. Turn OFF the 100 Hz LOW-
CUT FILTER. This will ensure that both speakers are outputting the most bass possible, to compensate for a
subwoofer not being used.
