Babboe Curve - Page 11

11

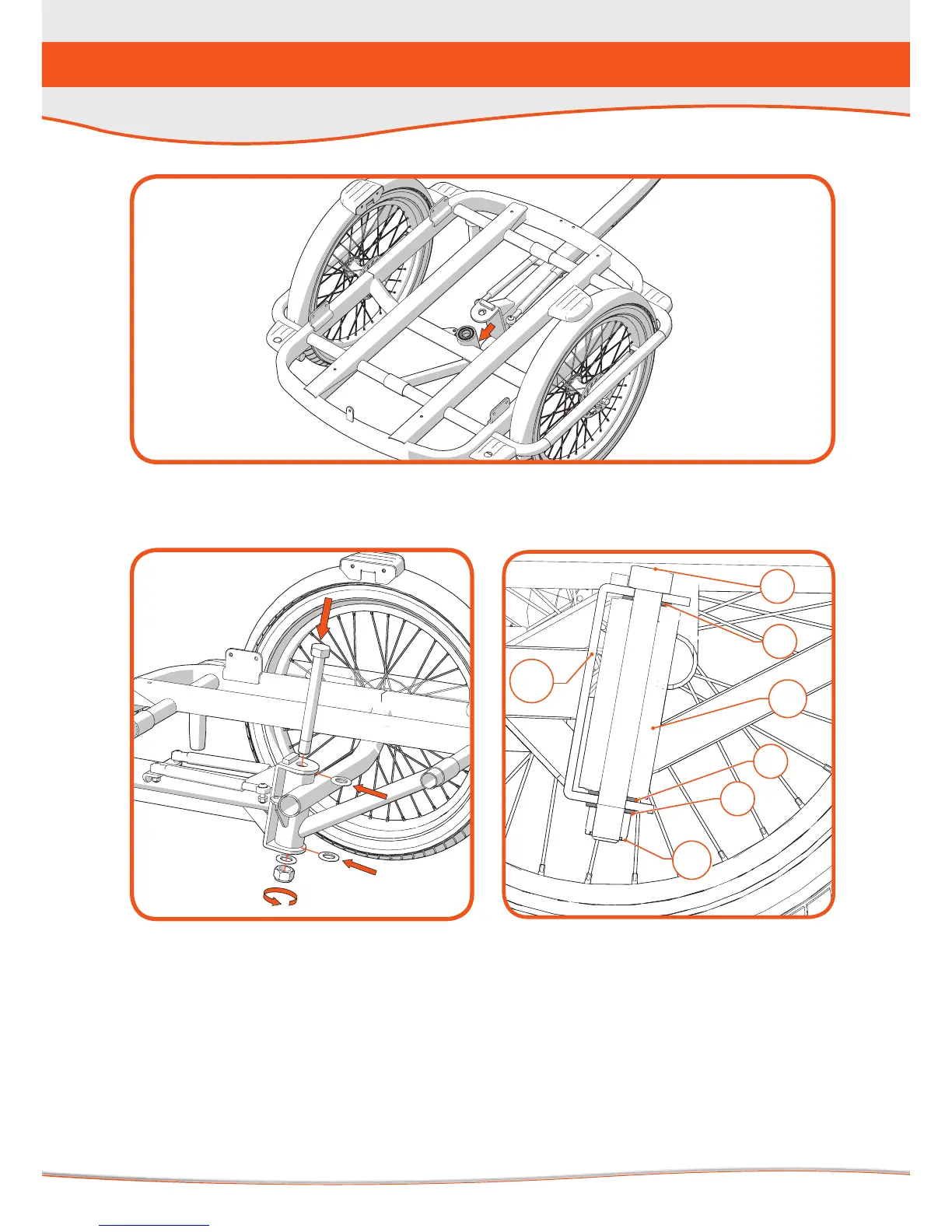

4. Slide the a achment piece over the cylinder onto the front frame as shown in
Figure 5.
5. Then place the washers (5) between the a achment piece (1) and the cylinder
(2) as shown in Figures 6 and 7. Then re-insert the bolt (3) through the
a achment piece and the cylinder.
6. Next, fi t the nut (4) onto the bolt and use a # 30 open-end spanner or a Bahco
hex key to screw it as  ghtly as possible. A blockage at the top (head) of the
bolt means that it will stay in place when screwing the nut on (you don’t have
to hold the bolt head in place).
5.
6.
2
1
3
4
5
5
5
7.
