Babboe Curve - Assembly Procedures; Step 1: Attaching Fenders and Steps

7
Step 1: A aching the fenders
1. Get the front frame and fenders out of the box and remove the protec ve
packaging and materials.
2. Carefully place the front frame onto the central axis of the frame.

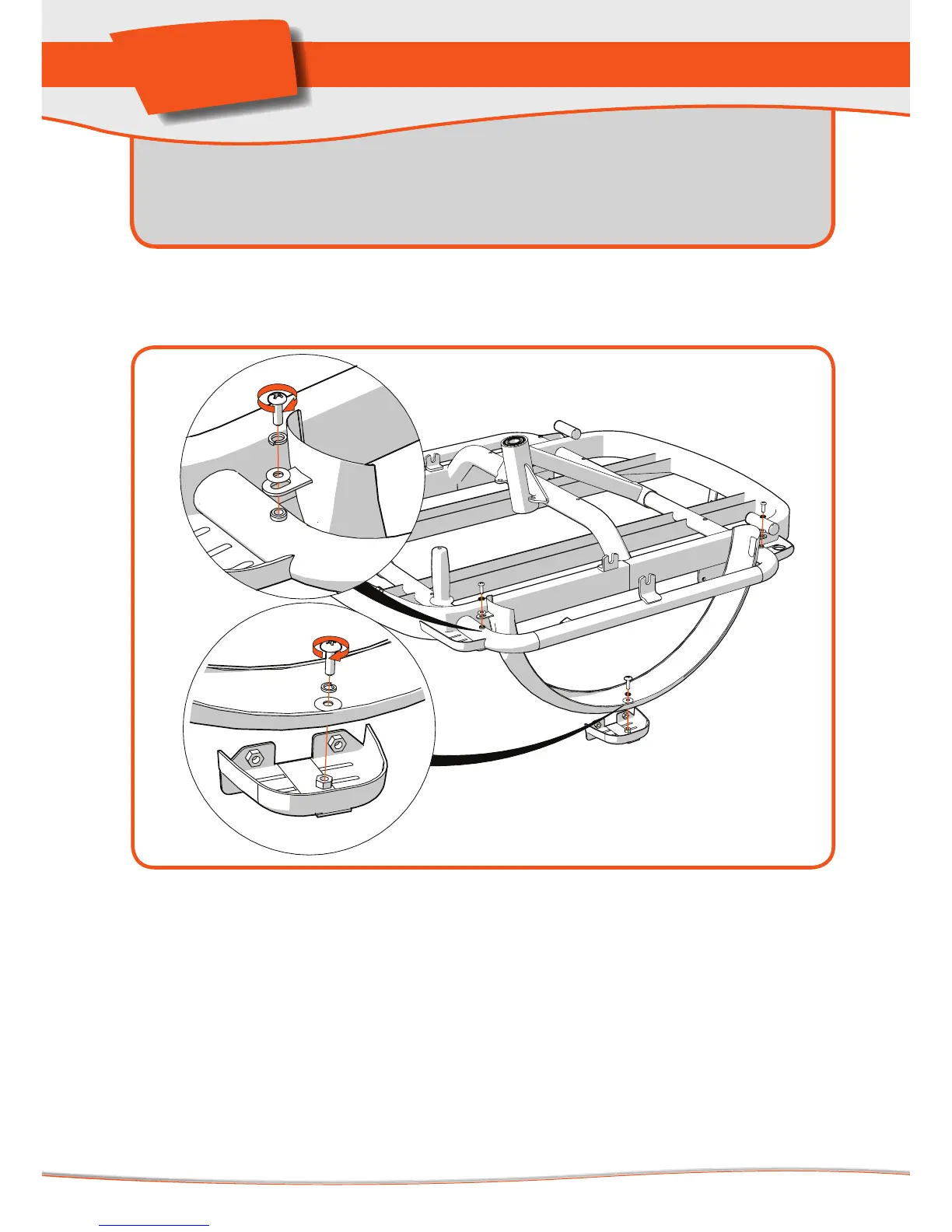

(See Figure 1)
3. A ach both fenders to the underside of the front frame, as illustrated in detail
picture A, using two M5 bolts, washers and spring washers from sachet A for
each fender.
4. A ach both steps to the tops of the fenders, as illustrated in detail picture B,
using the two M6 bolts, washers and spring washers from sachet A.
Parts needed:
- 2x fenders (Box I)
- 2x steps to be mounted on the fenders (Box I)
- Front frame (Box I) - Sachet A (4x M5 bolts, 4x M5 spring washers, 4x M5 washers,
2x M6 bolts, 2x M6 spring washers, 2x M6 washers)
Tools needed:
- Philips screwdriver
1.
A.
B.
