♦ Assembling
BE CAREFUL: because of the weight of the machine and its support post, any operations
of installation, assembly and adjustment must strictly be carried out by
2 people.

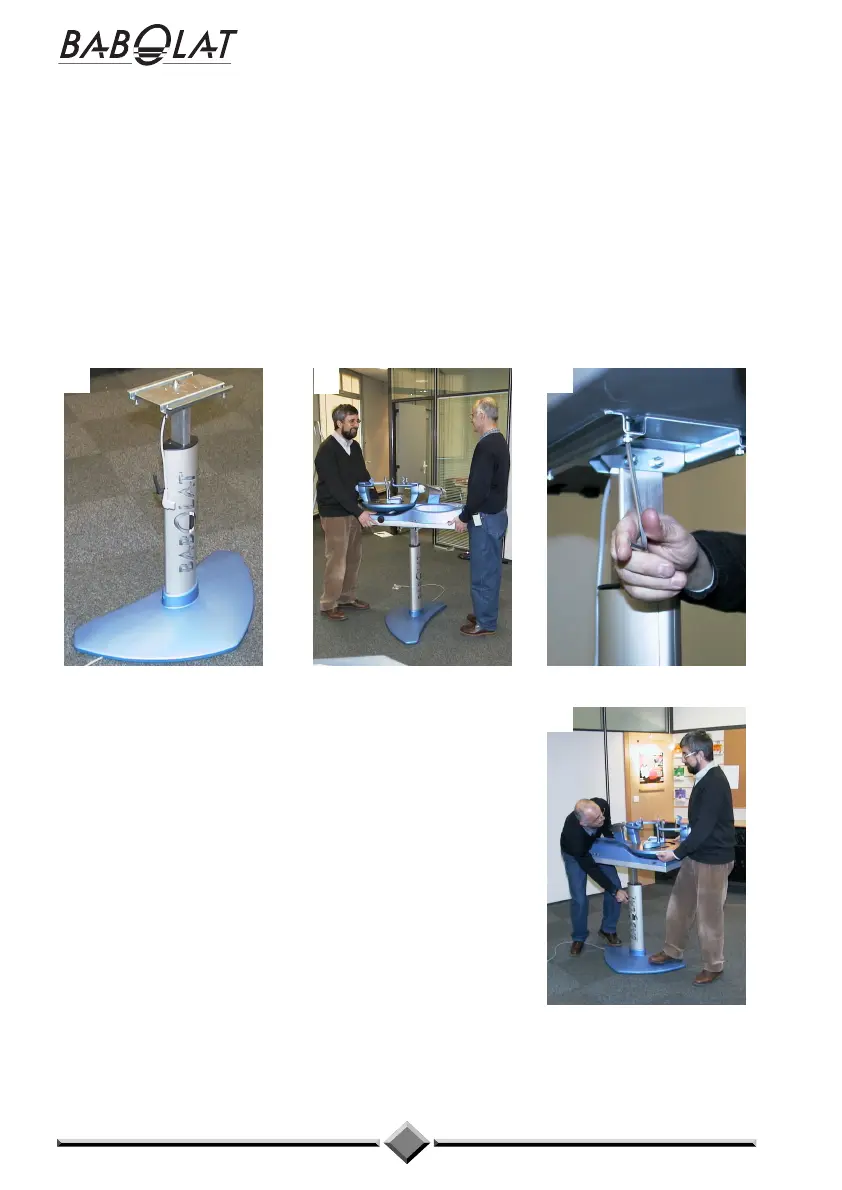

Place the support post in the required position (1).
Hold the stringing machine perpendicular to the fixing plate (2), making sure that the
interlocking elements are aligned. Place the machine on the plate and swivel it round by
90° so that the power cable is on the same side as the power socket.
Tighten the 4 fixing screws (3) with the size-5 Allen key.
To obtain the most comfortable and best-adapted
working height for stringing, loosen the handle on the
support post whilst holding up the machine (4). Move the
machine up or down until the required height is obtained
and then lock the handle again.
NB: the handle lever can be repositioned. Release it by
pulling, then move it to the required position.
1
2
3
4
10
