Baby Lock evolve BLE8W - Machine Components Overview

O
V
E
R
V
I
E
W
5

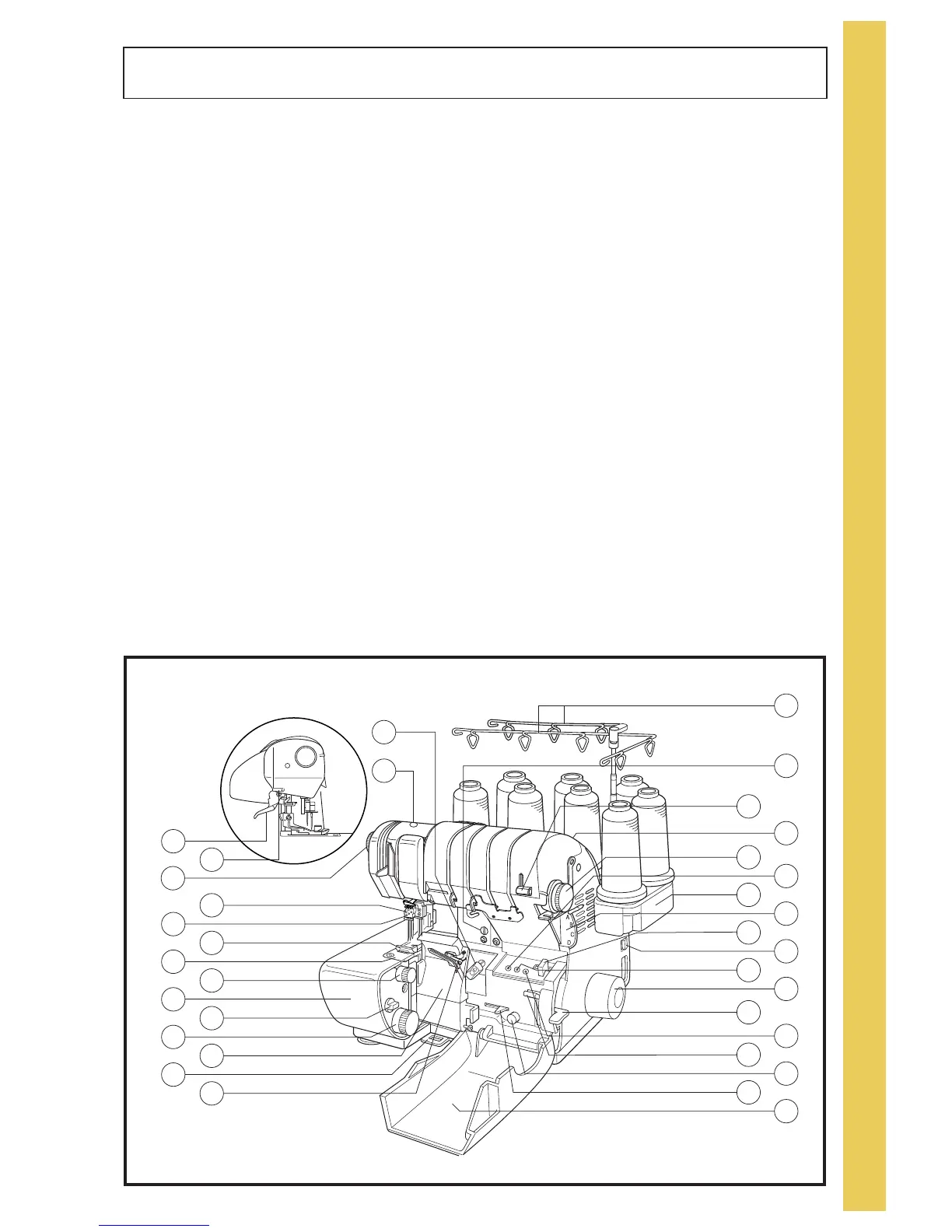

Overview of the evolve
3
4
1
2
31
33
34
30
28
26
24
22
20
18
29
27
25
23
21
19
17
5
7
9
11
13
6
8
10
12
14
16
15
32
1. Upper looper positioning lever 19. Machine lock button
2. Presser foot adjusting screw 20. Looper threading lever
3. Presser foot thread release lever* 21. Chain looper threading port
4. Thread cutter 22. Differential feed adjusting lever
5. Chain/cover stitch needle tension dial 23. Handwheel
6. Needle height viewing area 24. Lower looper threading port
7. Needle clamp screws 25. Power switch
8. Snap-on presser foot 26. Looper threader selector
9. Needle plate 27. Overlock stitch selector
10. Stitch width adjusting dial 28. Accessory compartment & spool stand
11. Side cover 29. Upper looper threading port
12. Cutting blade lock switch 30. Chain/cover stitch looper tension dial
13. Stitch length/rolled hem adjusting dial 31. Carrying handle
14. Cutting blade cover 32. Wave Selector Lever
15. Needle drop drawer 33. Upper & Lower looper thread
16. Subsidiary looper fine-tuning screw
17. Front cover 34. Telescopic thread guide
18. Machine lock button release lever and antenna
* Raising the presser foot releases all threads.
