RIGGING
1. Never assemble the unit before lifting, as the lifting devices
provided are not designed to support the weight of the entire
assembled unit.
2. Spreader bars of the full width of the section must be used
between the lifting cables to prevent damage to the section.
For extended lifts or where hazards exist, it is recommended to
use the lifting devices in conjunction with safety slings placed
under the unit.
3. Lifting devices have been provided on all sections. The tables
below give the preferred method for rigging each section of a
unit.
1. Spreader Bar; 2. Lifting Device; 3. Safety Slings; 4. Spreader Bar Length.
1
Discharge accessories can be: positive closure damper, tapered
discharge hood, sound attenuation.
1
Discharge accessories can be: positive closure damper, tapered
discharge hood, sound attenuation.
2
For asymmetrical load distribution (with external piping) shorten the
slings at one end so the casing is approximately horizontal.
1
Discharge accessories can be: positive closure damper, tapered
discharge hood, sound attenuation.
2
For asymmetrical load distribution (with external piping) shorten the
slings at one end so the casing is approximately horizontal.
General Notes
COOLING TOWERS VTL
Model N°
Minimum
"H
(mm)
Spreader
Bar
Length
(mm)
Discharge
Accessory
1
Minimum “H”
VTL-039 to VTL-079 3100 1250 3100
VTL-076 to VTL-095 4300 1250 4300
VTL-089 to VTL-137 5000 1250 5000
VTL-139 to VTL-227 4300 2450 4300
VTL-225 to VTL-272 5000 2450 5000
Table 1: Rigging method VTL and discharge accessory
CLOSED CIRCUIT COOLING TOWERS VFL
Model N°
Minimum
"H
(mm)
Spreader
Bar
Length
(mm)
Discharge
Accessory
1
Minimum “H”
2
VFL-241 to VFL-243 3100 1250 3100
VFL-361 to VFL-383 3100 1250 3100
Table 2: Rigging method VFL and discharge accessory

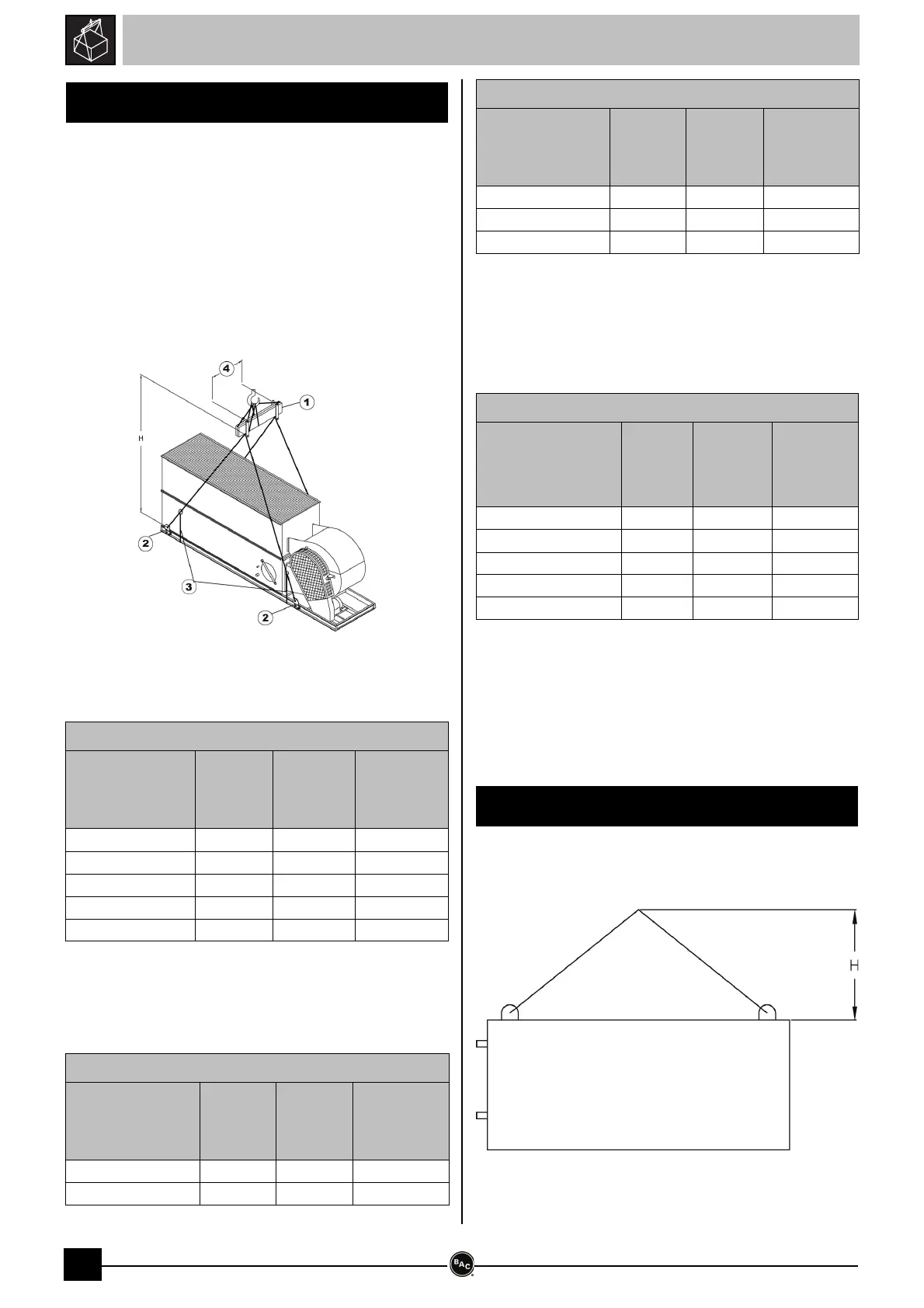

Figure 1: Rigging method VL units
VFL-481 to VFL-484 3700 1250 3700
VFL-721 to VFL-724 3100 2450 3100
VFL-961 to VFL-964 3700 2450 3700
EVAPORATIVE CONDENSERS VCL
Model N°
Minimum
"H
(mm)
Spreader
Bar
Length
(mm)
Discharge
Accessory
1
Minimum
“H”
2
VCL-042 to VCL-079 3100 1250 3100
VCL-084 to VCL-133 3100 1250 3100
VCL-131 to VCL-159 3700 1250 3700
VCL-167 to VCL-258 3100 2450 3100
VCL-239 to VCL-321 3700 2450 3700
Table 3: Rigging method VCL and discharge accessory
Rigging Method Discharge Accessories
CLOSED CIRCUIT COOLING TOWERS VFL
Model N°
Minimum
"H
(mm)
Spreader
Bar
Length
(mm)
Discharge
Accessory
1
Minimum “H”
2
Table 2: Rigging method VFL and discharge accessory
