Bacharach Leakator 10 User Manual

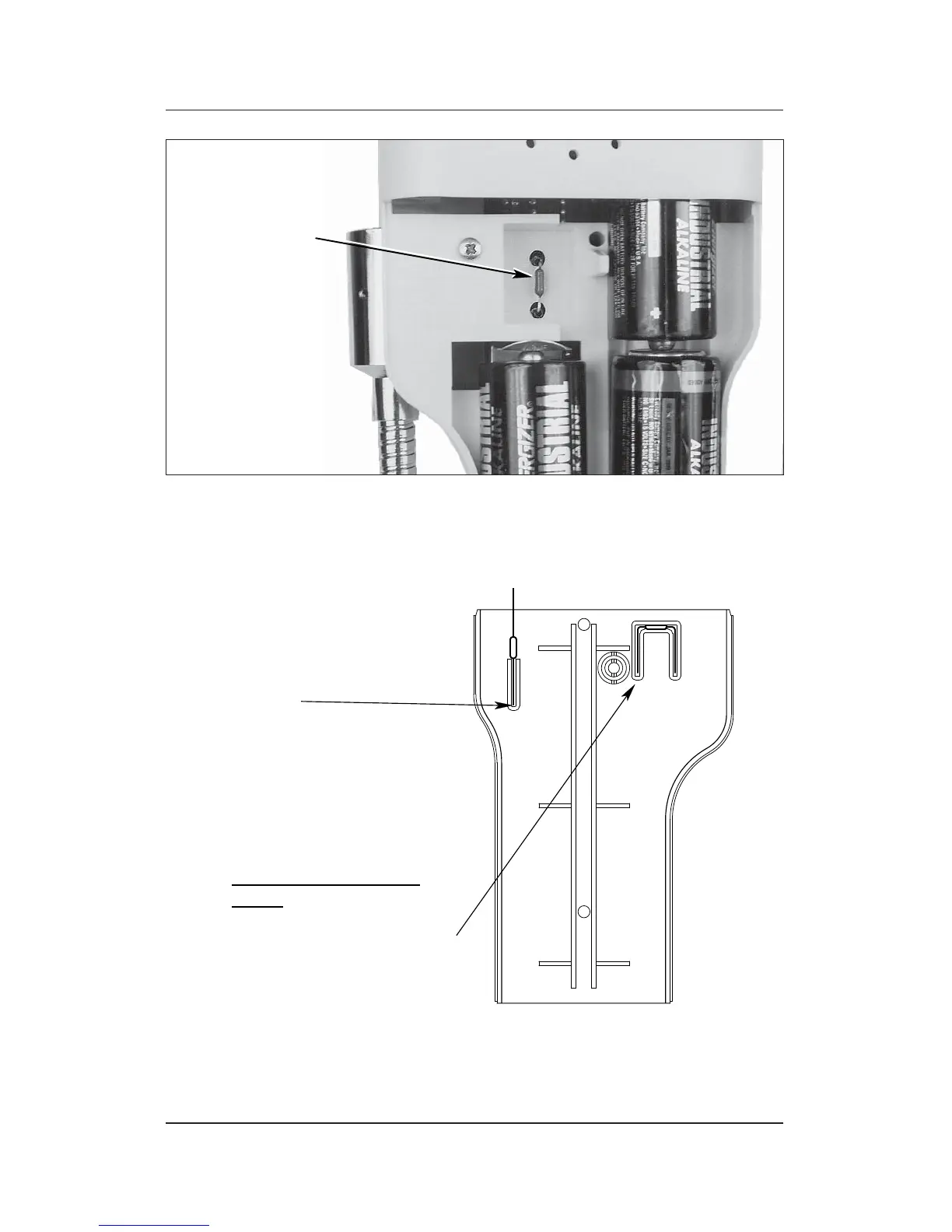

Figure 6. Cutting and Bending Resistor Leads using Forms
Molded into Battery Cover
Maintenance
11
Leakator 10
Instruction 0019-9167
Figure 5. Location of Matching Resistor
FORM
CLIP
(2 ENDS)
CAUTION: Use Only C-Size 1.5 x 5 NEDA 14A or Equivalent
Cut Matching Resistor
leads to correct length by
inserting each lead into
form as shown and cutting
here.
NOTE:
The plastic clip
guide length represents the
minimum lead length. If the
resistor leads are cut too
short, the instrument may
not function.
Optimum lead length is
11/16".
After cutting resistor leads,
use this form to bend leads
as shown.
MATCHING
RESISTOR
