INSTALLATION
1.Identify parts packed in carton against the parts list. Remove all protective materials and
set parts on a flat, non-abrasive surface.

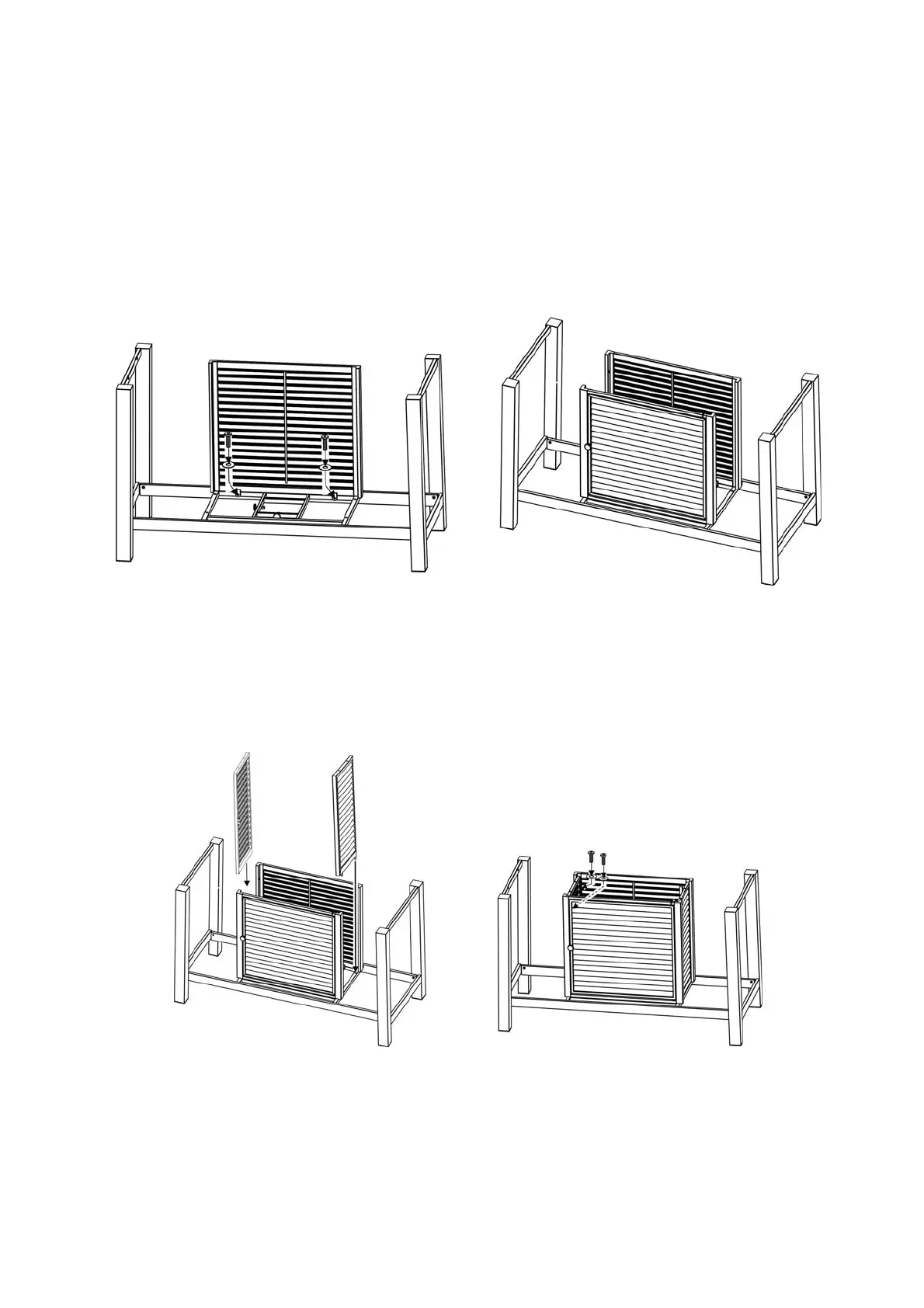

2.Attach the back panel to the base frame by using two 1/4"x25 mm bolts and Ø6.5x1.0 mm
washers as shown in Figure 2.Guide bolts through holes in back panel, into pre-drilled holes
in the base frame. Hand tighten only. Repeat for the door panel.
Figure 2
3. Insert a side panel to the base frame as shown in Figure 3a. Attach the side panel to the
back panel with door panel by using two 1/4"x35 mm bolts and Ø6.5x1.0 mm washers as
shown in Figure 3b. Guide the bolts through the holes in the side panel, into the pre-drilled
holes in the back with door panel. Hand tighten only. Repeat for other side panel.
Figure 3a Figure 3b
4. Carefully place the firepan/burner assembly and top support inside the base frame, resting
on the side panels as shown in Figure 4a. Secure them by using four 1/4"x40 mm bolts and
four 1/4"x60 mm bolts as shown in Figure 4b. Add a Ø6.5x1.0 mm washer to each bolt. Hand
tighten only.
