Backyard Discovery 1605022D - Page 23

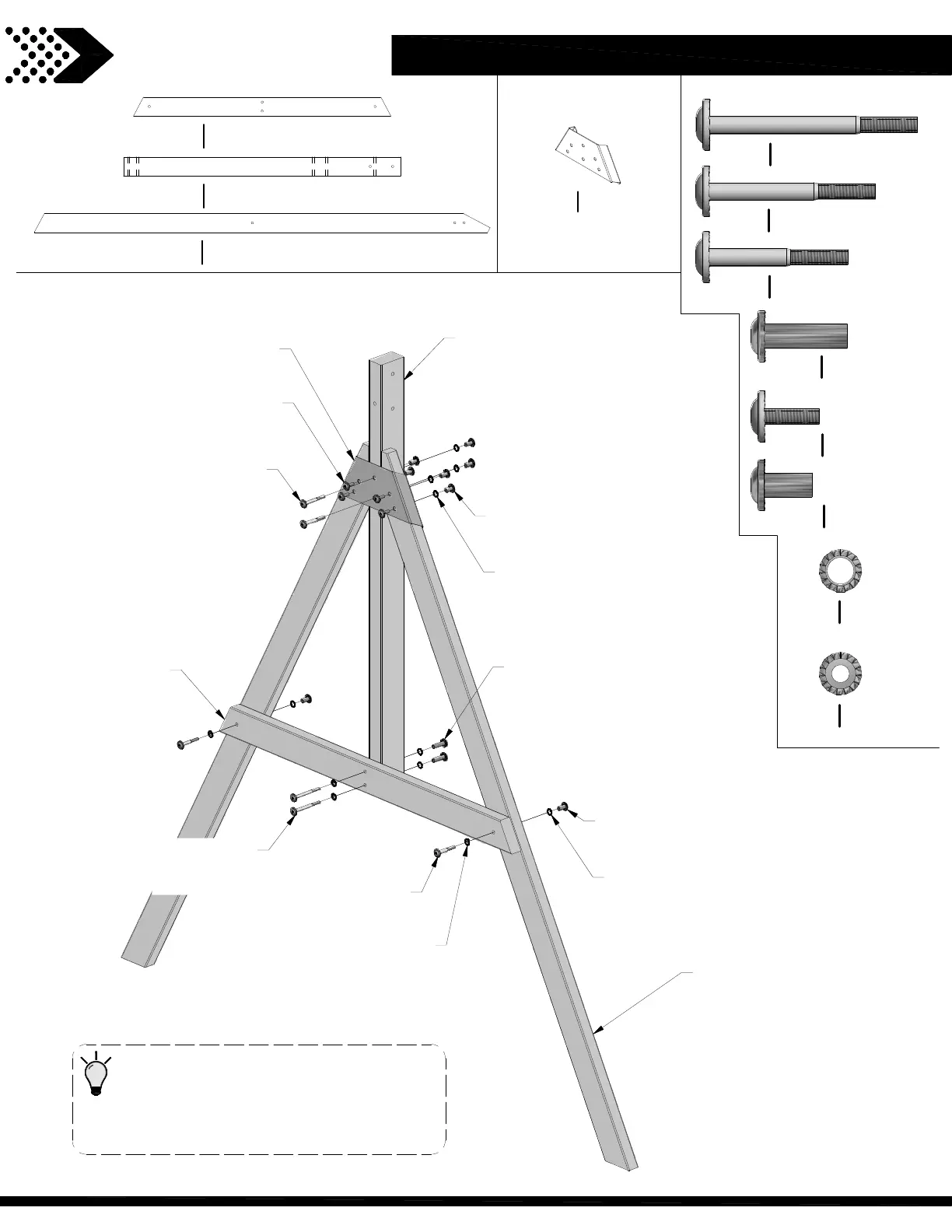

STEP 2
TIP:
SWING BEAM
E77 (x2)
ANGLE BRACE
W71 (x1)
SWING BEAM SUPPORT
E50 (x1)
END SUPPORT
031 (x6)
WASHER - 12x19
005 (x6)
NUT BARREL - 7/8"
016 (x2)
BOLT - 3"
008 (x4)
BOLT - 5/16x1"
031 (x4)
WASHER - 12x19
005 (x2)
NUT BARREL - 7/8"
030 (x4)
WASHER - 8x19
014 (x2)
BOLT - 2 1/2"
019 (x2)
BOLT - 3 3/4"
006 (x2)
NUT BARREL - 1 1/2"
174 (x1)
A-FRAME BRACKET
NUT BARREL
WH
5/16x7/8
(8)
H100005
A-FRAME
BRACKET
(1)
A4M01174
BOLT WH
5/16x3 3/4
(2)
H100019
BOLT WH
5/16x3
(2)
H100016
BOLT WH
5/16x2 1/2
(2)
H100014
NUT BARREL
WH
5/16x1 1/2
(2)
H100006
BOLT WH
5/16x1
(4)
H100008
WASHER
LOCK EXT
12x19
(10)
H100031
WASHER
LOCK EXT
8x19
(4)
H100030
END SUPPORT - W4L13843
1 3/8"x3 3/8"x46" (36x86x1168)
E50
(1)
SWING BEAM SUPPORT - W4L13844
2"x3 3/8"x49 5/8" (50x86x1260)
W71
(1)
ANGLE BRACE - W4L13842
1 3/8"x3 3/8"x81 3/8" (36x86x2068)
E77
(2)
LEAVE BOTTOM BOLTED CONNECTIONS
LOOSE
. THEN SLIDE A-FRAME BRACKET
DOWN FROM THE TOP. THEN TIGHTEN ALL
BOLTED CONNECTIONS.
23
