TOP
BOTTOM
TIP: PREBENDING THE ENDS WILL EASE ASSEMBLY.
USE M77 SLIDE BED SUPPORT AS A
TEMPLATE FOR DRILLING BOTTOM
HOLE PATTERN IN SLIDE BED. BE SURE
TO PLACE SLIDE BRACE UP 1/2" FROM
BOTTOM EDGE OF SLIDE BED BEFORE
MARKING HOLE PATTERN. USE A 3/8"
DRILL BIT TO DRILL HOLE PATTERN.
M77 - SLIDE BRACE - W4L04711
5/8"x3 3/8"x14 1/4" (16x86x362)
BOLT WH
5/16x1/2
(2)

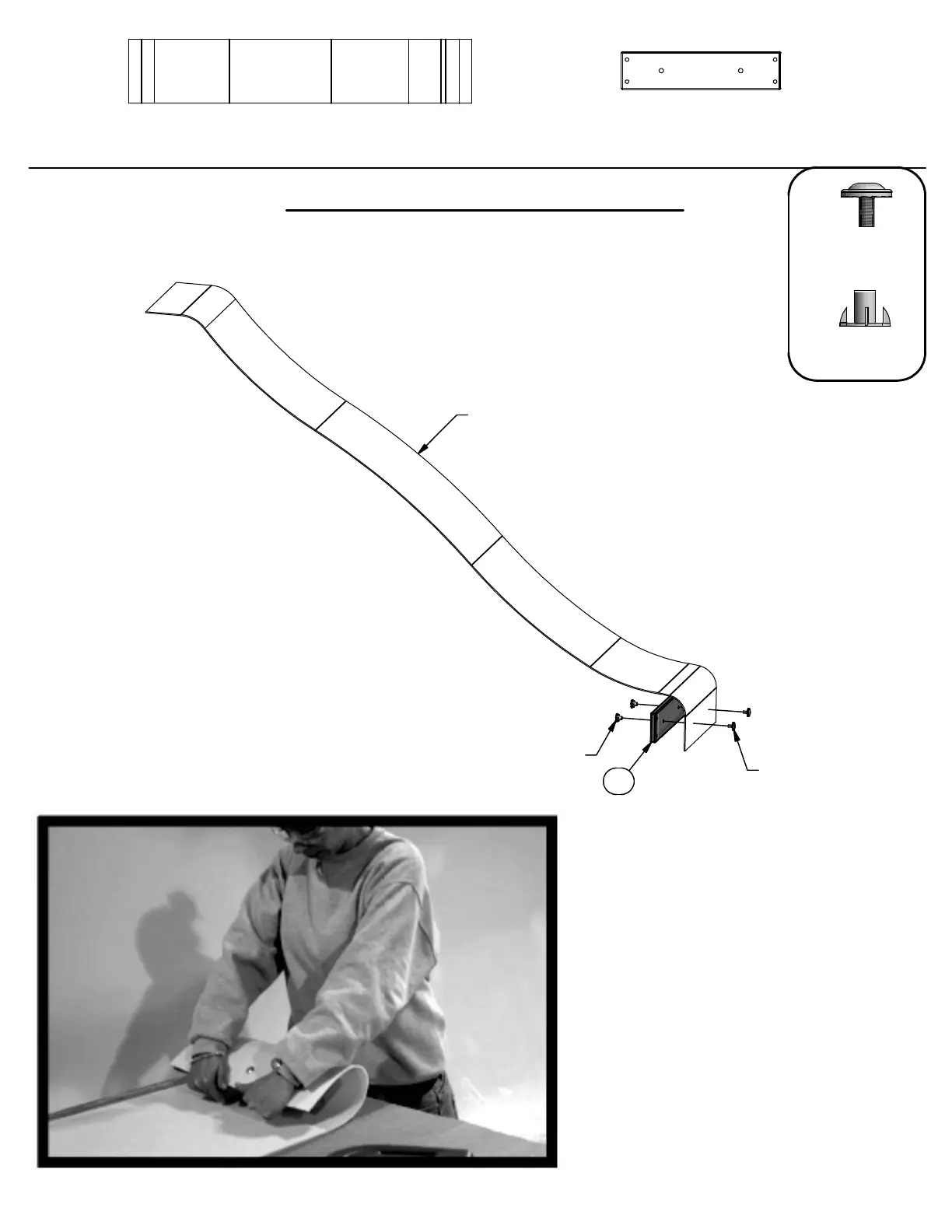

STEP 1
SPEEDY SLIDE ASSEMBLY
- SLIDE BED DK.BLUE - A6P00358
T-NUT 5/16
(2)
T-NUT 5/16
(2 PLCS)
BOLT WH 5/16x1/2
(2 PLCS)
M77
SLIDE BED
