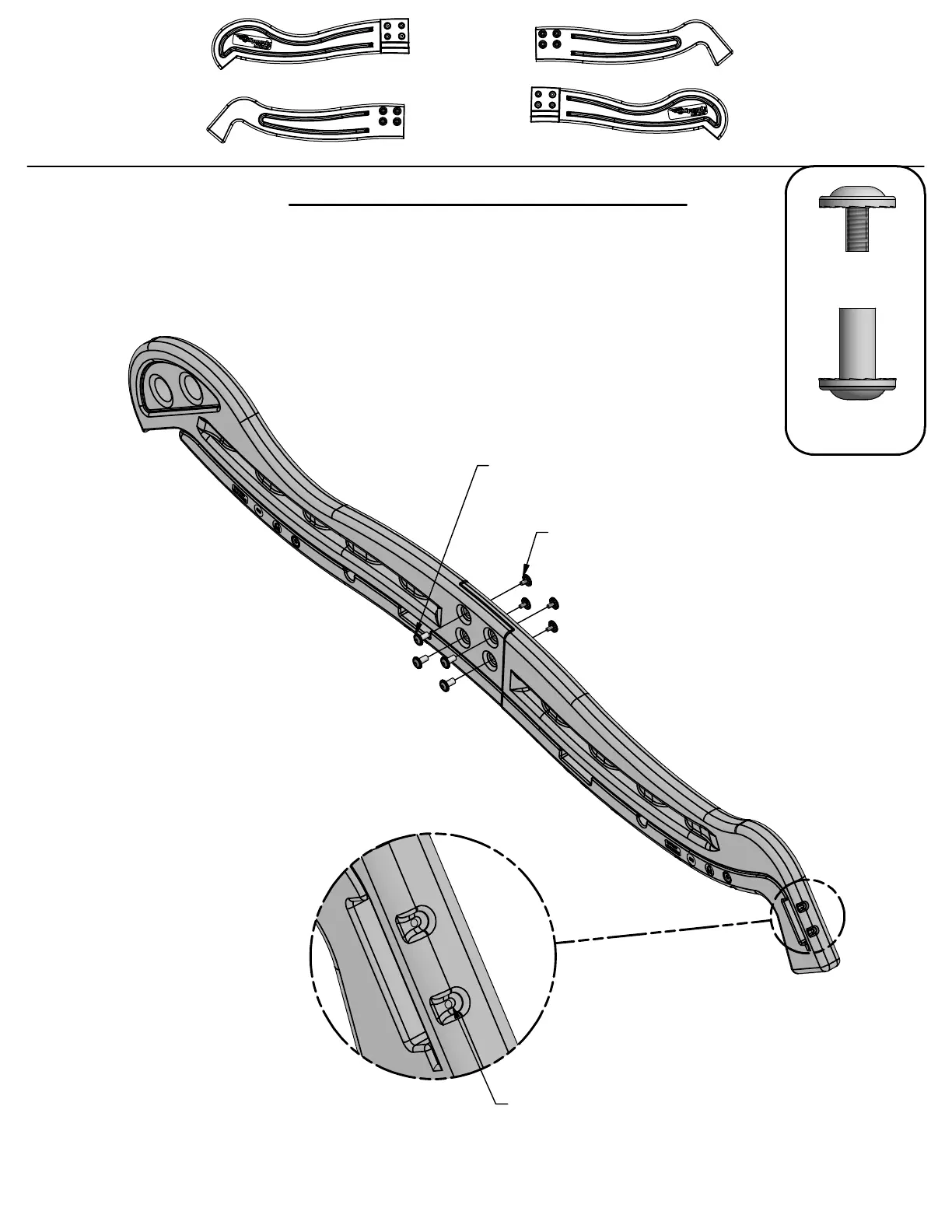

STEP 2
● REPEAT ON OTHER SIDE, MAKING A LEFT AND RIGHT ASSEMBLY.
SPEEDY SLIDE ASSEMBLY
- SLIDE RAIL TOP LEFT - A6P00176
(1)
- SLIDE RAIL BOTTOM RIGHT - A6P00179
(1)
- SLIDE RAIL BOTTOM LEFT - A6P00177
(1)
- SLIDE RAIL TOP RIGHT - A6P00178
(1)
USING A 1/8" DRILL BIT,
PILOT DRILL ALL SCREW DIMPLES
ALONG THE BOTTOM AND END
EDGE OF THE SLIDE RAILS.
BOLT WH
5/16x1/2
(8)
NUT BARREL
WH 5/16x7/8
(8)
NUT BARREL WH 5/16x7/8
(4 PLCS)
BOLT WH 5/16x1/2
(4 PLCS)
