M78 - CENTER SLIDE BRACE - W4L04712
5/8"x3 3/8"x14 1/4" (16x86x362)
(2)
SPEEDY SLIDE ASSEMBLY
STEP 3

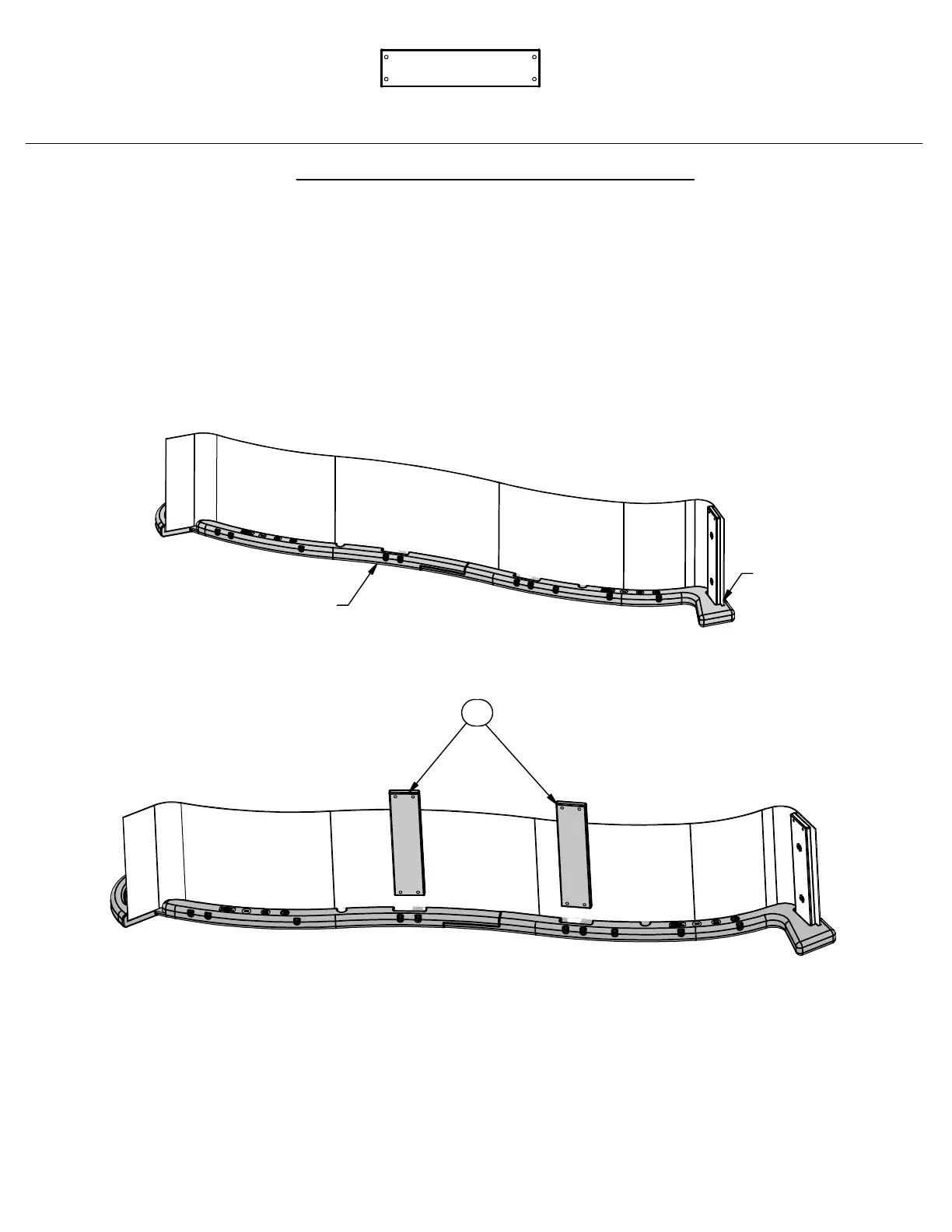

● PLACE (1) SLIDE RAIL ASSEMBLY ON A FLAT SURFACE AND BEGIN INSERTING SLIDE BED AT THE BOTTOM OF THE SLIDE RAIL (FIG. 1). HAVE A
HELPER BEND THE SLIDE BED TOWARDS THE TOP OF THE SLIDE AND INSERT THE BED INTO THE SLIDE CAVITY. MAKE SURE SLIDE BED IS
COMPLETELY DOWN IN THE SLIDE CAVITY.
● INSTALL THE (2) SLIDE SUPPORT BOARDS INTO THEIR RESPECTIVE PILOT LOCATIONS (FIG. 2).
(FIG. 1)
(FIG. 2)
M78
SLIDE RAIL ASSEMBLY
START HERE
To Next Page
