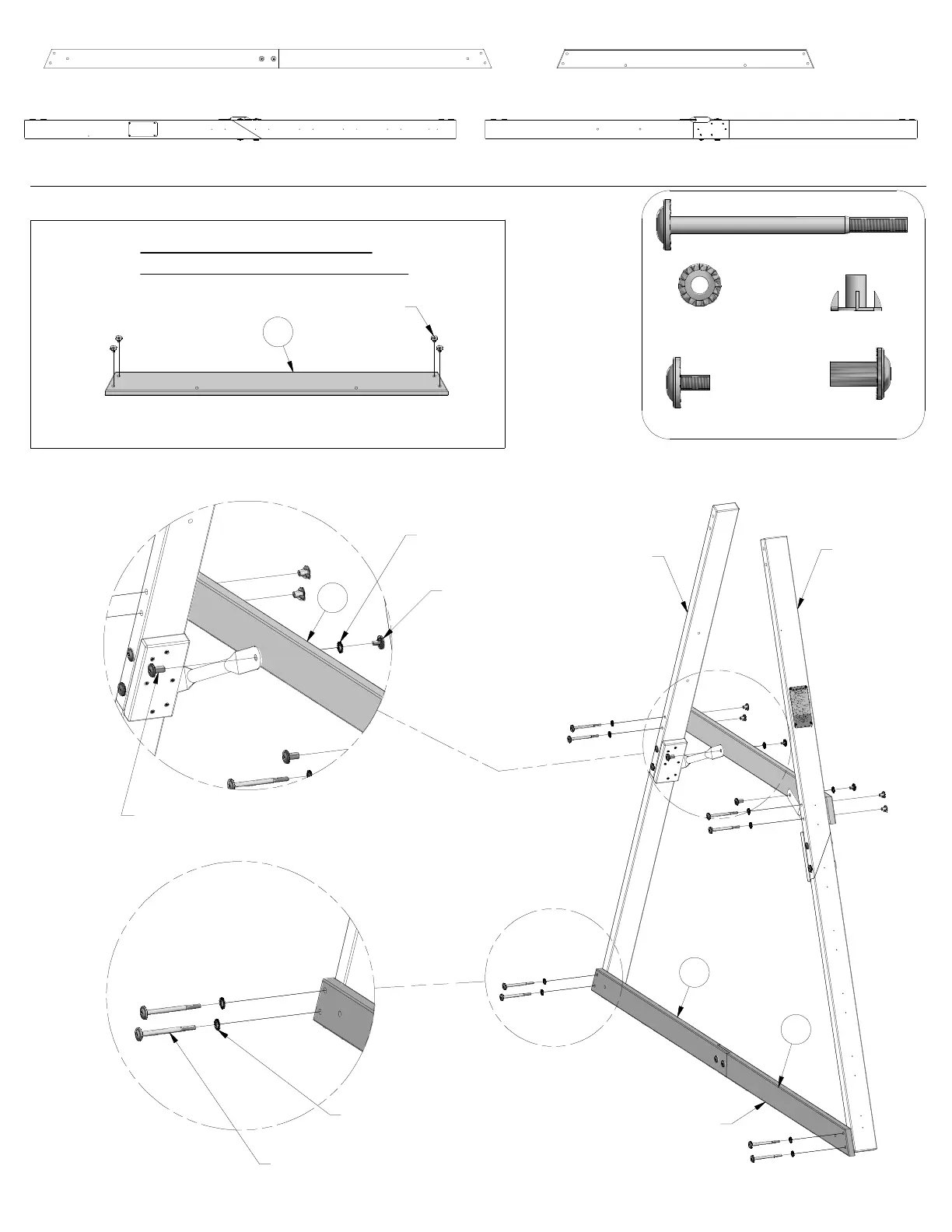

STEP 6
WASHER
LOCK EXT
8x19
(10)
T-NUT 5/16
(4)
BOLT WH
5/16x4-1/4
(8)
INSERT T-NUTS INTO 'H2'
BOARD BEFORE ASSEMBLY.
(1) LEFT SIDE GROUND BOARD ASSEMBLY
LEFT SIDE GROUND
BOARD ASSEMBLY
NUT BARREL WH 5/16x7/8
(2 PLCS)
WASHER LOCK EXT 8x19
(2 PLCS)
BOLT WH 5/16x1/2
(2 PLCS)
BOLT WH
5/16x1/2
(2)
NUT BARREL
WH 5/16x7/8
(2)
BOLT WH 5/16x4-1/4
(8 PLCS)
WASHER LOCK EXT 8x19
(8 PLCS)
H2 - FLOOR RAIL - W4L12103
1"x3 3/8"x46" (24x86x1168)
(1)
H2
T-NUT 5/16
(4 PLCS)
FRONT
LEFT
UPRIGHT
ASSEMBLY
BACK
LEFT
UPRIGHT
ASSEMBLY
(1) FRONT LEFT UPRIGHT ASSEMBLY
(1) BACK LEFT UPRIGHT ASSEMBLY
H1
H1
H2
