Backyard Discovery 1905016B - Page 46

INSERT T-NUTS INTO 'P2'
BOARD BEFORE ASSEMBLY.
SCREW PFH
8x2 1/2
(2)
WASHER
LOCK EXT
8x19
(2)
BOLT WH
5/16x2
(2)
T-NUT 5/16
(2)

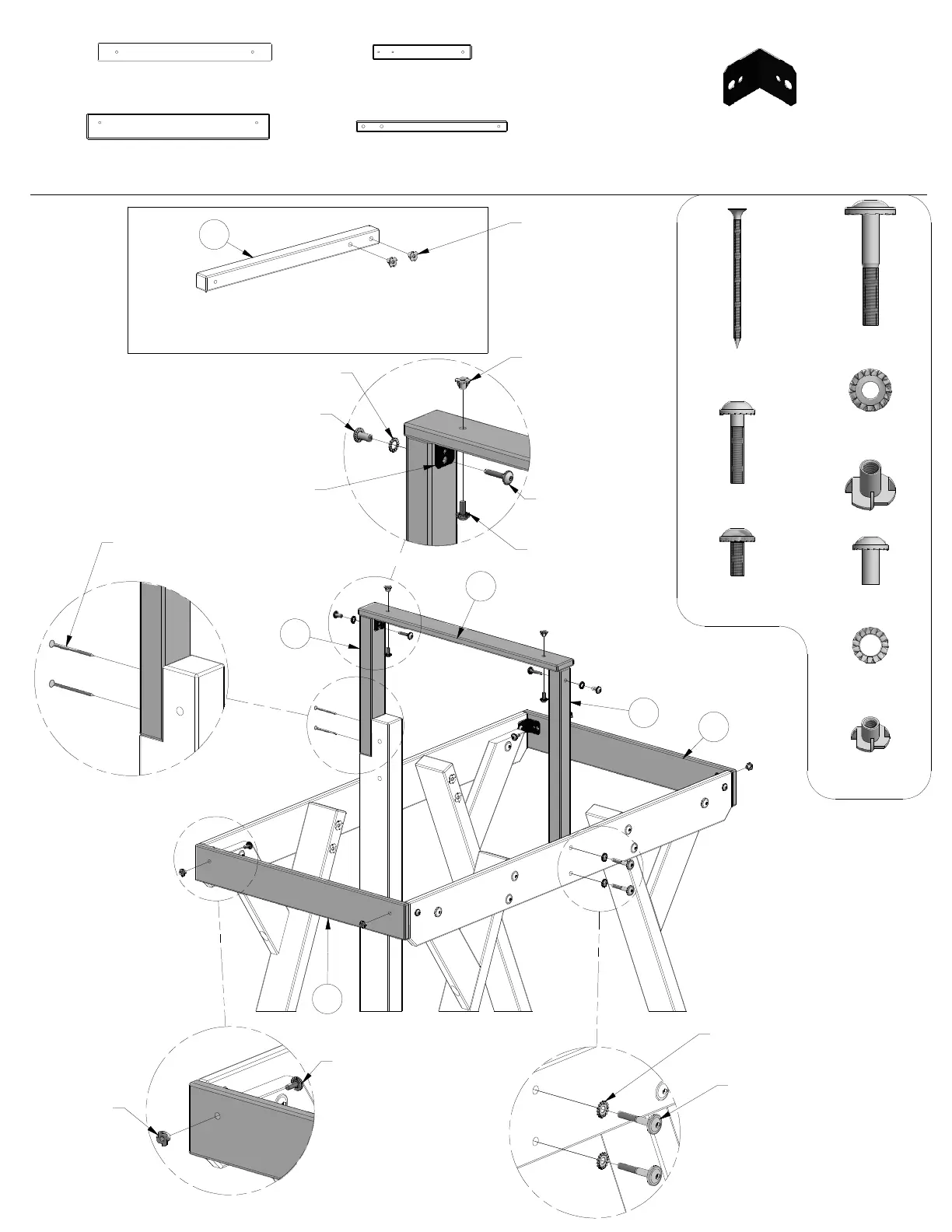

STEP 15
N3 - TARP SUPPORT - W4L15018
5/8"x2 3/8"x23 1/4" (16x60x590)
(1)
F1 - TARP SUPPORT - W4L15014
1 3/8"x2"x13 1/4" (36x50x335)
(1)
M4 - TARP BOARD - W4L15013
5/8" x 3 3/8" x 24 1/2" (16 x 86 x 622)
(2)
P2 - TARP SUPPORT - W4L15017
1 3/8"x1 3/8"x20 1/4" (36x36x514)
(1)
F1
N3
M4
M4
SCREW PFH 8x2 1/2
(2 PLCS)
T-NUT 5/16
(2 PLCS)
BOLT WH 5/16x2
(2 PLCS)
WASHER LOCK EXT 8x19
(2 PLCS)
P2
P2
T-NUT 1/4
(2 PLCS)
BOLT WH 1/4x1-1/4
(2 PLCS)
BOLT WH 1/4x5/8
(2 PLCS)
WASHER LOCK EXT 8x15
(2 PLCS)
NUT BARREL WH 1/4x5/8
(2 PLCS)
90° L-BRACKET - BLK
(2 PLCS)
- 90° L-BRACKET - BLK - A4M00555
(2)
BOLT WH 1/4x5/8
(4 PLCS)
T-NUT 1/4
(4 PLCS)
NUT BARREL
WH 1/4x5/8
(2)
WASHER
LOCK EXT
8x15
(2)
BOLT WH
1/4x1-1/4
(2)
BOLT WH
1/4x5/8
(6)
T-NUT 1/4
(6)
46
