METAL SPACER
(4)
A4M01205
RIDGE PEAK CAP
(1)
A4M01204

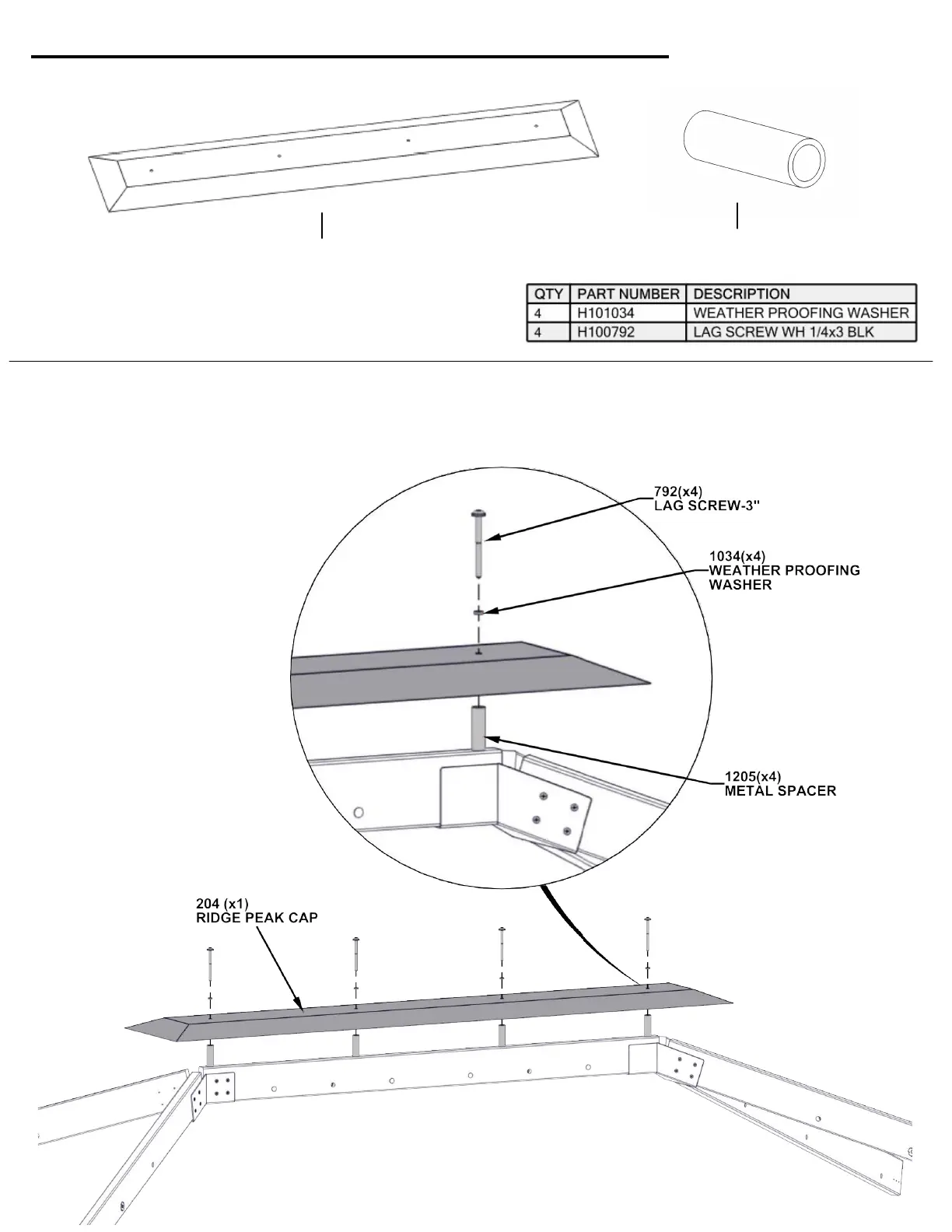

STEP 11 - ROOF SUPPORT ASSEMBLY
WARNING: GLOVES ARE RECOMMENDED WHEN HANDLING STEEL ROOF PIECES
TIPS:
• REMOVE PROTECTIVE BLUE FILM BEFORE ASSEMBLY
• ALIGN RIDGE PEAK CAP AND METAL SPACER WITH PILOT HOLES BEFORE INSERTING LAG SCREWS
