Backyard Discovery 2106536D - Page 41

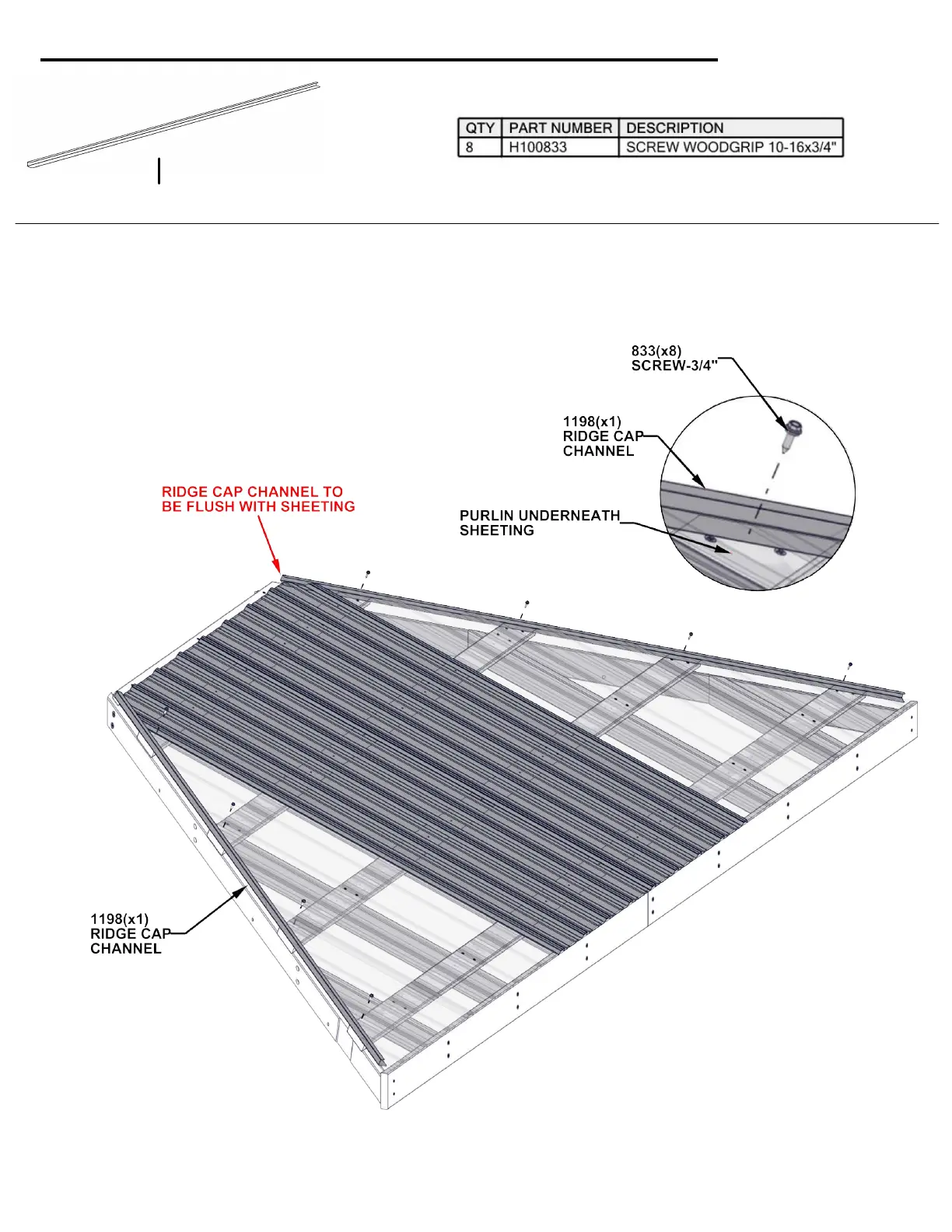

RIDGE CAP CHANNEL
(2)
A4M01198
STEP 20 - 14FT ROOF PANEL ASSEMBLY
TIPS:
• POSITION THE RIDGE CAP CHANNEL OVER THE EDGE OF THE ROOF
PANELS WITH THE WIDER SIDE OF THE CHANNEL ON THE BOTTOM.
• MAKE SURE THE PANELS ARE FULLY SEATED INTO THE CHANNEL.
• FLUSH THE TOP OF THE CHANNEL WITH THE TOP OF THE METAL
PANELS.
41
