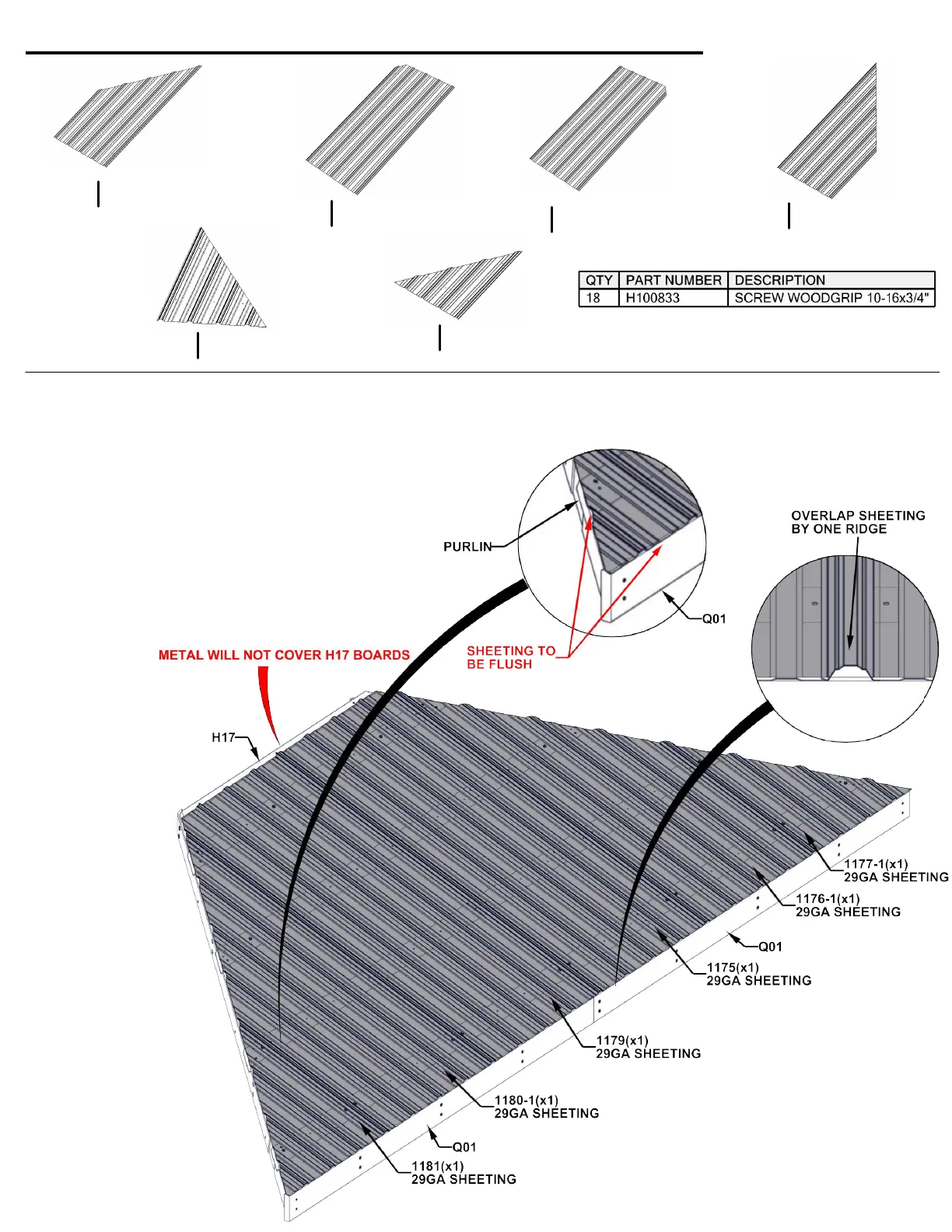

STEP 19 - 14FT ROOF PANEL ASSEMBLY
29 GA STEEL SHEETING
(1)
A4M01180-1
29 GA STEEL SHEETING
(1)
29 GA STEEL SHEETING
(1)
A4M01179
29 GA STEEL SHEETING
(1)
A4M01176-1
A4M0118
(1)
1-1
29 GA STEEL SHEETING
A4M01177-1
29 GA STEEL SHEETING
(1)
A4M01175
A4M01177-1
29 GA STEEL SHEETING
(1)
TIPS:
• REMOVE PROTECTIVE BLUE FILM
• STARTING IN THE CENTER, PLACE PANELS AS SHOWN BELOW.
• OVERLAP PANELS BY ONE RIDGE.
• PANELS SHOULD BE FLUSH WITH PURLIN ENDS AND Q01 ROOF JOIST.
• ONCE SHEETING IS IN PLACE, IT IS RECOMMENDED TO ADD H100833
SCREWS IN THE MIDDLE OF SHEETS TO HOLD SHEETING FOR THE
NEXT STEP.
WARNING: GLOVES ARE RECOMMENDED
WHEN HANDLING STEEL ROOF PIECES
