TIPS:
• ALIGN PURLIN PILOT HOLES WITH RAFTER PILOT HOLES
•
ATTACH
SCREWS
FROM
THE
CENTER
AND
WORK
OUTWARD
• H01 AND
HO9
BOARDS DO NOT
HA
VE PILOT HOLES FOR
OUTSIDE EDGE SCREWS.
• USING
THE
PURLINS AS A GUIDE AND A 1/8" DRILL BIT, DRILL
PILOT HOLES INTO
H01
/H09 BOARDS.
200 (x3)
SCREW
- 1 1 /2"
Q
ty
PART NUMBER
56
H100391
3 H100200
H17 PURLIN
WILL
NOT
OVERHANG
IF
PURLINS OVERHANG
MORE
THAN 5/8",
CUT
DOWN TO
5/8"
DESCRIPTION
SCREW
PFH 8 X 2 BLK
SCR
EW
PFH 8 X 1 1 /2 BLK

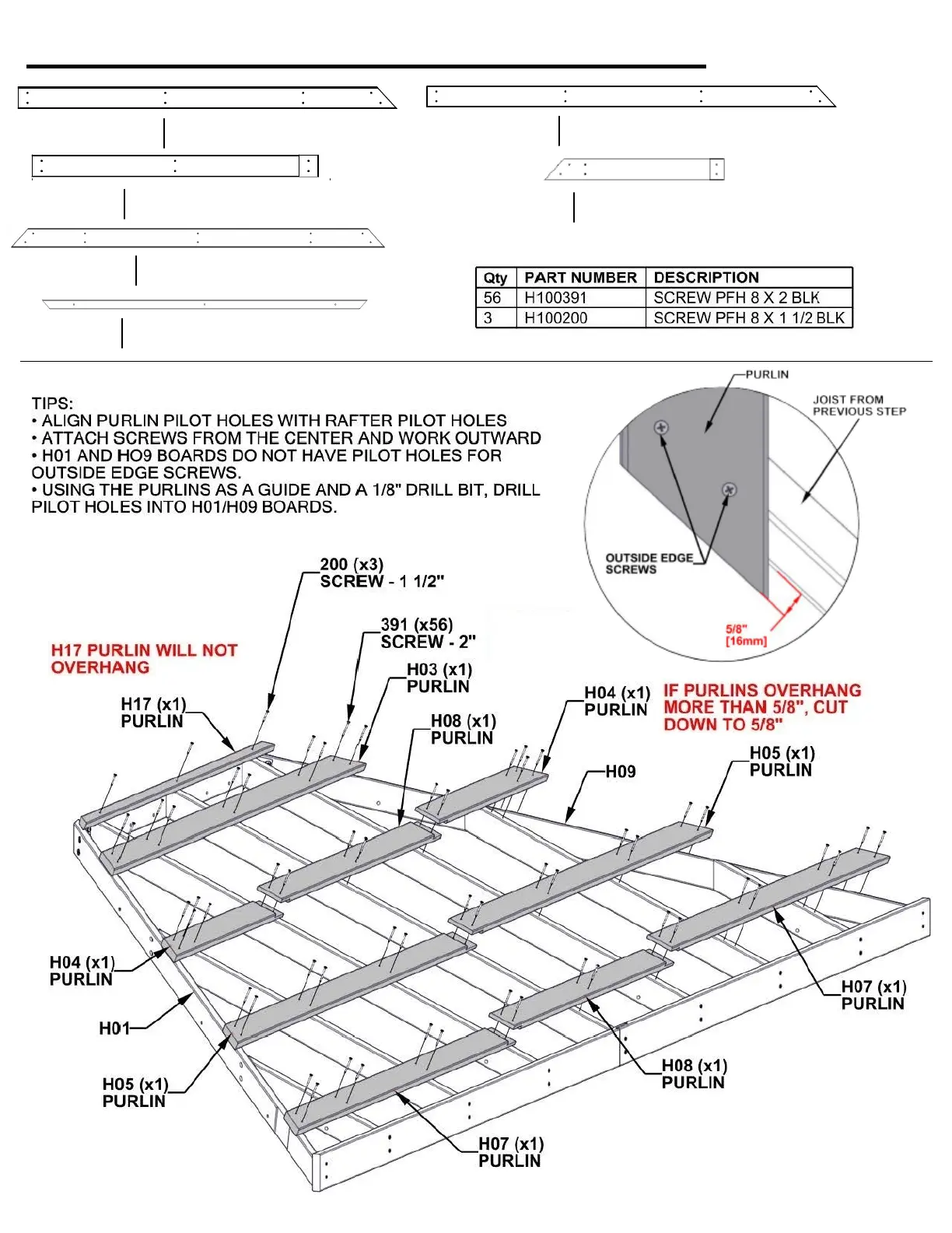

STEP 18 - 14FT ROOF PANEL ASSEMBLY
PURLIN-W4L16292
1"
x3 3/8"x59
7/16
" (24x86x15
09
)
H07
(
2
)
PURLIN-W4L16293
1"x
3 3/8"x
43 11/16
" (24x86x1
110
)
H08
(
2
)
PURLIN-W4L16291
1"
x3 3/8"x65 1/2" (24x86x1664)
H05
(2)
PURLIN - W4L16281
1"x3 3/8"x68 3/8" (24x86x1736)
H03
(1)
PURLIN - W4L16921
1"x3 3/8"x29 5/8" (24x86x752)
H04
(2)
PURLIN - W4L16289
1"x1 3/8"x51 3/8" (24x34x1306)
H17
(1)
To Next Page
