Backyard Discovery 2106536D - Page 38

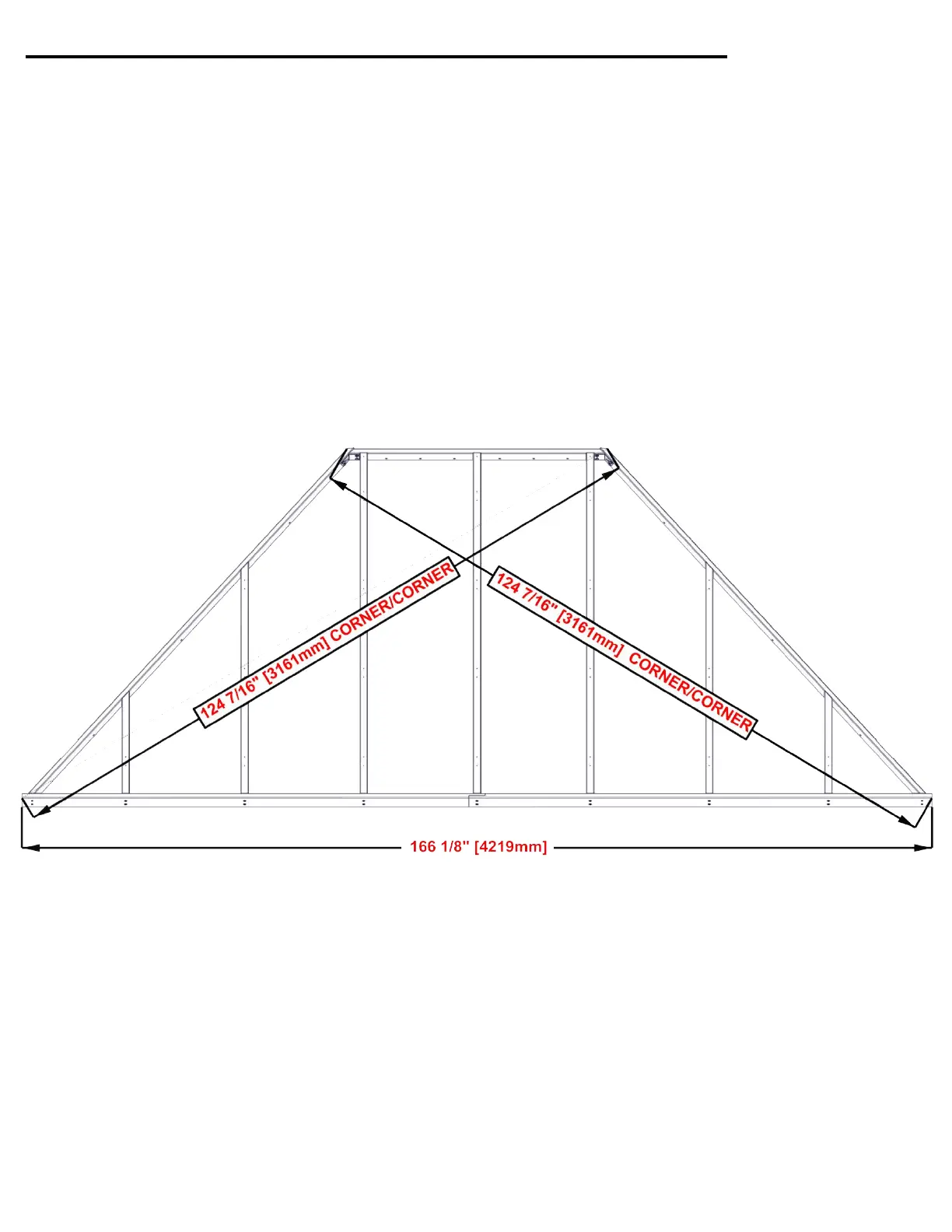

STEP 17C - 14FT ROOF PANEL ASSEMBLY
CRITICAL:
• SQUARE UNIT BEFORE PROCEEDING TO NEXT STEPS.
• THE BELOW DIMENSIONS ARE CRITICAL TO THE FINAL ROOF ASSEMBLY.
• MEASUREMENTS SHOULD BE WITHIN +/- 1/4".
• MEASUREMENTS OUTSIDE OF TOLERANCE WILL LEAD TO THE INABILITY TO
ASSEMBLE THE ROOF.
TIP:
• LOOSEN HARDWARE TO ADJUST FOR SQUARING IF NEEDED
38
