Backyard Discovery 2106536D - Page 37

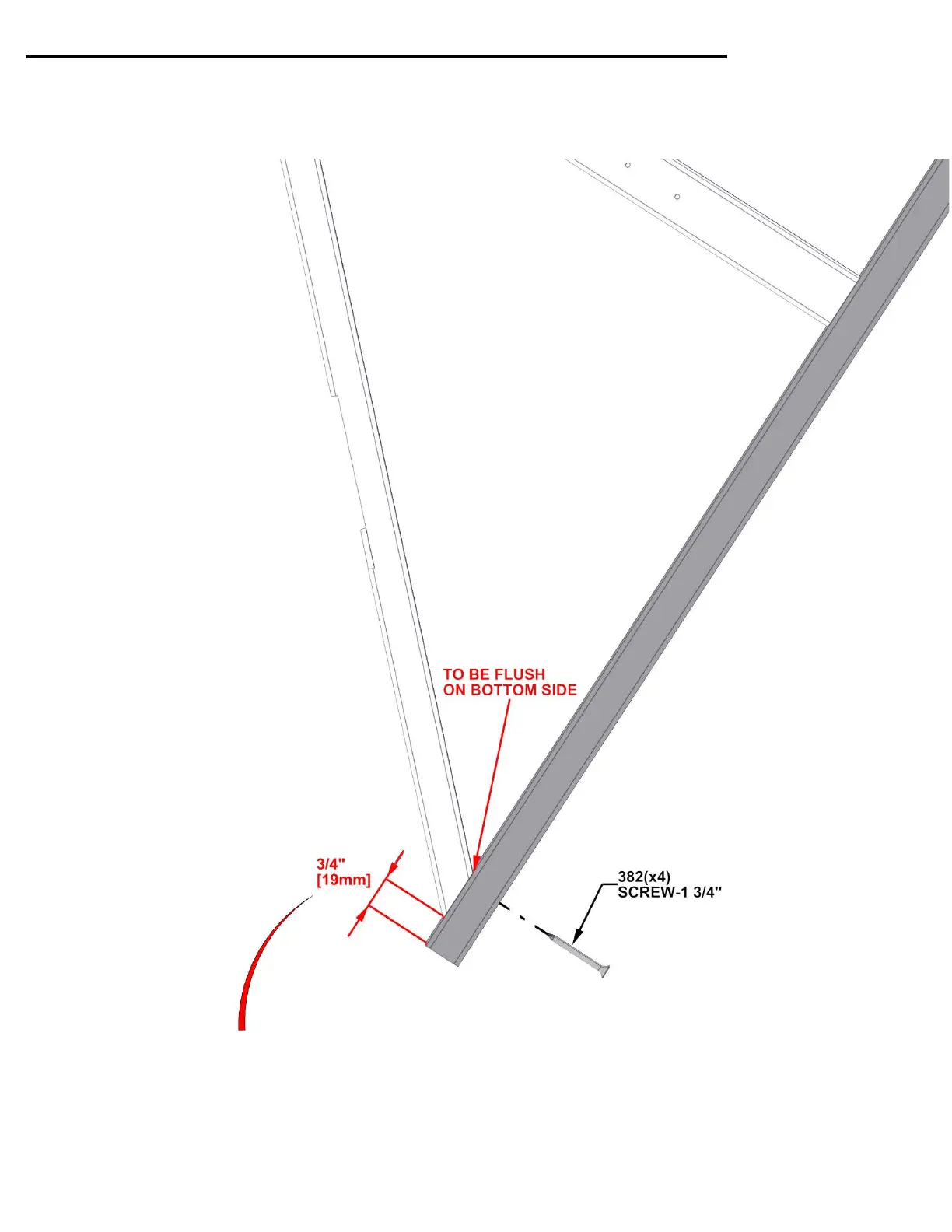

STEP 17B - 14FT ROOF PANEL ASSEMBLY
THIS DIMENSION IS CRITICAL TO
THE PANEL ASSEMBLY
TIPS:
• USING THE Q01 BOARD AS A GUIDE AND A 1/8" DRILL BIT, DRILL PILOT HOLES INTO THE H01 BOARD
USING THE DIMENSION BELOW.
• REPEAT ON OPPOSITE END WITH H09 BOARD.
37
