Backyard Discovery 2106536D - Page 48

STEP 25B - 10FT ROOF PANEL ASSEMBLY

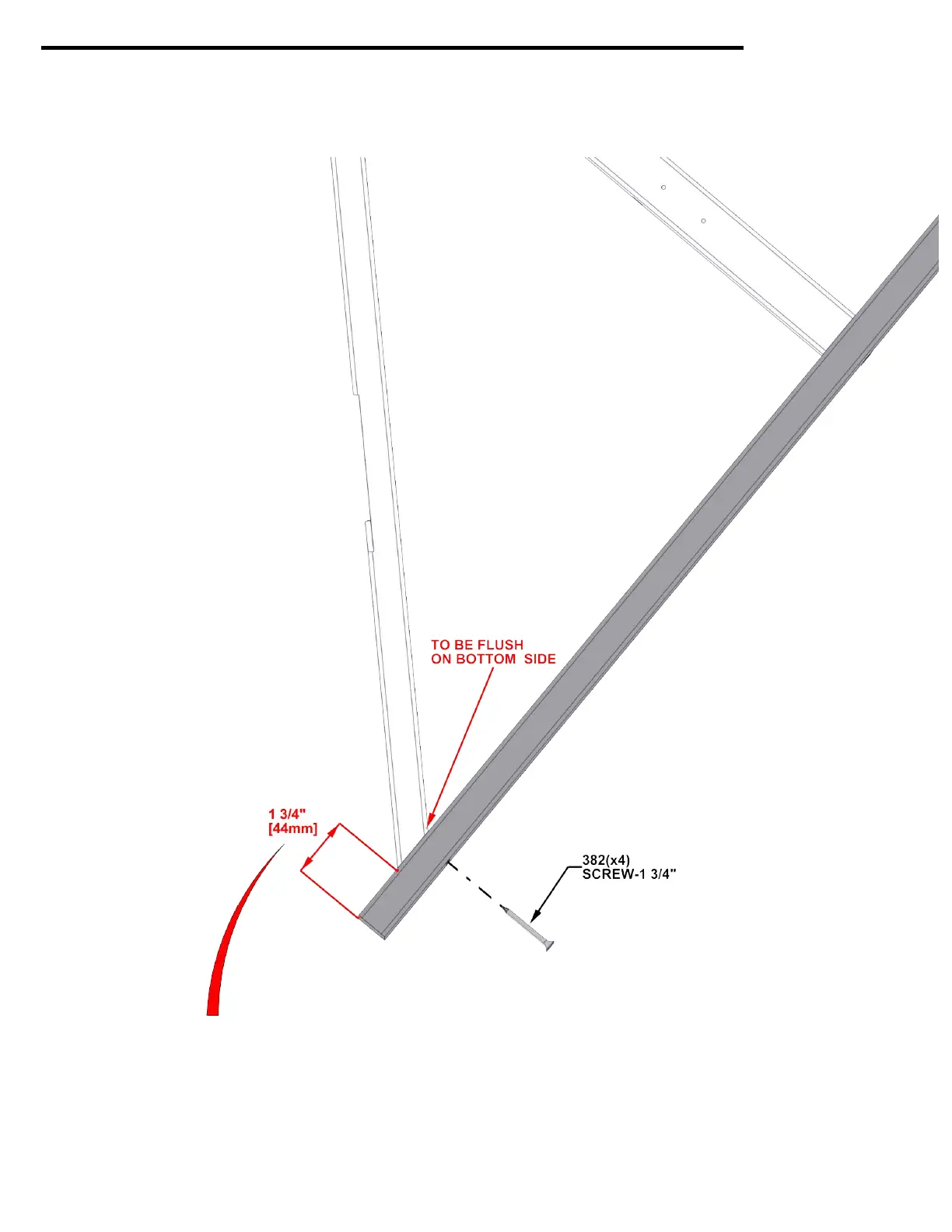

THIS DIMENSION IS CRITICAL TO
THE PANEL ASSEMBLY
• USING THE Q02 BOARD AS A GUIDE AND A 1/8" DRILL BIT, DRILL PILOT HOLES INTO THE H12 BOARD
USING THE DIMENSION BELOW.
• REPEAT ON OPPOSITE END WITH H10 BOARD.
48
