Backyard Discovery 2106536D - Page 7

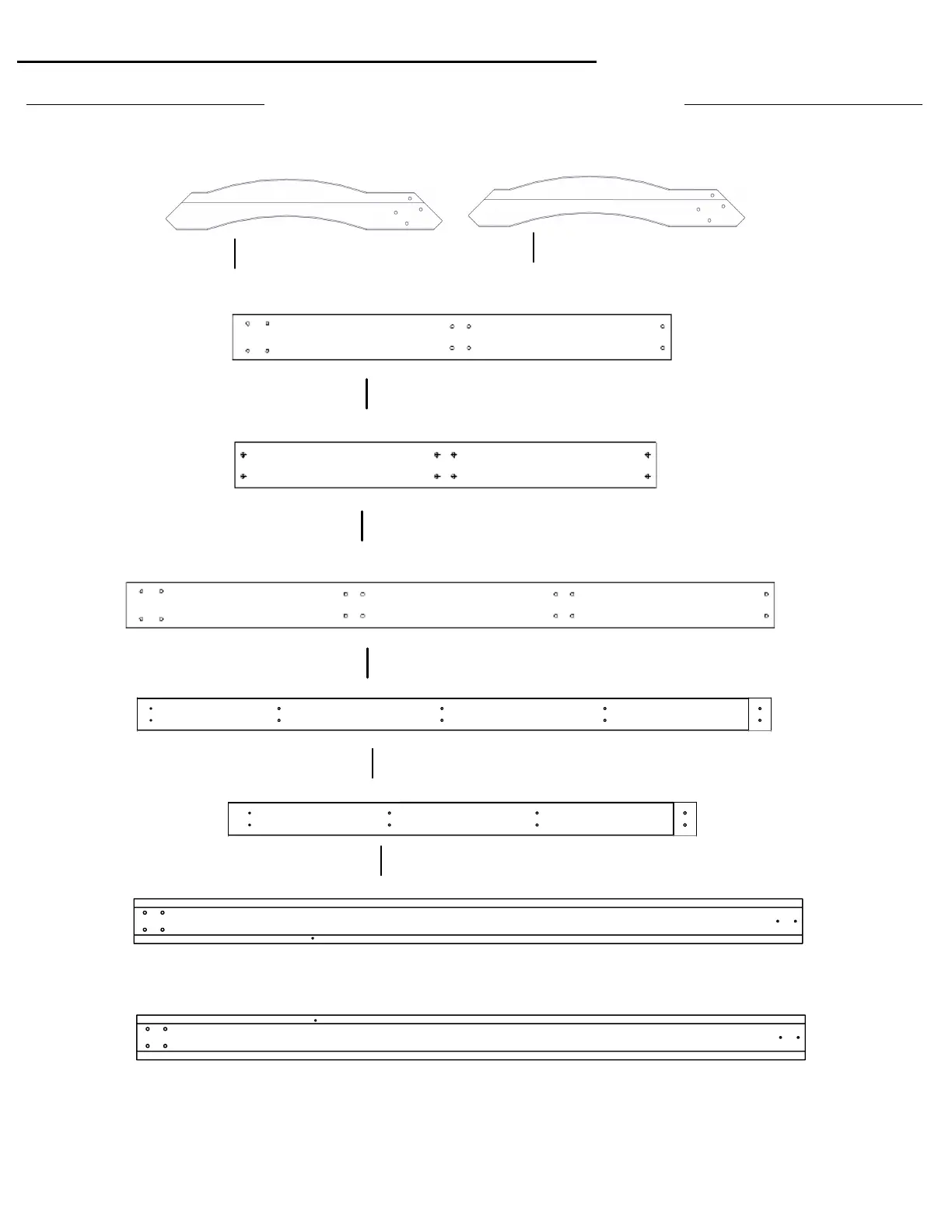

Wood Components (Not to Scale)
OWNER'S MANUAL - PARTS IDENTIFICATION
G01
(4)
BEAM - W4L16923
1"x5 1/4"x53 3/16" (24x134x1351)
G02
(2)
MID BRACE BEAM - W4L16924
1"x5 1/4"x47 5/8" (24x134x1210)
G03
(4)
BEAM - W4L16925
1"x5 1/4"x77" (24x134x1956)
CORBEL-W2A03393
1 3/8"x6 7/16"x35 1/8" (36x163x893)
C01
(
7
)
CORBEL W/TAG-W2A03394
1 3 /8"x6 7/16"x35 1/8" (36x163x893)
C02
(1)
Q02
ROOF JOIST-W4L16307
1" x4 3/8"x6 1 1/2" (24x112x1562)
Q01
( 4)
ROOF JOIST-W4L16294
1"x
4 7/16"x84 9/16" (24x112x2148)
( 4)
| POST-W2A03571
| 6"x6"x89 1/2" (152x152x2274)
P01
(x2)
| POST-W2A03572
| 6"x6"x89 1/2" (152x152x2274)
P02
(x2)
7
