Frame Assembly
Phase 7
Phase Notes
• Assemble with hardware as shown.
Parts needed:
• (4) L1 - INLET SUPPORT - W101715
Hardware needed:
• (16) BT - SCREW PFH 8x2-1/2 - H100090

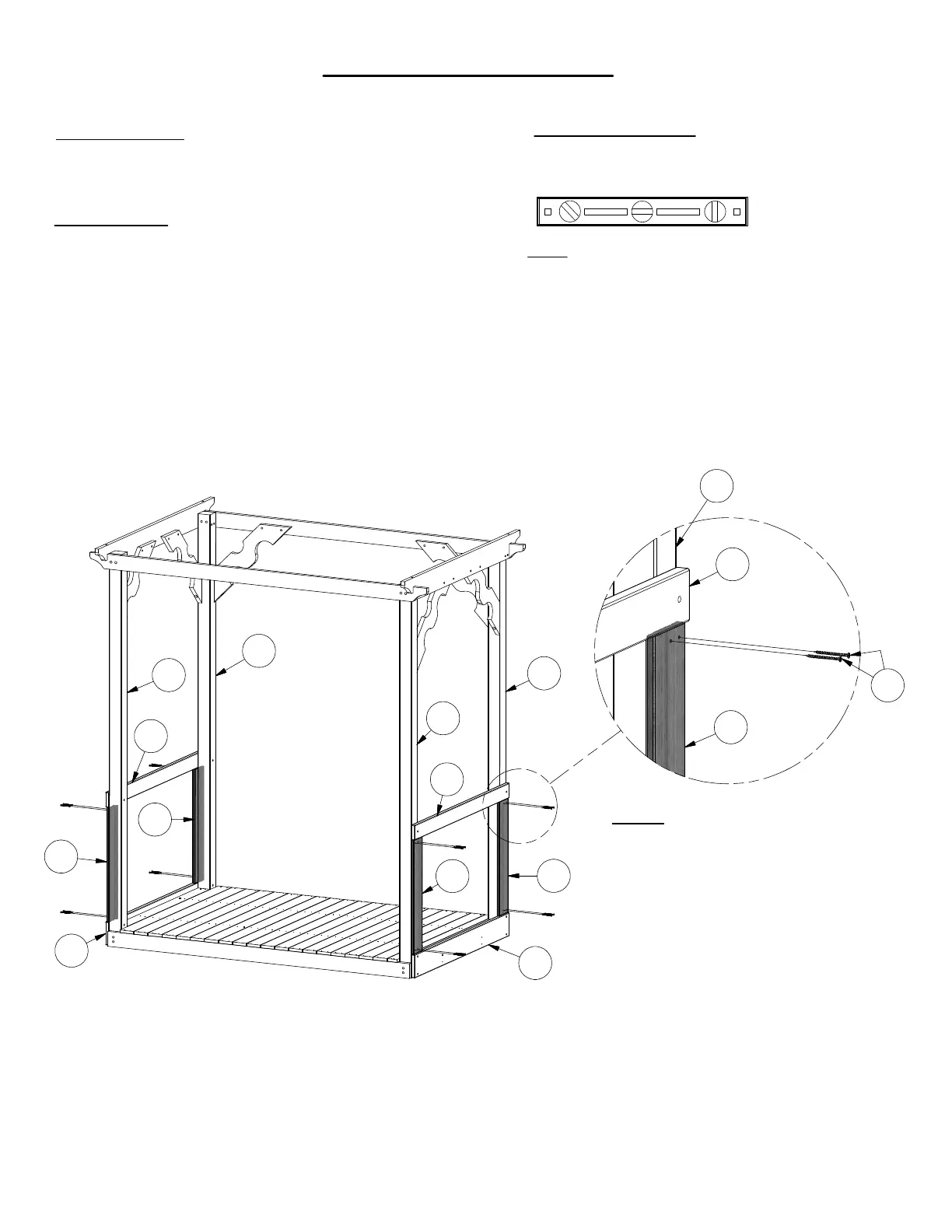

Step 1:
Attach 'L1' Inlet Support to
'B1' Post using 'BT' Screws, as
shown.
L1
B1
H5
BT
L1
B1
B1
L1
B1
B1
H5
H5
L1
L1
G1
G1
Note: It is vital that the structure
be level before and after each
phase of assembly.
