Backyard Discovery ARLINGTON - Gazebo Assembly: Beam and Post Connection

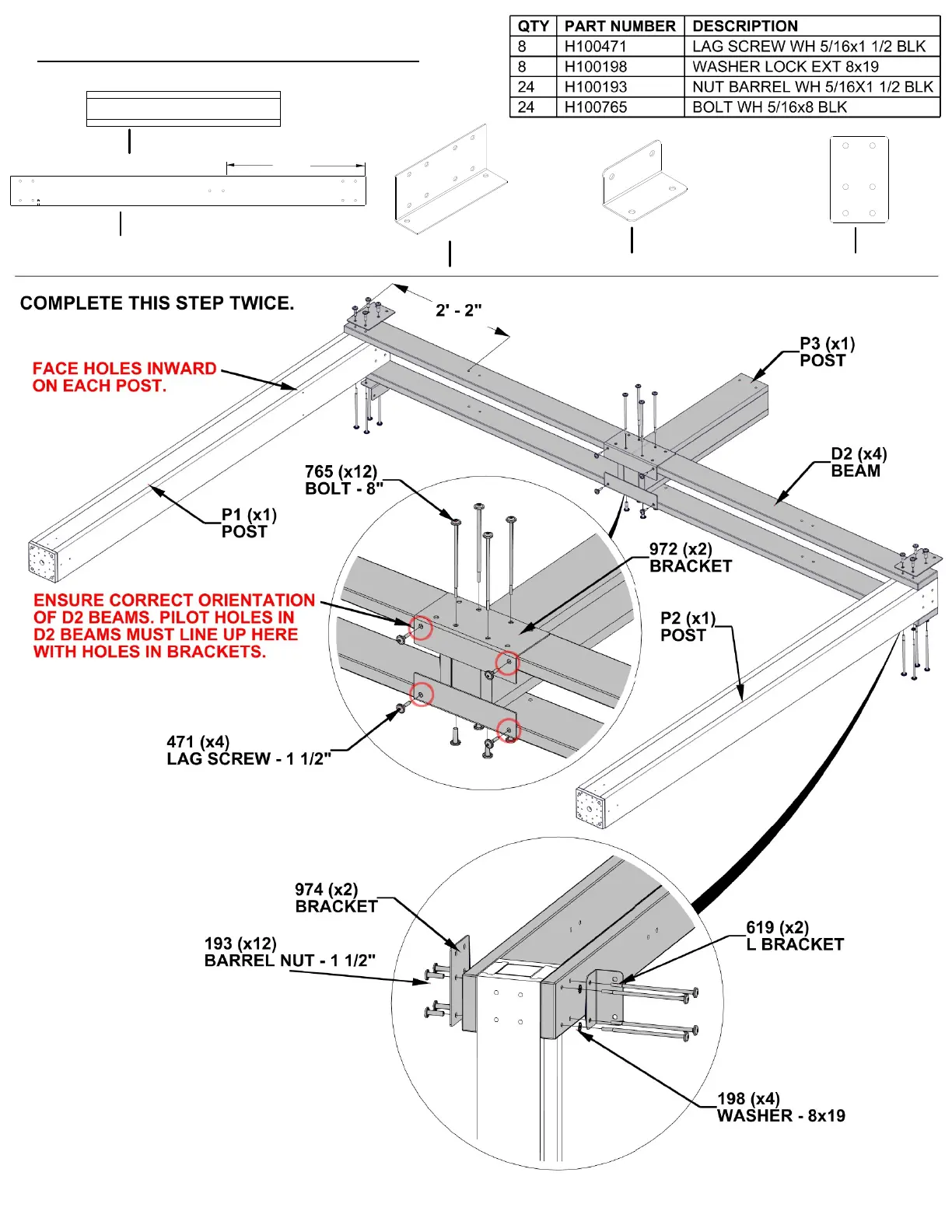

STEP 2 - GAZEBO ASSEMBLY
POST - W2A03021
6"x6"x33 1/4" (152x152x845)
P3
(x2)
BEAM - W4L13606
1 3/8"x5 1/4"x64 5/8" (36x134x1640)
D2
(x8)
L BRACKET
66x66x127 - BLK
(x4)
A4M00619
A4M00972
BRACKET
(x4)
A4M00974
BRACKET
(x4)
2' - 2"
14
