Backyard Discovery ARLINGTON - Page 23

RAFTER - W4L13666
1"x3 3/8"x79 3/8" (24x86x2016)
H1
(x2)
RAFTER - W4L13667
1"x3 3/8"x53 11/16" (24x86x1364)
H3
(x2)
FASCIA - W4L13668
1"x3 3/8"x59 3/4" (24x86x1518)
H4
(x2)
FASCIA - W4L13663
1"x3 3/8"x85 3/8" (24x86x2170)
H2
(x2)
OUTSIDE RAFTER - W4L13604
1 3/8"x3 3/8"x77 3/8" (36x86x1965)
E1
(x4)
RAFTER - W4L13603
1 3/8"x3 3/8"x77 3/8" (36x86x1965)
E2
(x8)

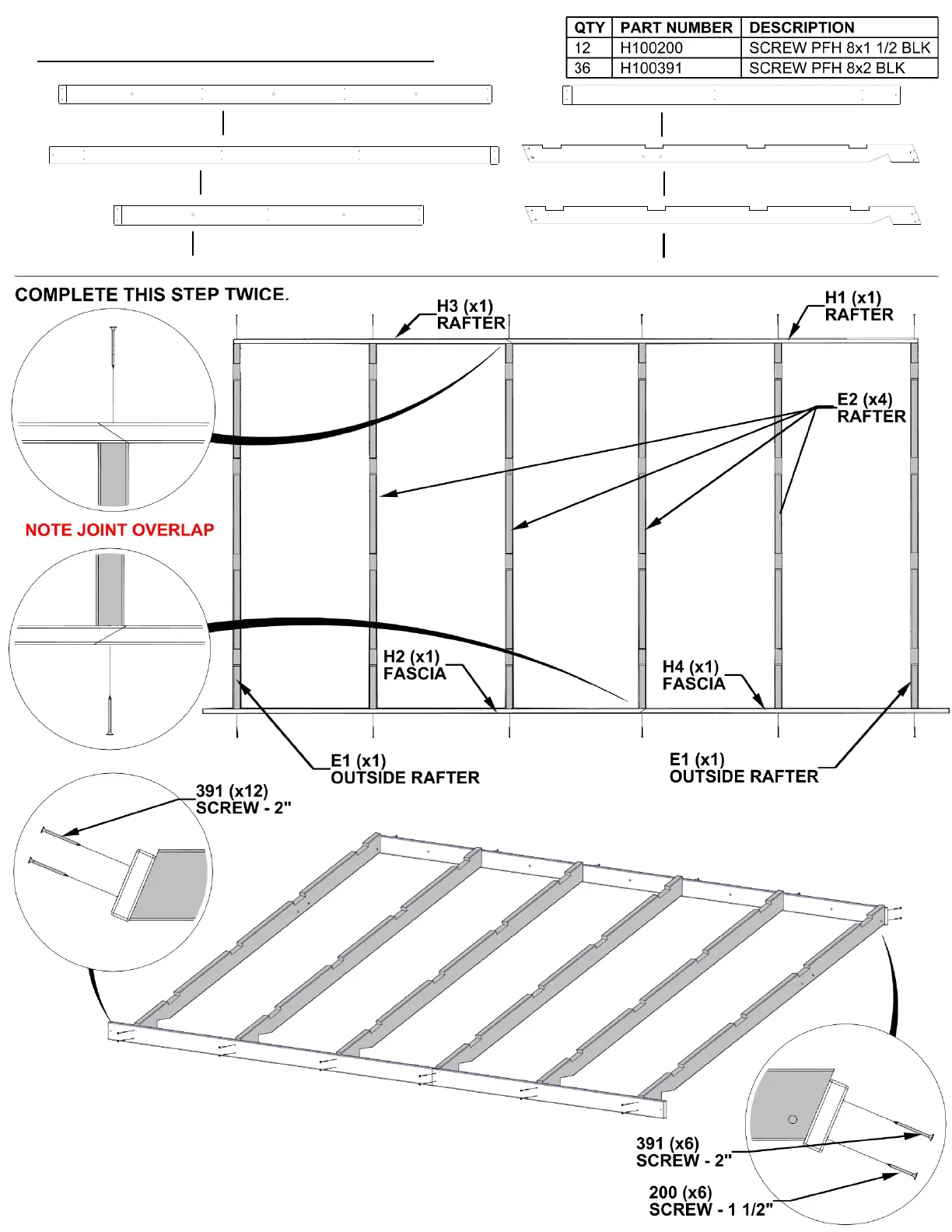

STEP 11 - GAZEBO ASSEMBLY
23
