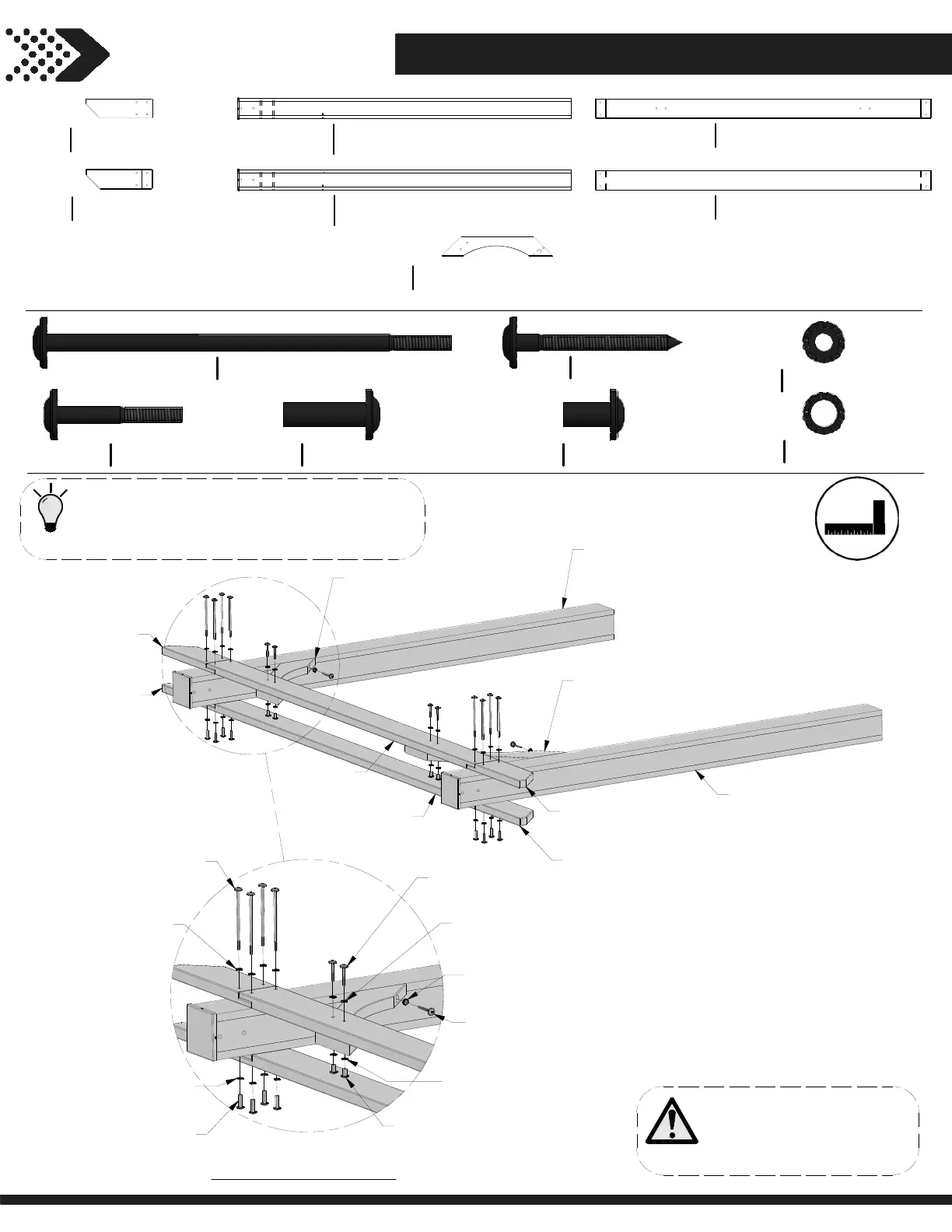

Backyard Discovery ASHLAND - Page 18

NOTE:
TIP:
ASSEMBLE AS SHOWN
USING THE PRE-DRILLED
PILOT HOLES IN POSTS.
LAY PARTS ON GROUND OR SAW HORSES
FOR EASE OF ASSEMBLY.
JOIST END - W4L12996
1 7/16"x5 1/4"x17 3/4" (36x134x451)
D07
(x2)
JOIST - W4L12977
1 3/8"x5 1/4"x90" (36x134x2286)
D08
(x1)
JOIST - W4L12975
1 3/8"x5 1/4"x90" (36x134x2286)
D09
(x1)
JOIST END - W4L12972
1 3/8"x5 1/4"x17 3/4" (36x134x451)
D10
(x2)
BOLT WH BLK
5/16x7-1/4
(x8)
H100196
BOLT WH BLK
5/16x2-1/4
(x4)
H100205
LAG SCREW WH BLK
5/16x3
(x2)
H100206
WASHER LOCK EXT BLK
8x19
(x14)
H100198
WASHER LOCK EXT BLK
12x19
(x12)
H100199
NUT BARREL WH BLK
5/16x1-1/2
(x8)
H100193
NUT BARREL WH BLK
5/16x7/8
(x4)
H100192
D12 (x1)
SHORT ANGLE BRACE
D07 (x1)
JOIST END
D10 (x1)
JOIST END
D08 (x1)
JOIST
D09 (x1)
JOIST
D12 (x1)
SHORT ANGLE BRACE
D10 (x1)
JOIST END
D07 (x1)
JOIST END
192 (x2)
NUT BARREL - 7/8"
199 (x2)
WASHER - 12x19
206 (x1)
LAG SCREW - 3"
198 (x1)
WASHER - 8x19
198 (x2)
WASHER - 8x19
205 (x2)
BOLT - 2 1/4"
196 (x4)
BOLT - 7-1/4
198 (x4)
WASHER - 8x19
199 (x4)
WASHER - 12x19
193 (x4)
NUT BARREL - 1 1/2"
STEP 2
UP2 (x1)
PERGOLA POST
UP1 (x1)
PERGOLA POST
PERGOLA POST - W2A02952
5 1/2"x5 1/2"x89 1/2" (140x140x2273)
UP1
(x1)
PERGOLA POST - W2A02955
5 1/2"x5 1/2"x89 1/2" (140x140x2273)
UP2
(x1)
SHORT ANGLE BRACE - W4L12981
1 3/8"x5 1/4"x29 3/4" (36x134x755)
D12
(x2)
REPEAT ON OPPOSITE END
18
