Backyard Discovery ATLANTIS - Page 24

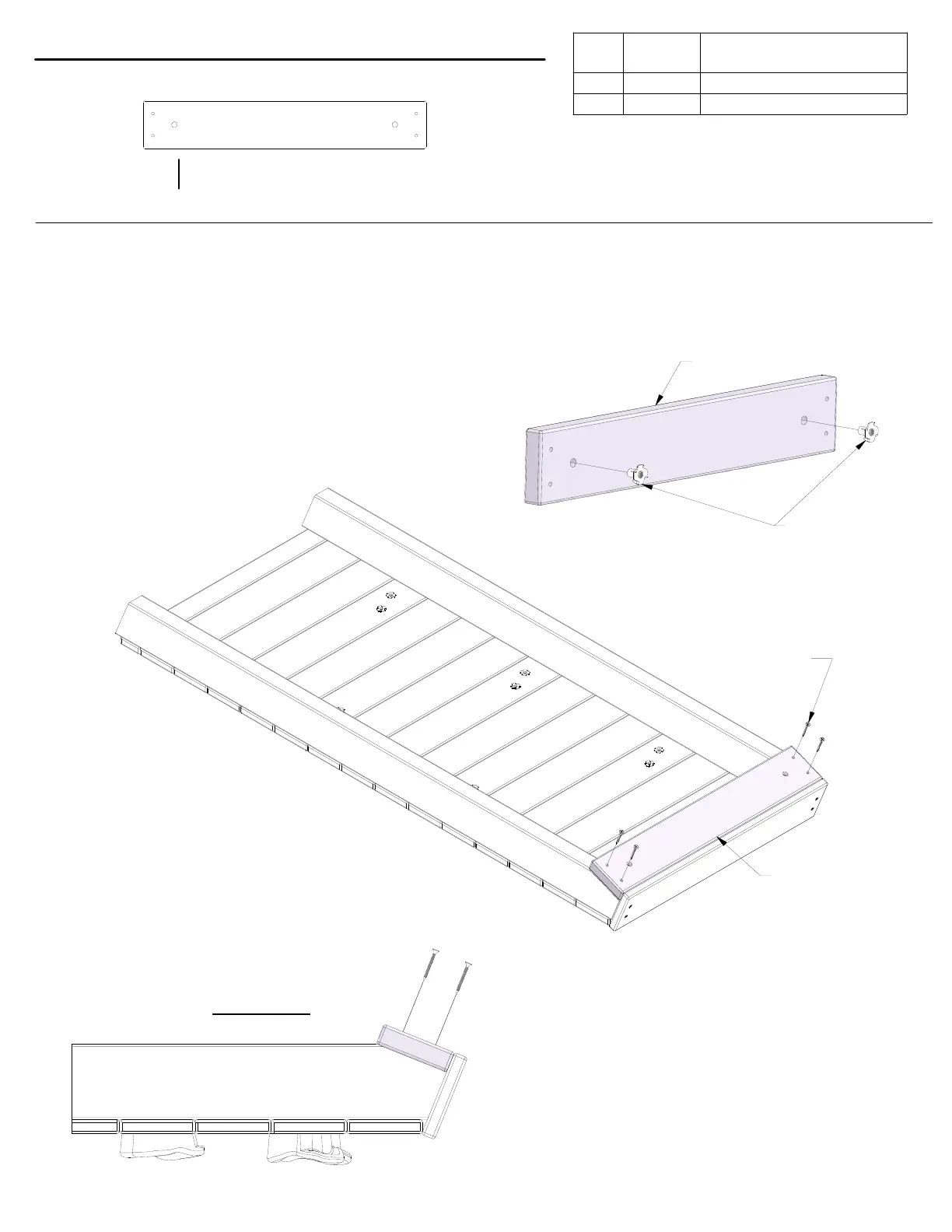

STEP 4 - ROCK WALL ASSEMBLY
QTY
PART
NUMBER
DESCRIPTION
2
H100074 T-NUT 5/16
4
H100086
SCREW PFH 8x1-1/2"
086 (x4)
SCREW - 1 1/2"
074 (x2)
T-NUT - 5/16"
J2 (x1)
J2 (x1)
SIDE VIEW
NOTE:
T-NUTS TO THE INSIDE
WHEN INSTALLING BOARD
ATTACHMENT BOARD - W4L16268
1"x3 3/8"x20 1/4" (24x86x514)
J2
(x1)
TIP:
INSTALL T-NUTS INTO BOARDS
BEFORE ASSEMBLY
24
