TOP
BOTTOM
TIP:
PREBENDING THE ENDS WILL EASE ASSEMBLY.
PLACING THE SLIDE BED OUT IN THE SUN MAKES
IT EASIER TO BEND.
NOTE:TAKE NOTE OF SLIDE BED SURFACE FINISH, THE DULL SIDE WILL BE TOWARDS THE GROUND.
PLACE SLIDE BRACE CENTERED ON THE BOTTOM (DULL SIDE) AND 1/2" FROM THE EDGE. USE M77
BOARD AS A TEMPLATE FOR DRILLING BOTTOM HOLE PATTERN IN SLIDE BED. USE A 5/16" DRILL BIT.
SLIDE BED 8' YELLOW
(x1)
A100056
SLIDE BRACE - W100544
5/8"x3 3/8"x17 1/4" (16x86x438)
M77
(x1)
115
(x3)
BOLT - 1/2"
074
(x3)
T-NUT - 5/16"
M77
(x1)
SLIDE BRACE
056
(x1)
SLIDE BED 8' YELLOW

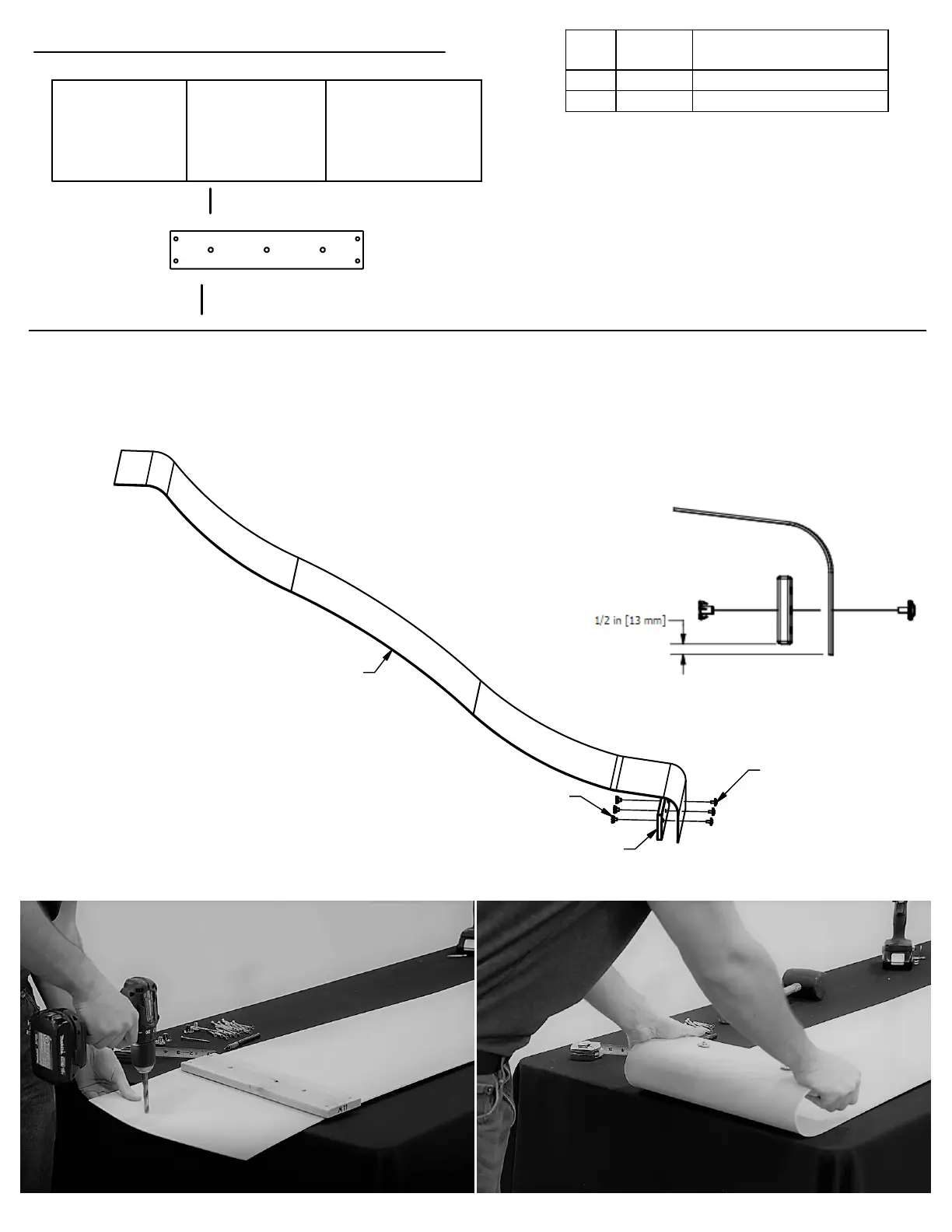

STEP 1 - SLIDE ASSEMBLY
QTY
PART
NUMBER
DESCRIPTION
3 H100074
T-NUT 5/16
3 H100115
BOLT WH 5/16x1/2
TIP:
INSTALL T-NUTS INTO BOARDS
BEFORE ASSEMBLY
