Backyard Discovery ATLANTIS - Page 30

ANGLE BRACE - W4L14652
1 3/8"x3 3/8"x81" (36x86x2056)
E77
(x2)
SWING BEAM SUPPORT - W4L14654
2"x3 3/8"x50 3/8" (50x86x1280)
W71
(x1)
A-FRAME BRACKET
(x1)
A4M01169

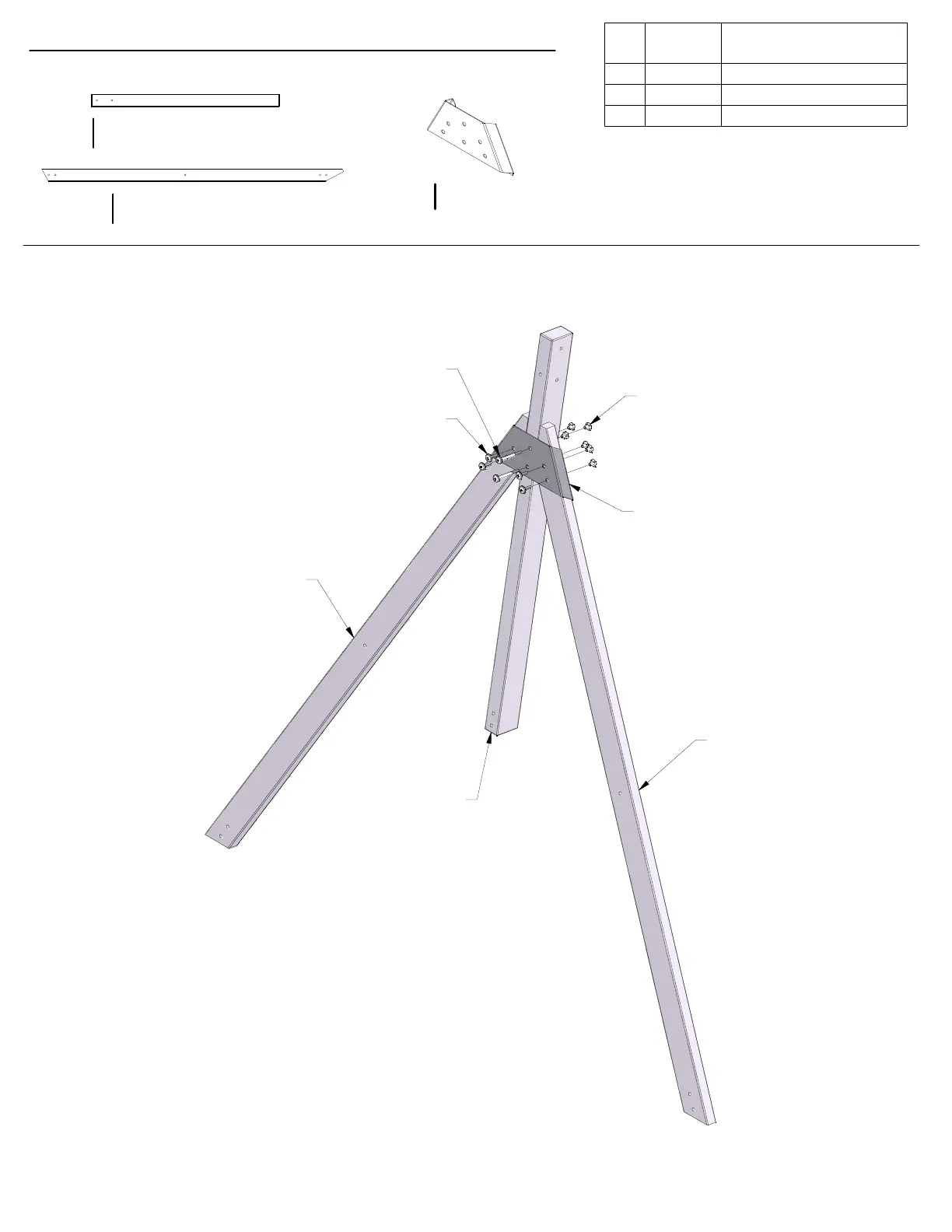

STEP 4 - SWING BEAM ASSEMBLY
E77 (x1)
ANGLE BRACE
E77 (x1)
ANGLE BRACE
W71 (x1)
SWING BEAM SUPPORT
QTY
PART
NUMBER
DESCRIPTION
4 H100009 BOLT WH 5/16x1 1/4
2
H100018
BOLT WH 5/16x3 1/2
6 H100074 T-NUT 5/16
009 (x4)
BOLT - 1 1/4"
018 (x2)
BOLT - 3 1/2"
074 (x6)
T-NUT - 5/16"
169 (x1)
A-FRAME BRACKET
30
