Backyard Discovery ATLANTIS - Page 31

END SUPPORT - W4L14651
1 1/2"x3 1/2"x46" (36x86x1168)
E50
(x1)
GROUND BOARD - W4L14653
1"x3 3/8"x79 1/2" (24x86x2018)
H80
(x1)

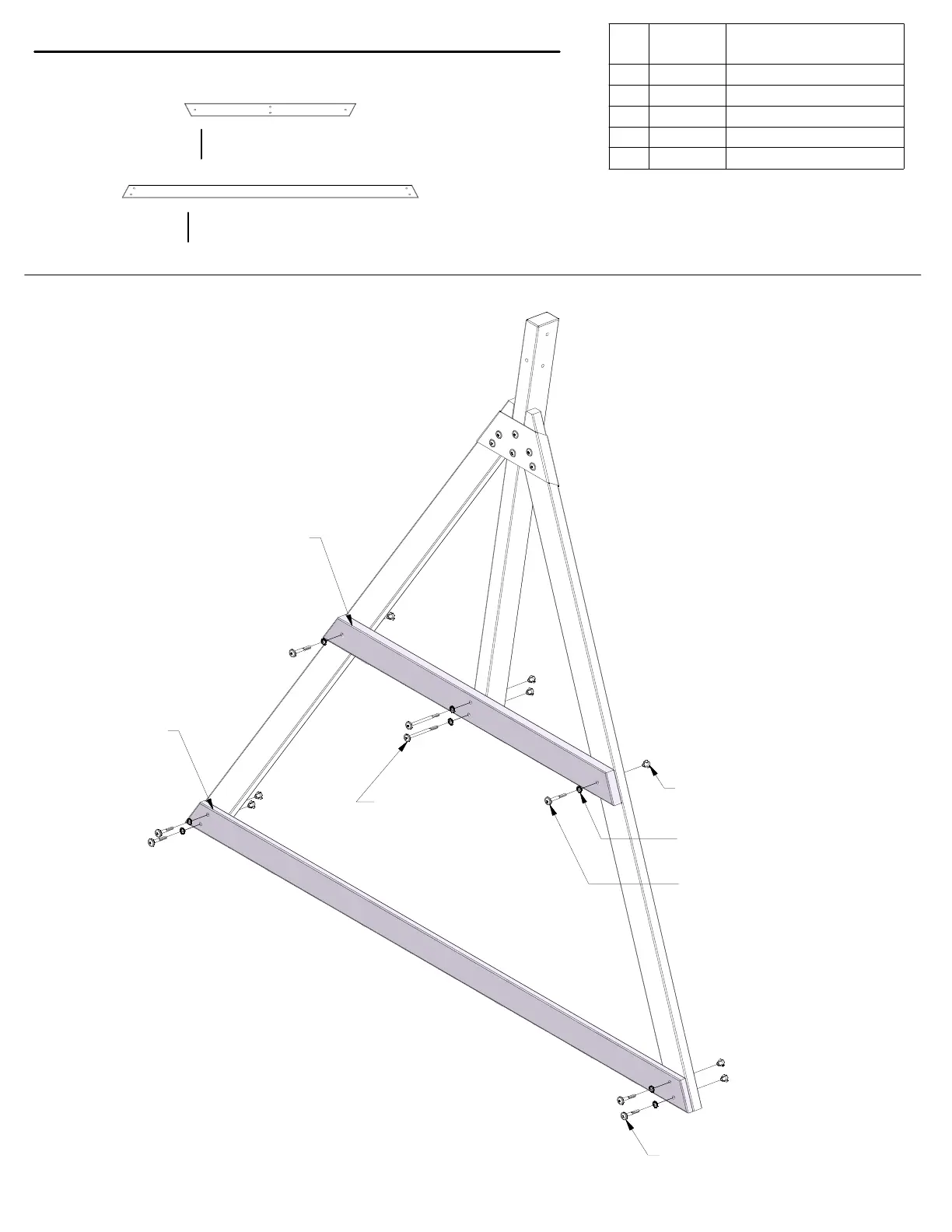

STEP 5 - SWING BEAM ASSEMBLY
QTY
PART
NUMBER
DESCRIPTION
4 H100013 BOLT WH 5/16x2 1/4
8 H100030 WASHER LOCK EXT 8x19
8 H100074 T-NUT 5/16
2
H100015
BOLT WH 5/16x2 3/4
2 H100505 BOLT WH 5/16x4 3/4
074 (x8)
T-NUT - 5/16"
030 (x8)
WASHER - 8x19
015 (x2)
BOLT - 5/16x2 3/4"
505 (x2)
BOLT - 5/16x4 3/4"
013 (x4)
BOLT - 2 1/4"
E50 (x1)
END SUPPORT
H80 (x1)
GROUND BOARD
31
