Backyard Discovery ATLANTIS - Fort Assembly: Step 1; Pilot Hole Location Note

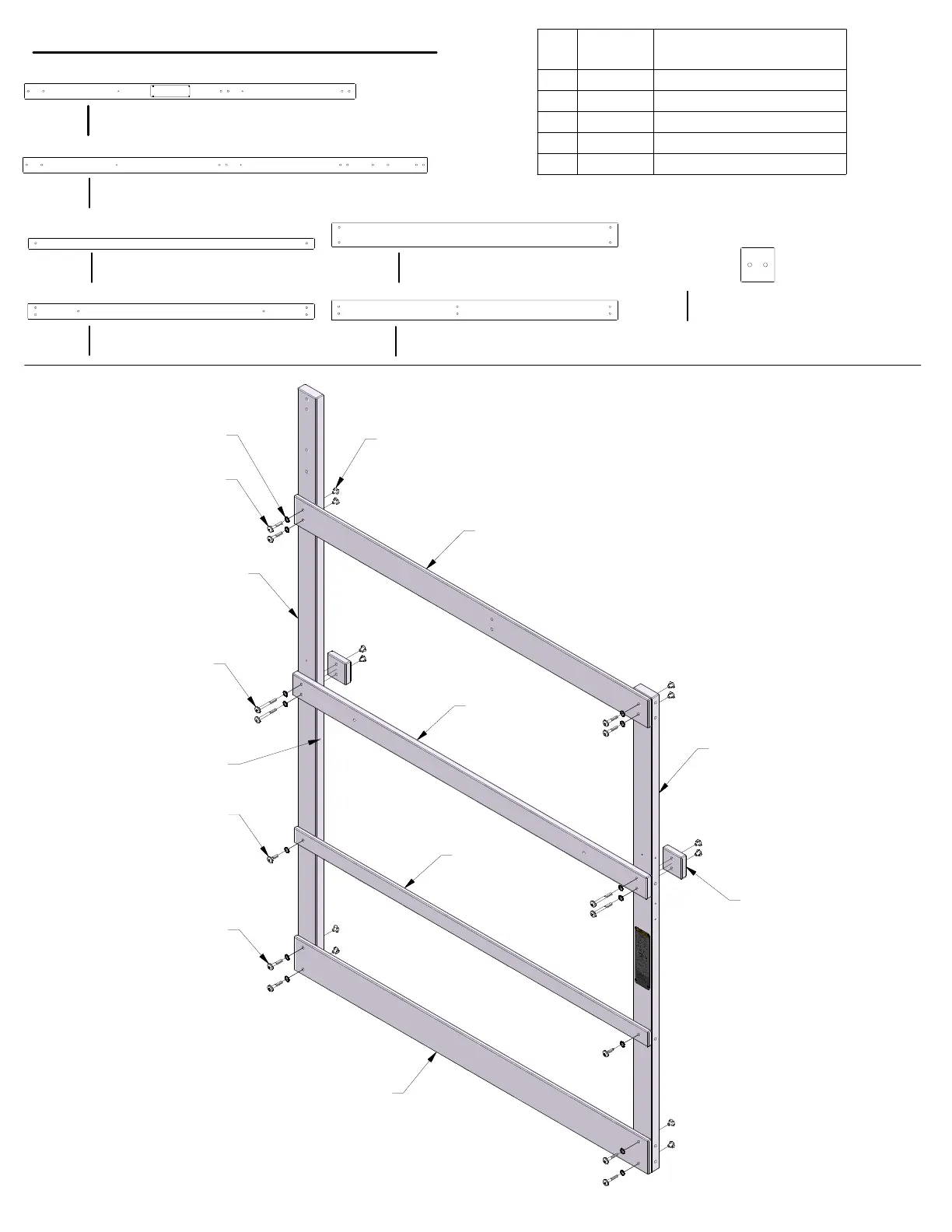

STEP 1 - FORT ASSEMBLY
QTY
PART
NUMBER
DESCRIPTION
8 H100012 BOLT WH 5/16x2
4
H100017
BOLT WH 5/16x3 1/4
2
H100026
LAG SCREW WH 5/16x1 1/2
14
H100030
WASHER LOCK EXT 8x19
12
H100074
T-NUT 5/16
012 (x4)
BOLT - 2"±
030 (x14)
WASHER - 8x19
074 (x12)
T-NUT - 5/16"
017 (x4)
BOLT - 3 1/4"
026 (x2)
LAG SCREW - 1 1/2"
012 (x4)
BOLT - 2"
E1 (x1)
L1 (x1)
H1 (x1)
N1 (x1)
K1 (x1)
H5 (x2)
E3 (x1)
TOWER LEG W/TAG
TOWER LEG W/TAG - W2A03400
1 3/8"x3 3/8"x74" (36x86x1880)
E3
(x1)
TOWER LEG - W4L16280
1 3/8"x3 3/8"x90 1/2" (36x86x2298)
E1
(x1)
SWING BLOCK - W100588
5/8"x2 3/8"x63 7/8" (16x60x1624)
N1
(x1)
LEFT FLOOR RAIL - W100557
1"x3 3/8"x63 7/8" (24x86x1624)
H1
(x1)
BASE BOARD - W100562
5/8"x5 1/4"x63 7/8" (16x134x1624)
K1
(x1)
LEFT WALL RAIL - W102360
5/8"x4 3/8"x63 7/8" (16x112x1624)
L1
(x1)
FLOOR SUPPORT - W100598
1"x3 3/8"x3 3/8" (24x86x86)
H5
(x2)
TIP:
INSTALL T-NUTS INTO
BOARDS BEFORE ASSEMBLY
NOTE PILOT
HOLE LOCATION
33
