Backyard Discovery ATLANTIS - Fort Assembly: Step 2; Pilot Hole Locations Note

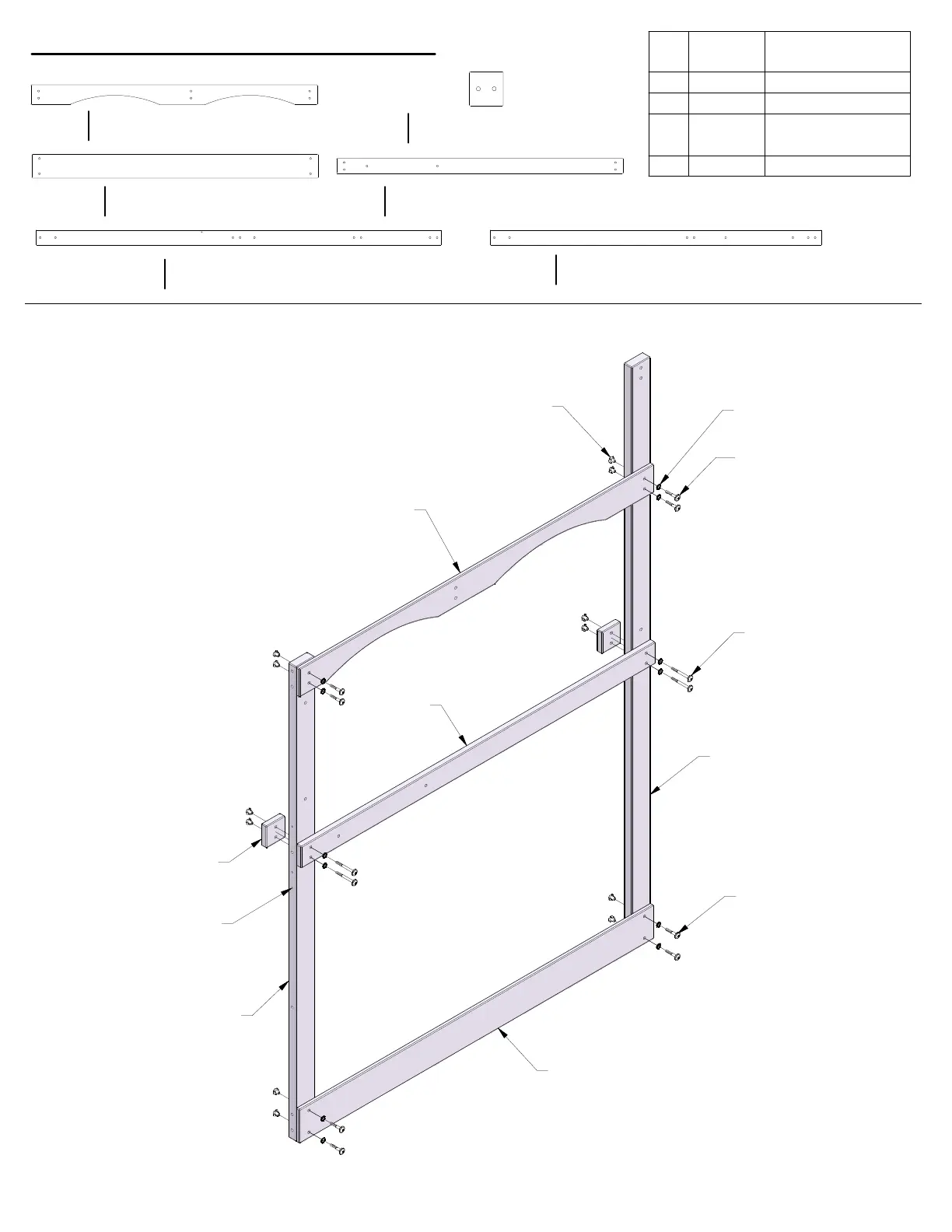

STEP 2 - FORT ASSEMBLY
QTY
PART
NUMBER
DESCRIPTION
8 H100012 BOLT WH 5/16x2
4
H100017
BOLT WH 5/16x3 1/4
12 H100030
WASHER LOCK
EXT 8x19
12
H100074
T-NUT 5/16
012 (x4)
BOLT - 2"
030 (x12)
WASHER - 8x19
074 (x12)
T-NUT - 5/16"
017 (x4)
BOLT - 3 1/4"
012 (x4)
BOLT - 2"
E2 (x1)
L2 (x1)
H2 (x1)
K1 (x1)
E6 (x1)
H5 (x2)
RIGHT WALL RAIL - W100567
5/8"x4 3/8"x63 7/8" (16x112x1624)
L2
(x1)
RIGHT FLOOR RAIL - W4L16276
1"x3 3/8"x63 7/8" (24x86x1624)
H2
(x1)
BASE BOARD - W100562
5/8"x5 1/4"x63 7/8" (16x134x1624)
K1
(x1)
TOWER LEG - W4L16278
1 3/8"x3 3/8"x74" (36x86x1880)
E6
(x1)
TOWER LEG - W4L16279
1 3/8"x3 3/8"x90 1/2" (36x86x2298)
E2
(x1)
FLOOR SUPPORT - W100598
1"x3 3/8"x3 3/8" (24x86x86)
H5
(x2)
TIP:
INSTALL
T-NUTS INTO
BOARDS BEFORE ASSEMBLY
NOTE PILOT
HOLE LOCATIONS
34
