Backyard Discovery ATLANTIS - Fort Assembly: Step 11; Complete Assembly Twice

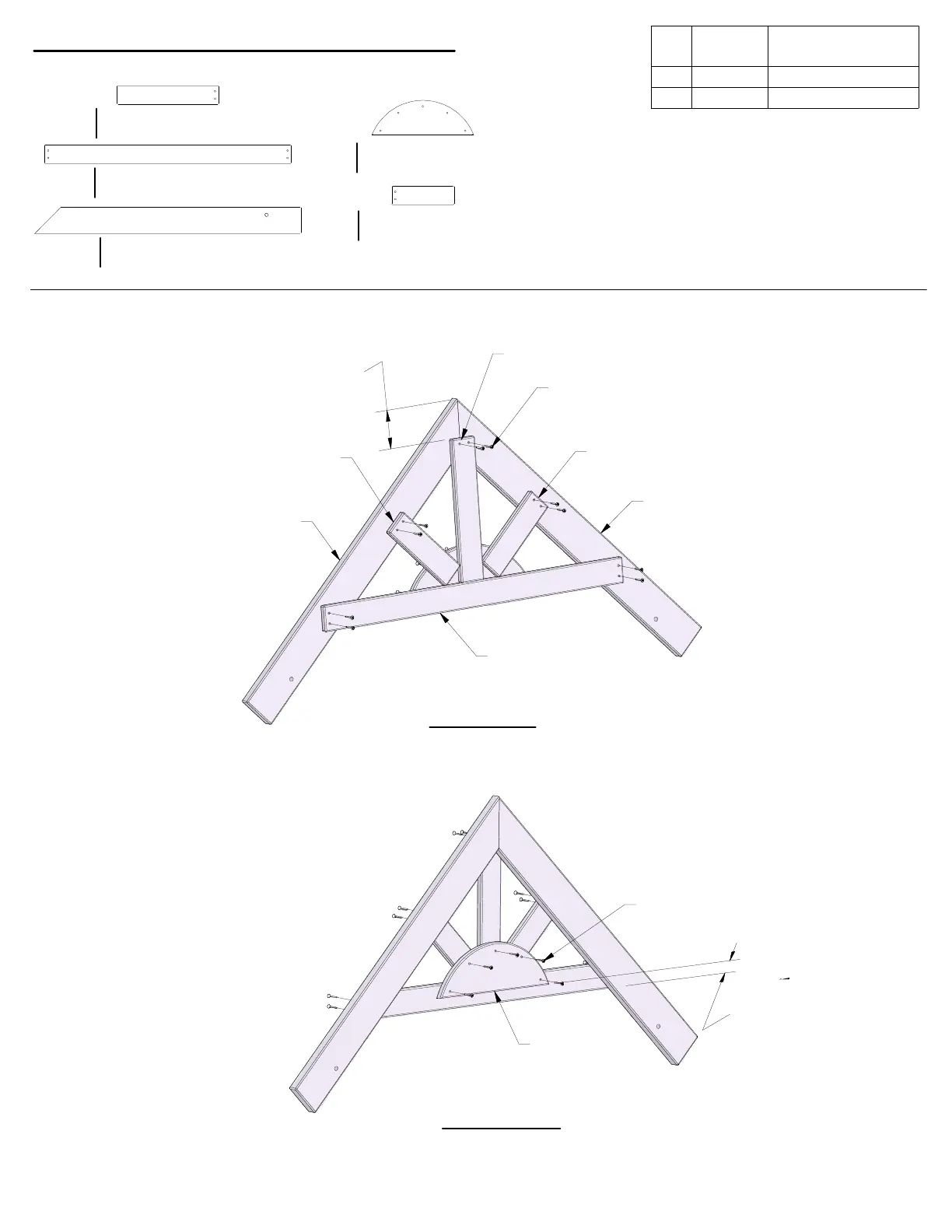

STEP 11 - FORT ASSEMBLY
QTY
PART
NUMBER
DESCRIPTION
10 H100087 SCREW PFH 8x1-1/4"
5 H100088
SCREW PFH 8x1-1/8"
087 (x10)
SCREW - 1-1/4"
088 (x5)
SCREW - 1 1/8"
H3 (x1)
H3 (x1)
N7 (x1)
N6 (x1)
N3 (x1)
N7 (x1)
L7 (x1)
GABLE BOARD - W100593
5/8"x2 3/8"x13" (16x60x330)
N6
(x1)
GABLE BOARD - W100594
5/8"x2 3/8"x8" (16x60x202)
N7
(x2)
ROOF RAFTER - W100559
1"x3 3/8"x34" (24x86x864)
H3
(x2)
GABLE BOARD - W100590
5/8"x2 3/8"x31 1/2" (16x60x800)
N3
(x1)
GABLE MOON - W100572
5/8"x4 3/8"x13" (16x112x330)
L7
(x1)
REAR VIEW
FRONT VIEW
3 7/16 in
[88 mm]
1 5/16 in
[34 mm]
COMPLETE THIS STEP TWICE
43
