Backyard Discovery ATLANTIS - Fort Assembly: Step 14; Picket Spacing Tip

QTY
PART
NUMBER
DESCRIPTION
58 H100088
SCREW PFH 8x1-1/8"

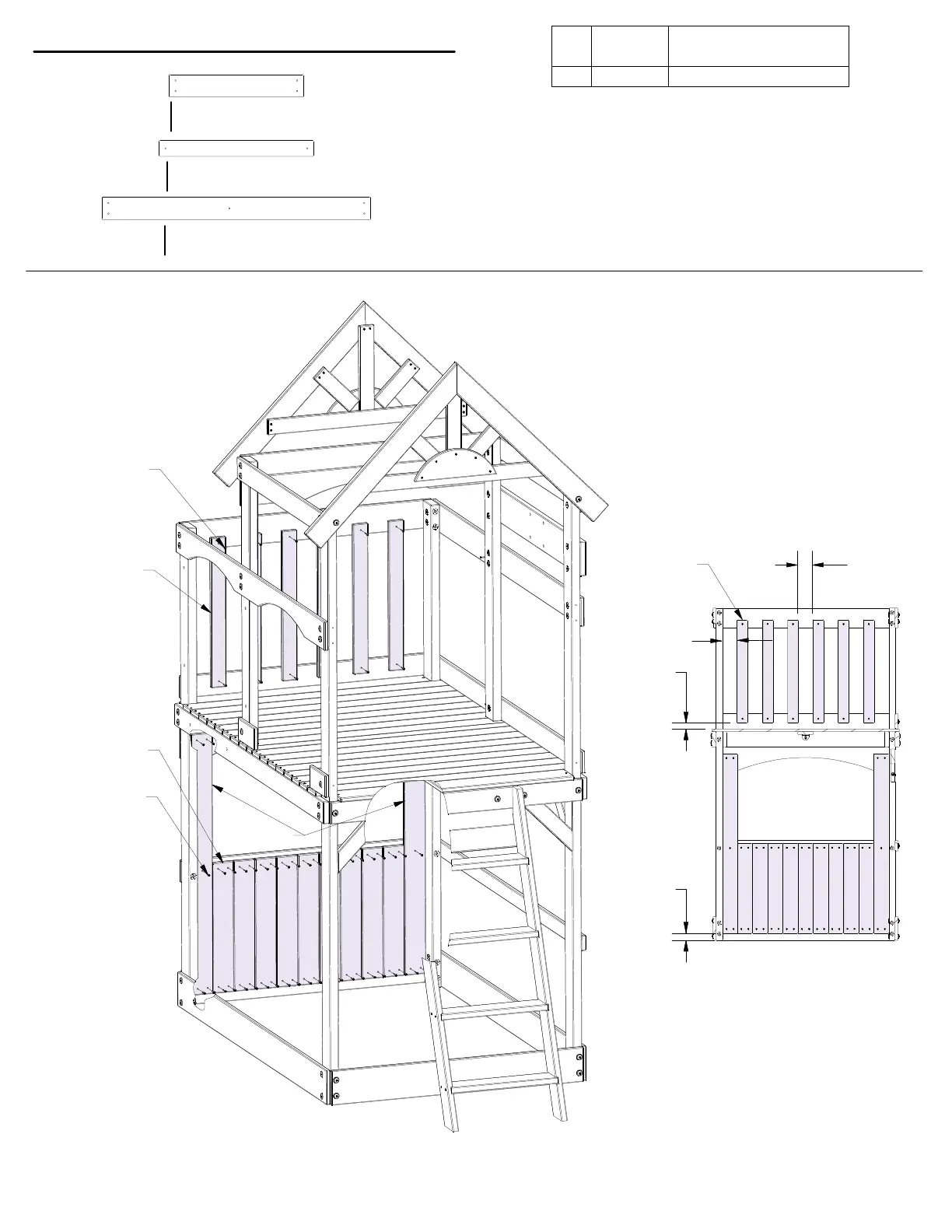

STEP 14 - FORT ASSEMBLY
088 (x46)
SCREW - 1 1/8"
088 (x12)
SCREW - 1 1/8"
N4 (x6)
M7 (x2)
M11 (x9)
WALL BOARD - W100583
5/8"x3 3/8"x20" (16x86x508)
M11
(x9)
WALL BOARD - W100591
5/8"x2 3/8"x23" (16x60x584)
N4
(x6)
WALL BOARD - W100579
5/8"x3 3/8"x40" (16x86x1016)
M7
(x2)
USE PICKET PAL FOR
PICKET SPACING
(START WITH MIDDLE
PICKETS TO ENSURE
EVEN SPACING)
3 3/8 in
[86 mm]
N4
1 3/8 in
[34 mm]
1 5/8 in
[40 mm]
46
1 3/8 in
