Backyard Discovery ATLANTIS - Fort Assembly: Step 16; Bracket as Guide for Drilling; Board Spacing Tip

QTY
PART
NUMBER
DESCRIPTION
4 H100083 SCREW TAPPING 14x3/4
48 H100088
SCREW PFH 8x1-1/8"

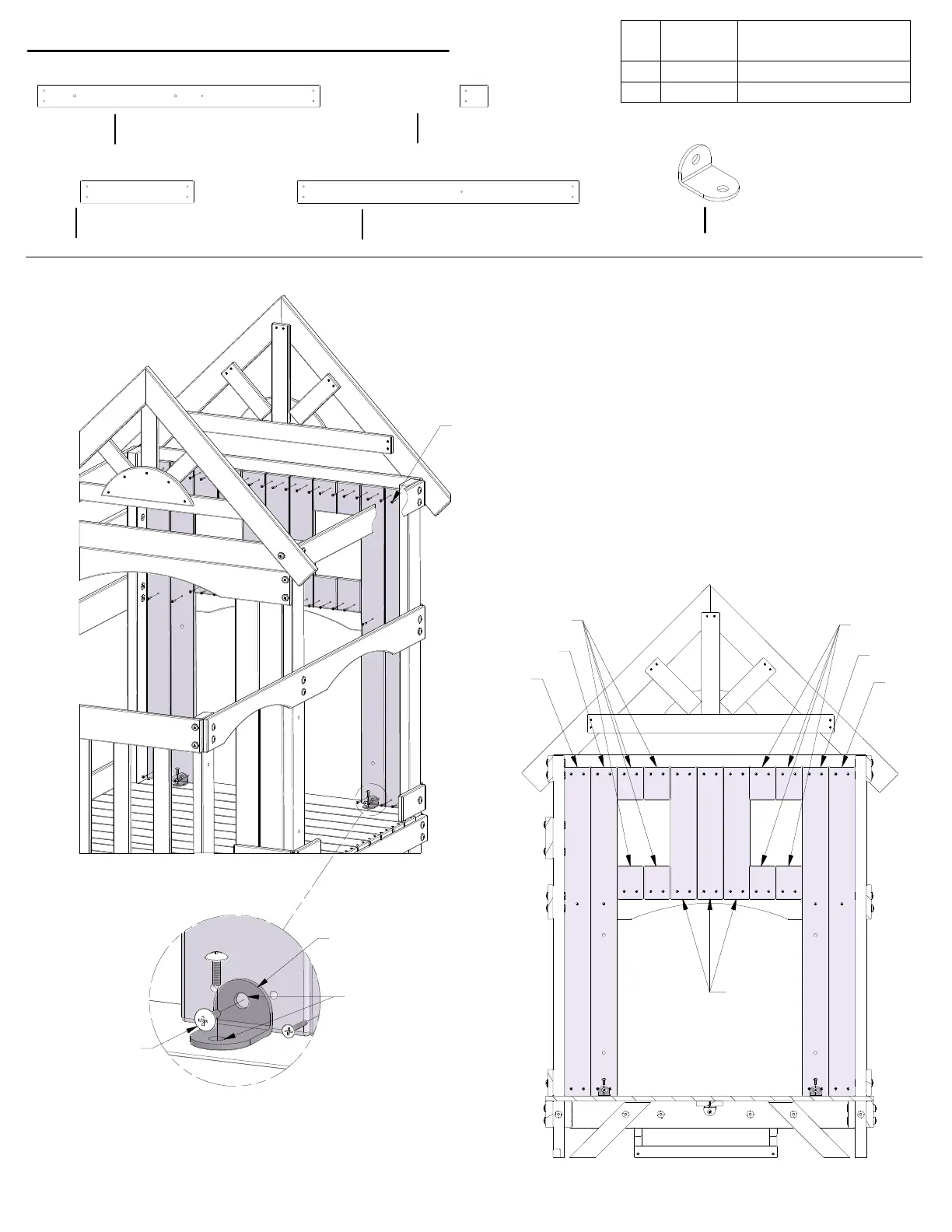

STEP 16 - FORT ASSEMBLY
M4 (x1)
M4 (x1)
M15 (x4)
M15 (x4)
M12 (x3)
088 (x48)
SCREW - 1 1/8"
083 (x4)
SCREW - 14x3/4"
061 (x2)
L BRACKET GREEN 32x51
WALL BOARD - W100599
5/8"x3 3/8"x42" (16x86x1066)
M16
(x2)
WALL BOARD - W100584
5/8"x3 3/8"x16 7/8" (16x86x428)
M12
(x3)
WALL BOARD - W100587
5/8"x3 3/8"x4 1/8" (16x86x106)
M15
(x8)
L BRACKET
GREEN 32x51
(x2)
A100061
TIP:
SPACE B
OARDS EVENLY
TO MINIMIZE GAPS.
USING BRACKET AS
A GUIDE, DRILL
1/8" (3mm) HOLES.
M16 (x1)
M16 (x1)
WALL BOARD - W100576
5/8"x3 3/8"x42" (16x86x1066)
M4
(x2)
48
