Backyard Discovery ATLANTIS - Page 6

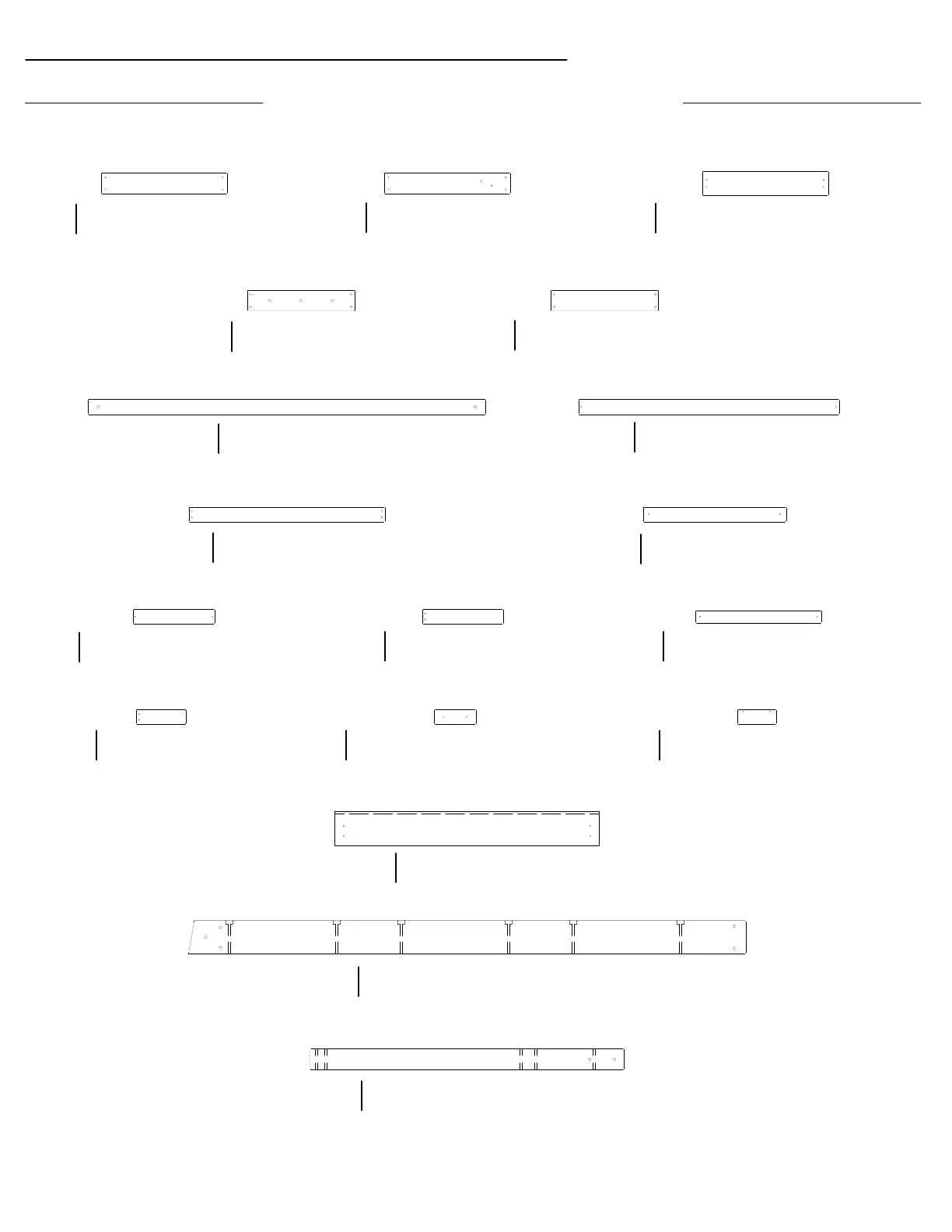

Wood Components (Not to Scale)
ROCK WALL BOARD - W4L16272
5/8"x3 3/8"x20 1/4" (16x86x514)
M26
(x8)
ROCK WALL BOARD - W4L16270
5/8"x3 3/8"x20 1/4" (16x86x514)
M29
(x6)
ROCK WALL END BOARD - W4L16269
5/8"x3 7/8"x20 1/4" (16x100x514)
Y3
(x1)
SLIDE BRACE - W100544
5/8"x3 3/8"x17 1/4" (16x86x438)
M77
(x1)
CENTER SLIDE BRACE - W100545
5/8"x3 3/8"x17 1/4" (16x86x438)
M78
(x2)
SWING BLOCK - W100588
5/8"x2 3/8"x63 7/8" (16x60x1624)
N1
(x1)
FLOOR BOARD - W100589
5/8"x2 3/8"x41 7/8" (16x60x1064)
N2
(x1)
GABLE BOARD - W100590
5/8"x2 3/8"x31 1/2" (16x60x800)
N3
(x2)
WALL BOARD - W100591
5/8"x2 3/8"x23" (16x60x584)
N4
(x10)
BAY WINDOW BOARD - W100592
5/8"x2 3/8"x13 1/8" (16x60x332)
N5
(x6)
GABLE BOARD - W100593
5/8"x2 3/8"x13" (16x60x330)
N6
(x2)
GABLE BOARD - W100594
5/8"x2 3/8"x8" (16x60x202)
N7
(x4)
WALL BOARD SUPPORT - W100595
5/8"x2 3/8"x6 3/4" (16x60x170)
N8
(x2)
BAY WINDOW BOARD - W100596
5/8"x2 3/8"x6 1/4" (16x60x158)
N9
(x6)
ROOF BOARD - W100597
3/4"x5 1/2"x42 1/2" (18x140x1080)
R1
(x14)
SWING BEAM SUPPORT - W4L14654
2"x3 3/8"x50 3/8" (50x86x1280)
W71
(x1)
SWING BEAM EXTENDED - W4L16773
2"x5 1/4"x89 1/2" (50x134x2274)
SB74
(x1)
Owners Manual - Parts Identification
ROCK WALL BOARD - W4L16820
5/8"x2"x20 1/4" (16x50x514)
N10
(x1)
6
