Backyard Discovery ATLANTIS - Page 5

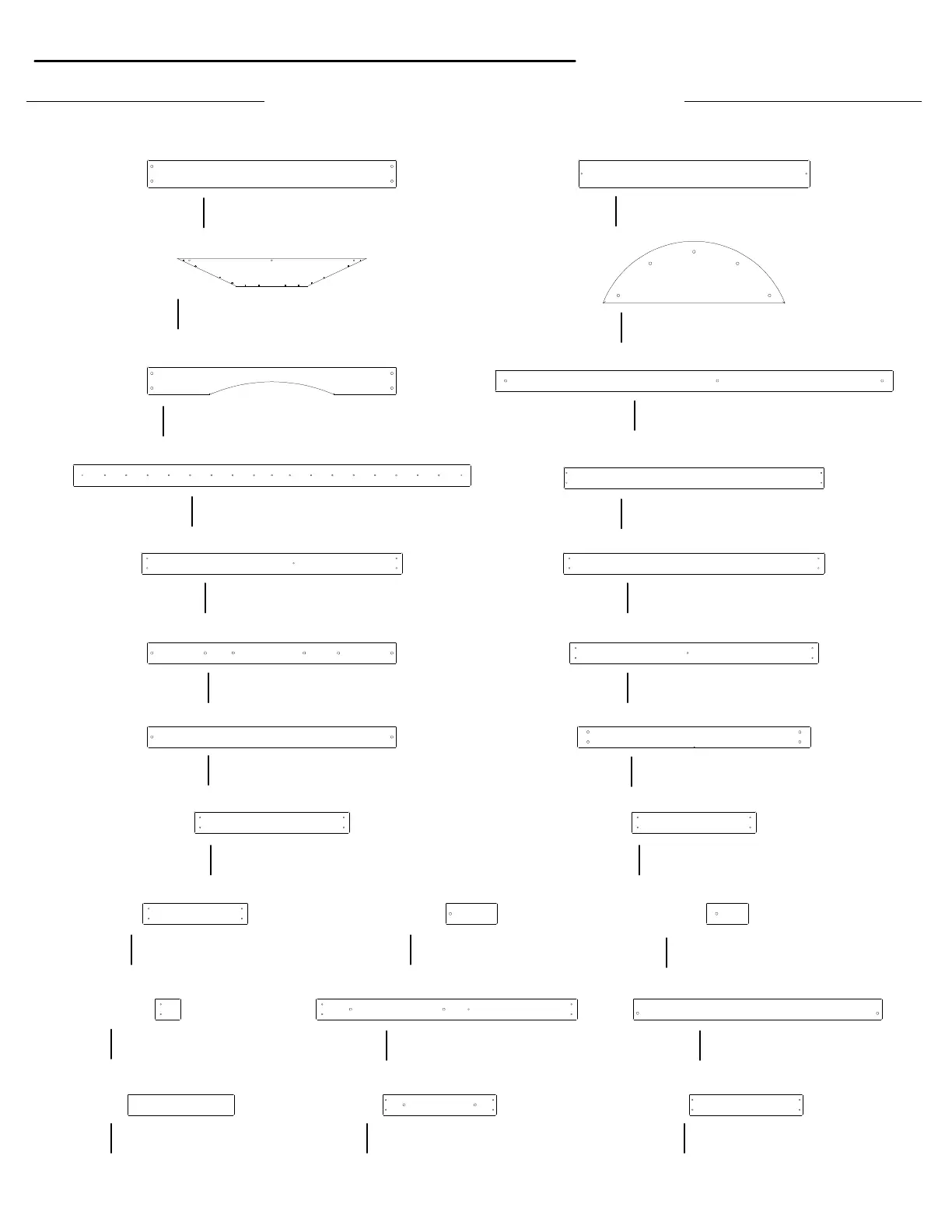

Wood Components (Not to Scale)
WALL RAIL - W100568
5/8"x4 3/8"x40" (16x112x1016)
L3
(x1)
FLOOR BOARD - W100570
5/8"x4 3/8"x37 1/8" (16x112x942)
L5
(x2)
BAY WINDOW HEADER - W100571
5/8"x4 3/8"x30 1/2" (16x112x774)
L6
(x2)
GABLE MOON - W100572
5/8"x4 3/8"x13" (16x112x330)
L7
(x2)
CLUB HOUSE WALL RAIL - W100569
5/8"x4 3/8"x40" (16x112x1016)
L8
(x2)
WALL RAIL - W100573
5/8"x3 3/8"x63 7/8" (16x86x1624)
M1
(x1)
FLOOR RUNNER - W4L16754
5/8"x3 3/8"x63 7/8" (16x86x1624)
M2
(x1)
FLOOR BOARD - W100575
5/8"x3 3/8"x41 7/8" (16x86x1064)
M3
(x16)
WALL BOARD - W100576
5/8"x3 3/8"x42" (16x86x1066)
M4
(x11)
WALL BOARD - W100577
5/8"x3 3/8"x42" (16x86x1066)
M5
(x4)
FLOOR RAIL - W4L16267
5/8"x3 3/8"x40" (16x86x1016)
M6
(x1)
WALL BOARD - W100579
5/8"x3 3/8"x40" (16x86x1016)
M7
(x2)
WALL RAIL - W100580
5/8"x3 3/8"x40" (16x86x1016)
M8
(x3)
WALL RAIL - W100581
5/8"x3 3/8"x37 1/2" (16x86x951)
M9
(x2)
WALL BOARD - W100582
5/8"x3 3/8"x25" (16x86x634)
M10
(x2)
WALL BOARD - W100583
5/8"x3 3/8"x20" (16x86x508)
M11
(x9)
WALL BOARD - W100584
5/8"x3 3/8"x16 7/8" (16x86x428)
M12
(x3)
WALL RAIL - W100585
5/8"x3 3/8"x8 1/4" (16x86x208)
M13
(x4)
WALL RAIL - W100586
5/8"x3 3/8"x6 3/4" (16x86x172)
M14
(x2)
WALL BOARD - W100587
5/8"x3 3/8"x4 1/8" (16x86x106)
M15
(x8)
WALL BOARD - W100599
5/8"x3 3/8"x42" (16x86x1066)
M16
(x2)
WALL RAIL - W102881
5/8"x3 3/8"x40" (16x86x1016)
M17
(x2)
LADDER RUNG - W4L16262
1"x3 3/8"x17 1/8" (24x86x434)
M18
(x4)
ATTACHMENT BOARD - W4L16263
5/8"x3 3/8"x18 1/4" (16x86x462)
M19
(x1)
REAR SUPPORT - W4L16264
5/8"x3 3/8"x18 1/4" (16x86x462)
M20
(x1)
Owners Manual - Parts Identification
5
