Backyard Discovery Bay Pointe - Fort Assembly - Securing the Structure; Step 22: Ground Stake Installation

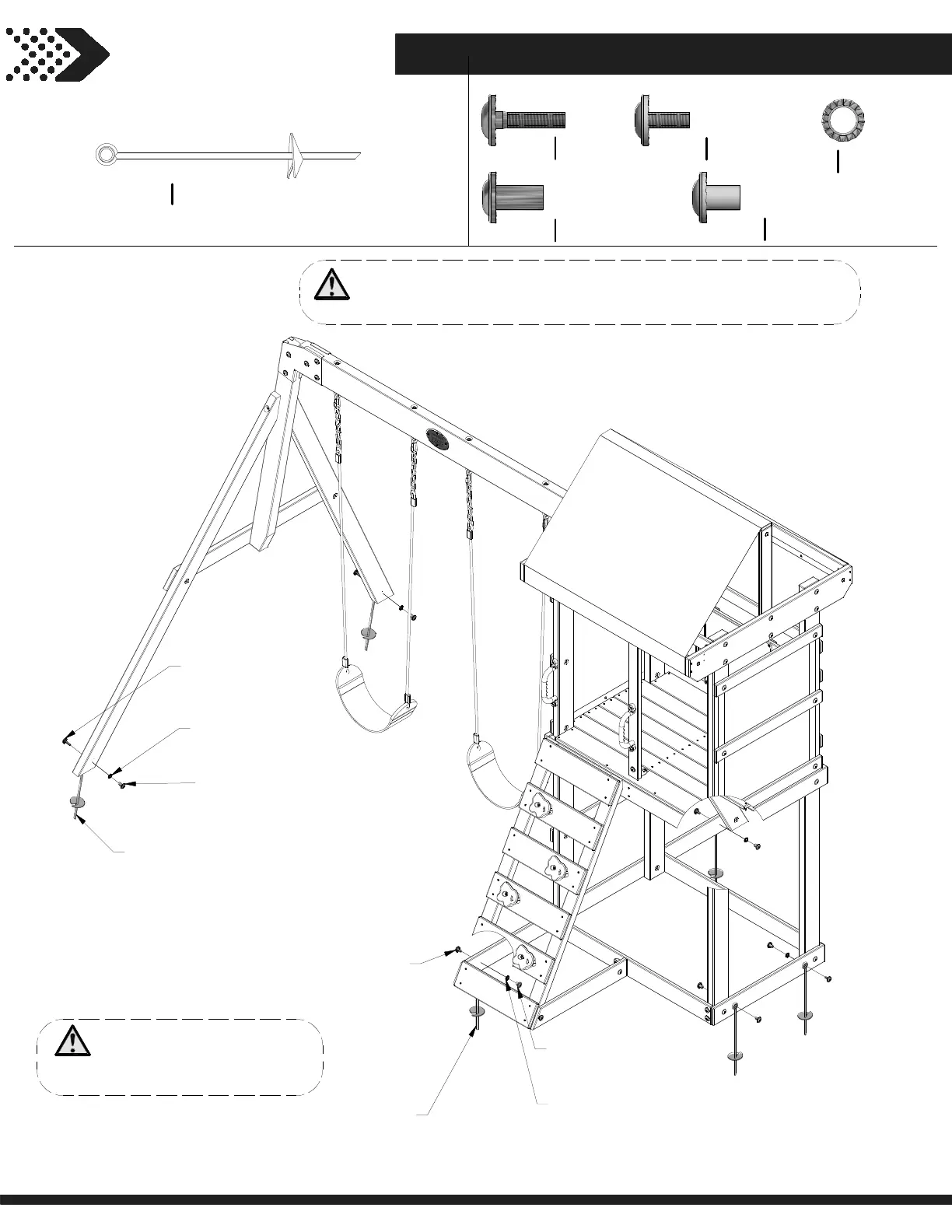

FORT ASSEMBLY
STEP 22
NUT BARREL WH
5/16 x 5/8
(4)
H100004
BOLT WH
5/16x1 1/4
(2)
H100009
WASHER LOCK
EXT
12x19
(6)
H100031
BOLT WH
5/16x3/4
(4)
H100222
NOTE:
TWIS
T GROUND STAKES INTO GROUND IN LOCATIONS SHOWN.
USING GROUND STAKE AS A GUIDE, DRILL 7/16" HOLE FOR HARDWARE.
NOTE:
FAILURE TO USE GROUND
STAKES CAN VOID WARRANTY
& CAUSE INJURY!
AUGER GROUND
STAKE
(6)
A100178
009 (x2)
BOLT - 1 1/4"
031 (x2)
WASHER - 12x19
005 (x2)
NUT BARREL - 7/8"
222 (x4)
BOLT - 3/4"
031 (x4)
WASHER - 12x19
004 (x4)
NUT BARREL - 5/8"
NUT BARREL WH
5/16x7/8
(2)
H100005
178 (x2)
AUGER GROUND STAKE
178 (x4)
AUGER GROUND STAKE
41
