Backyard Discovery Bay Pointe - Fort Assembly - Slide Completion; Step 23: Slide Final Attachment

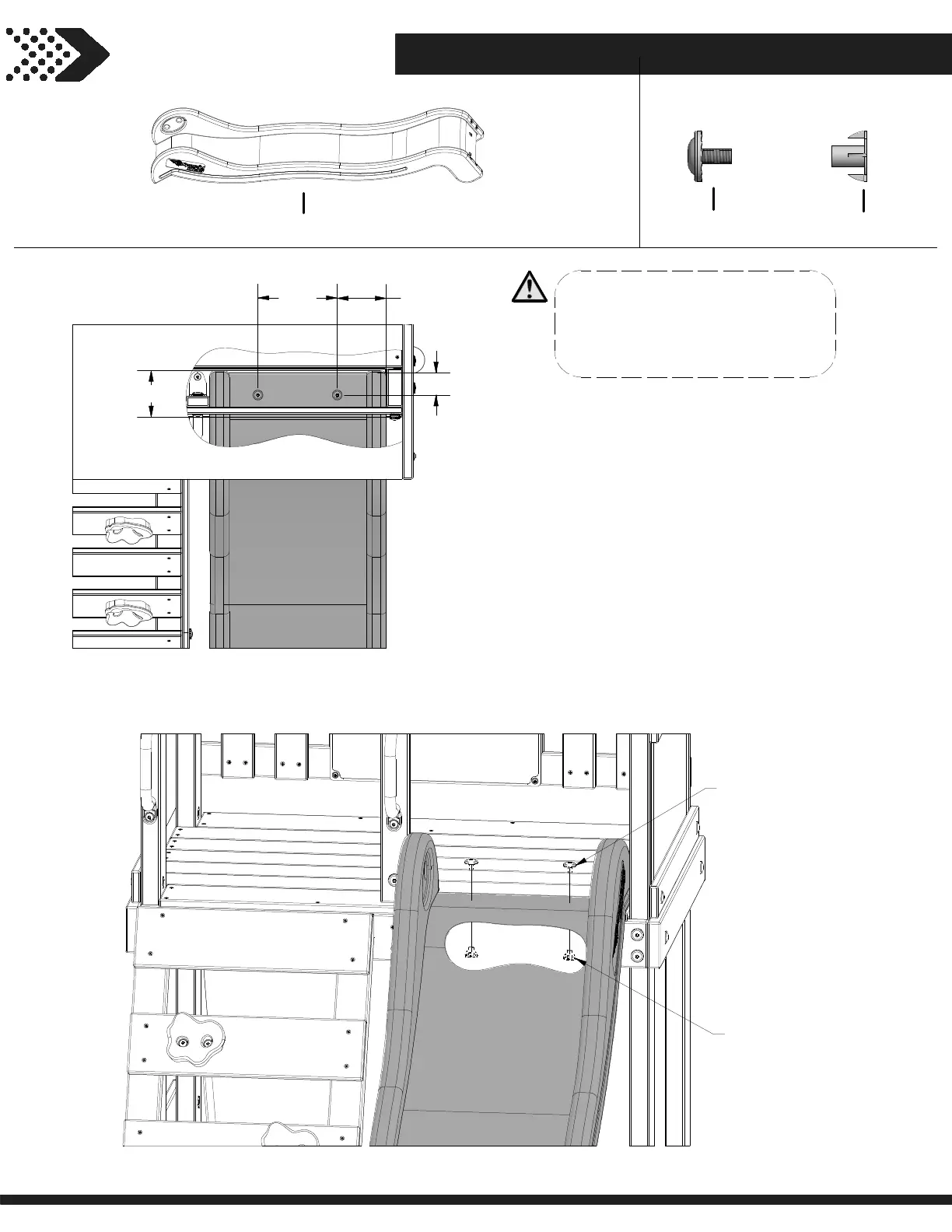

FORT ASSEMBLY
STEP 23
NOTE:
CENTER
SLIDE IN OPENING.
USING DIMENSIONS SHOWN AS
A TEMPLATE, DRILL (2) 3/8" HOLES
THROUGH SLIDE & DECK FOR
HARDWARE.
SLIDE
ASSEMBLY
(1)
9208018
7 1/8
4 3/8
4 1/8
2
074 (x2)
T-NUT - 5/16"
115 (x2)
BOLT - 1/2"
BOLT WH
5/16x1/2
(2)
H100115
T-NUT
5/16
(2)
H100074
42
