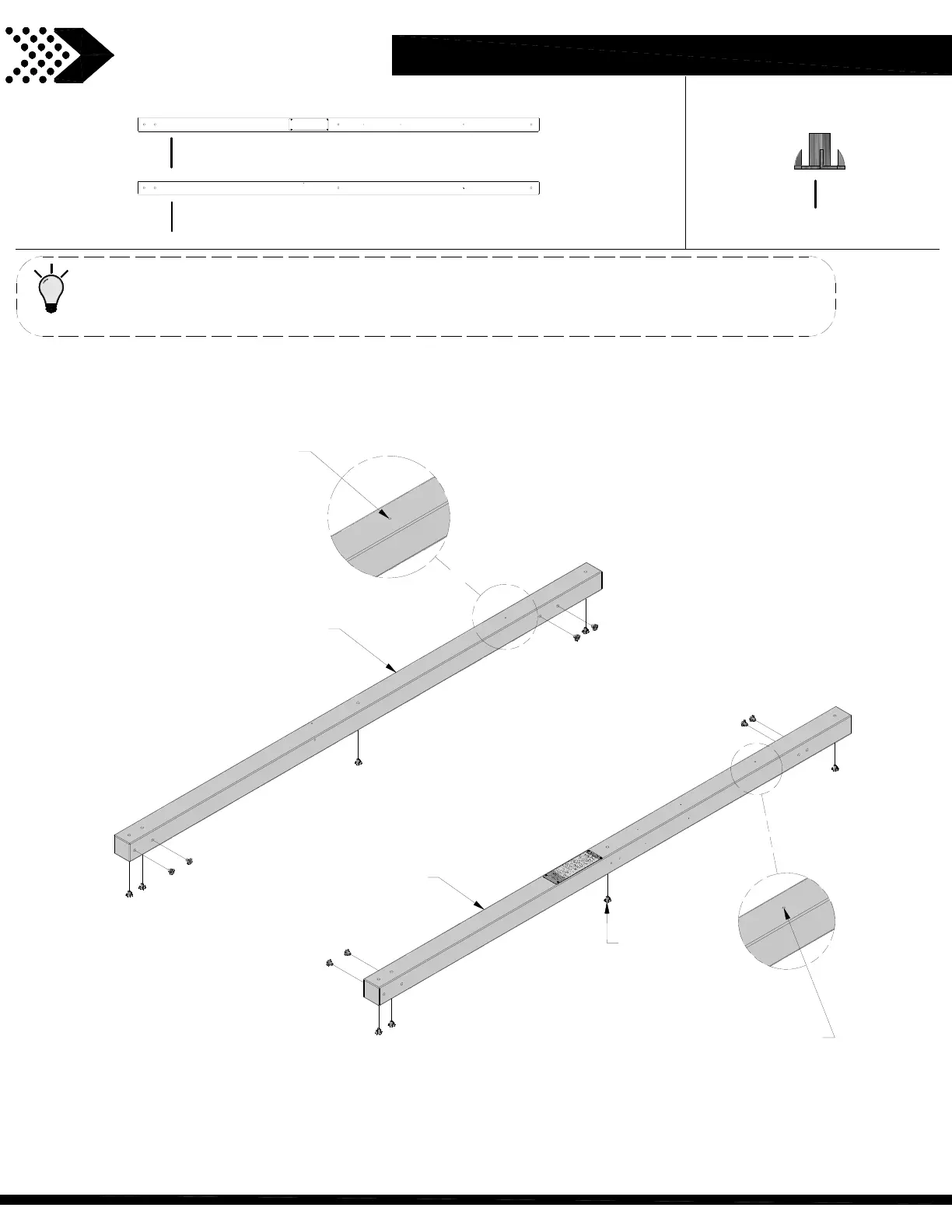

FORT ASSEMBLY
STEP 1
TIP:
1. FOR EASE OF ASSEMBLY WE RECOMMEND USING SAW HORSES TO ASSEMBLE FORT WALLS.
2. WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY.
074 (x16)
T-NUT - 5/16"
B4 (x1)
UPRIGHT POST
B1 (x1)
UPRIGHT POST
UPRIGHT POST - W4L13770
3"x3"x89 1/2" (76x76x2274)
B4
(x1)
B1
(x1)
UPRIGHT POST ASSEMBLY - W2A02851
3"x3"x89 1/2" (76x76x2274)
T-NUT
5/16
(x16)
H100074
NOTE PILOT HOLE LOCATION
FOR PROPER ORIENTATION
OF THE POST.
NOTE PILOT HOLE LOCATION
FOR PROPER ORIENTATION
OF THE POST.
