Backyard Discovery GRAYSON PEAK - Page 26

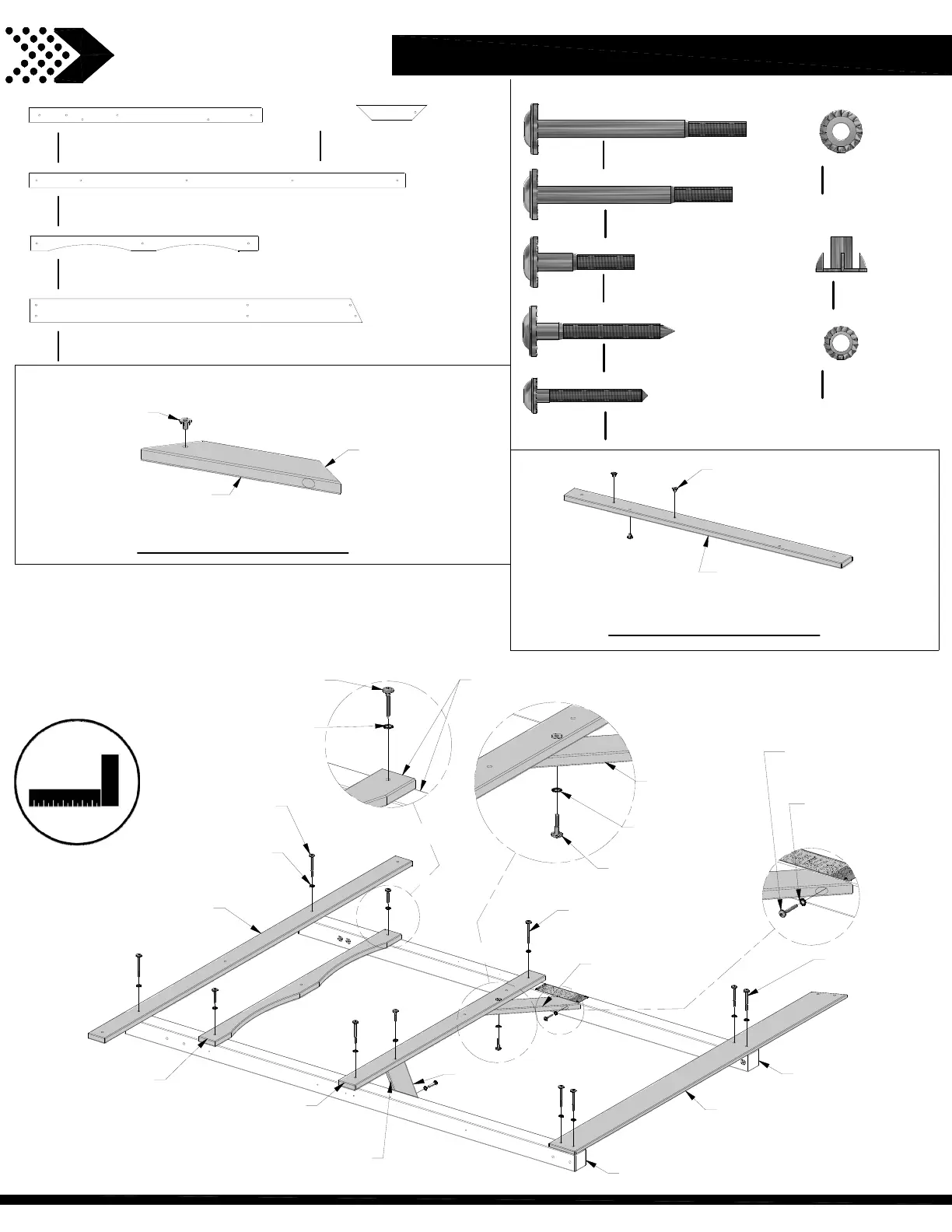

FORT ASSEMBLY
STEP 2
H13 (x1)
ARCHED RAIL
H2 (x1)
FLOOR SUPPORT
K1 (x1)
GROUND BOARD
H8 (x1)
ROOF RAIL
H2
FLOOR SUPPORT
H12 (x1)
DECK BRACE
H12
DECK BRACE
INCLUDES T-NUT
NO T-NUT
IN BRACE.
H12 (x1)
DECK BRACE
028 (x2)
LAG SCREW - 2 1/2"
030 (x2)
WASHER - 8x19
011 (x2)
BOLT - 1 3/4"
030 (x2)
WASHER - 8x19
074 (x1)
T-NUT - 5/16"
074 (x3)
T-NUT - 5/16"
FLOOR SUPPORT - W4L13772
1"x3 3/8"x52 1/8" (24x86x1324)
H2
(x1)
ROOF RAIL - W4L13765
1"x3 3/8"x83 7/8" (24x86x2132)
H8
(x1)
DECK BRACE - W4L13771
1"x3 3/8"x15 7/8" (24x86x402)
H12
(x2)
ARCHED RAIL - W4L13774
1"x3 3/8"x50 7/8" (24x86x1292)
H13
(x1)
GROUND BOARD - W4L07122
5/8"x5 1/4"x74 1/4" (16x134x1888)
K1
(x1)
019 (x2)
BOLT - 3 3/4"
030 (x8)
WASHER - 8x19
T-NUT SUB ASSEMBLY
T-NUT SUB ASSEMBLY
BOLT WH
5/16x1 3/4
(x2)
H100011
BOLT WH
5/16x3 3/4
(x4)
H100019
T-NUT
5/16
(x4)
H100074
LAG SCREW WH
5/16x2 1/2
(x2)
H100028
WASHER LOCK
EXT
8x19
(x12)
H100030
T
O
P
NOTE BOARD
ORIENTATION.
ASSEMBLE T-NUT INTO ONLY (1) H12 DECK BRACE.
138 (x2)
WASHER - 6x15
146 (x2)
LAG SCREW - 2"
LAG SCREW WH
1/4x2
(x2)
H100146
WASHER LOCK
EXT
6x15
(x2)
H100138
T
O
P
B1
B4
018 (x4)
BOLT - 3 1/2"
019 (x2)
BOLT - 3 3/4"
BOLT WH
5/16x3 1/2
(x4)
H100018
FLUSH
TIP:
INSTALL T-NUTS IN WOOD FIRST
26
