Backyard Discovery GRAYSON PEAK - Page 27

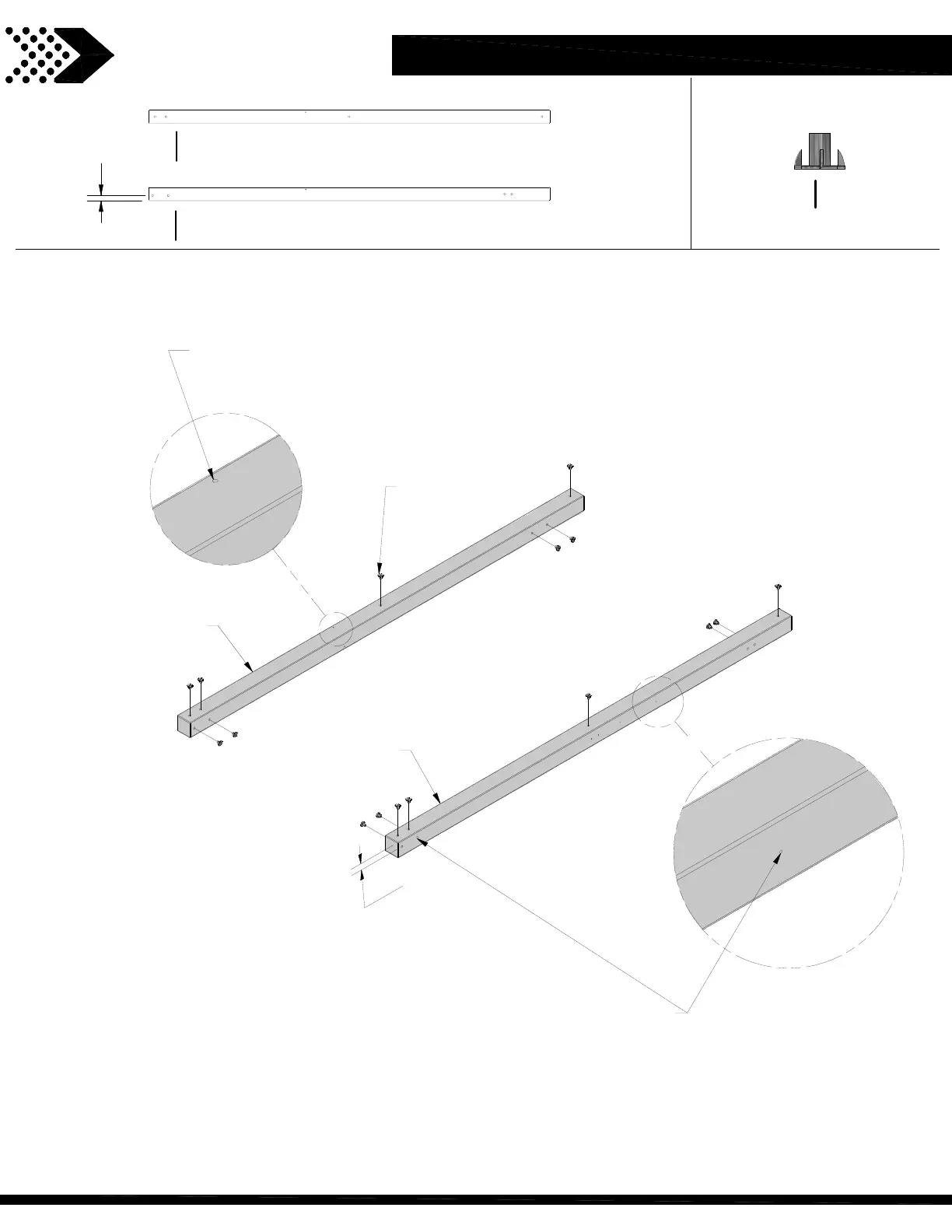

FORT ASSEMBLY
STEP 3
B3 (x1)
UPRIGHT POST
B2 (x1)
UPRIGHT POST
074 (x16)
T-NUT - 5/16"
T-NUT
5/16
(x16)
H100074
UPRIGHT POST - W4L13769
3"x3"x89 1/2" (76x76x2274)
B3
(x1)
NOTE PILOT HOLE LOCATION
FOR PROPER ORIENTATION
OF THE POST.
NOTE PILOT HOLE LOCATION
FOR PROPER ORIENTATION
OF THE POST.
UPRIGHT POST - W4L13768
3"x3"x89 1/2" (76x76x2274)
B2
(x1)
1 in [29 mm]
1 in
[29mm]
27
