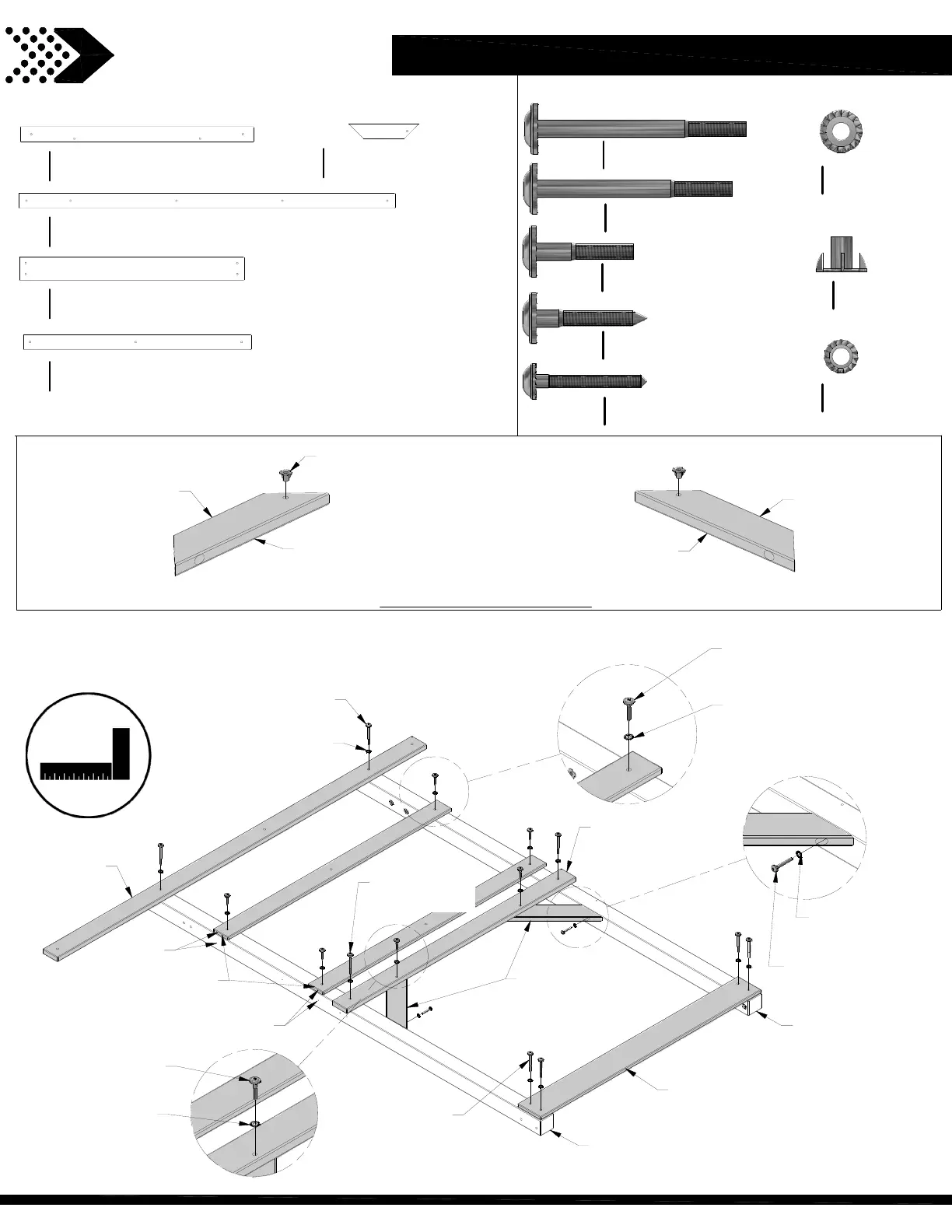

Backyard Discovery GRAYSON PEAK - Page 28

FORT ASSEMBLY
STEP 4
019 (x2)
BOLT - 3 3/4"
030 (x8)
WASHER - 8x19
074 (x2)
T-NUT - 5/16"
H12
DECK BRACE
H12
DECK BRACE
NOTE BOARD
ORIENTATION.
NOTE BOARD
ORIENTATION.
027 (x4)
LAG SCREW - 2"
011 (x2)
BOLT - 1 3/4"
030 (x2)
WASHER - 8x19
H8 (x1)
ROOF RAIL
M8 (x2)
WALL RAIL
H3 (x1)
FLOOR SUPPORT
H12 (x2)
DECK BRACE
T-NUTS FACE
DOWNWARD
K3 (x1)
GROUND BOARD
146 (x2)
LAG SCREW - 2"
138 (x2)
WASHER - 6x15
FLOOR SUPPORT - W4L13773
1"x3 3/8"x52 1/8" (24x86x1324)
H3
(x1)
DECK BRACE - W4L13771
1"x3 3/8"x15 7/8" (24x86x402)
H12
(x2)
ROOF RAIL - W4L13765
1"x3 3/8"x83 7/8" (24x86x2132)
H8
(x1)
GROUND BOARD - W4L07124
5/8"x5 1/4"x50 1/8" (16x134x1274)
K3
(x1)
WALL RAIL - W4L07145
5/8"x3 3/8"x50 7/8" (16x86x1292)
M8
(x2)
T-NUT
5/16
(x2)
H100074
WASHER LOCK
EXT
8x19
(x14)
H100030
WASHER LOCK
EXT
6x15
(x2)
H100138
LAG SCREW WH
1/4x2
(x2)
H100146
BOLT WH
5/16x1 3/4
(x2)
H100011
BOLT WH
5/16x3 3/4
(x4)
H100019
LAG SCREW WH
5/16x2
(x4)
H100027
T-NUT SUB ASSEMBLY
030 (x4)
WASHER - 8x19
018 (x4)
BOLT - 3 1/2"
019 (x2)
BOLT - 3 3/4"
B3
B2
BOLT WH
5/16x3 1/2
(x4)
H100018
FLUSH
FLUSH
TIP:
INSTALL T-NUTS IN WOOD FIRST
28
