Backyard Discovery GRAYSON PEAK - Page 29

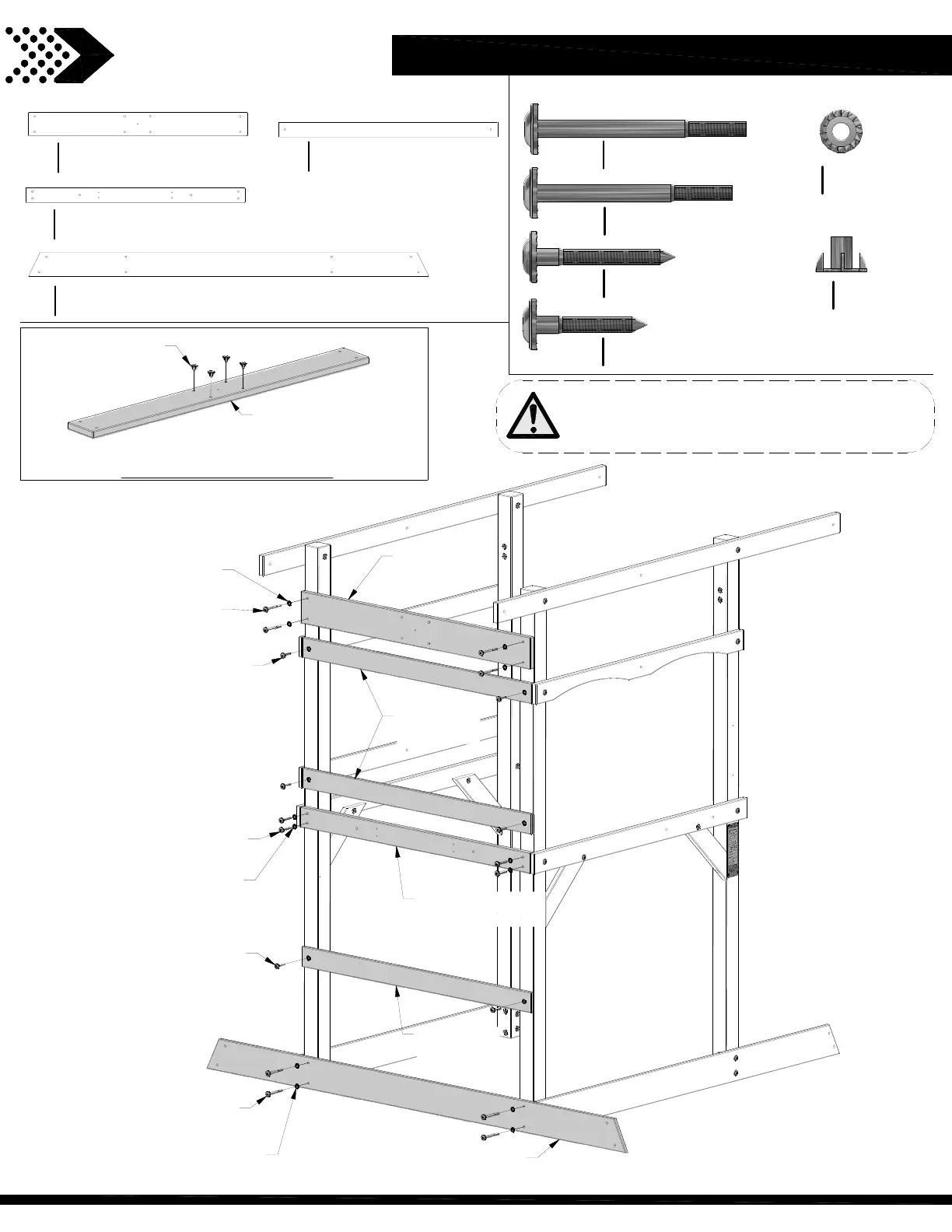

FORT ASSEMBLY
STEP 5
NOTE:
018 (x4)
BOLT - 3 1/2"
030 (x4)
WASHER - 8x19
027 (x2)
LAG SCREW - 2"
028 (x4)
LAG SCREW - 2 1/2"
030 (x4)
WASHER - 8x19
030 (x4)
WASHER - 8x19
019 (x4)
BOLT - 3 3/4"
027 (x4)
LAG SCREW - 2"
G2 (x1)
WALL RAIL
M9 (x2)
WALL RAIL
H5 (x1)
FLOOR SUPPORT
M9 (x1)
WALL RAIL
K2 (x1)
GROUND BOARD
074 (x4)
T-NUT - 5/16"
G2 WALL RAIL
T-NUT SUB ASSEMBLY
LAG SCREW WH
5/16x2
(x6)
H100027
T-NUT
5/16
(x4)
H100074
WASHER LOCK
EXT
8x19
(x18)
H100030
BOLT WH
5/16x3 3/4
(x4)
H100019
LAG SCREW WH
5/16x2 1/2
(x4)
H100028
BOLT WH
5/16x3 1/2
(x4)
H100018
WALL RAIL - W4L07153
1"x5 1/4"x48 7/8" (24x134x1243)
G2
(x1)
FLOOR SUPPORT - W4L07131
1"x3 3/8"x48 7/8" (24x86x1243)
H5
(x1)
GROUND BOARD - W4L07123
5/8"x5 1/4"x89 3/8" (16x134x2270)
K2
(x1)
WALL RAIL - W4L07146
5/8"x3 3/8"x48 7/8" (16x86x1243)
M9
(x3)
ASSEMBLE THE T-NUT SUB ASSEMBLY FIRST.
TIP:
INSTALL T-NUTS IN WOOD FIRST
29
