Backyard Discovery GRAYSON PEAK - Page 30

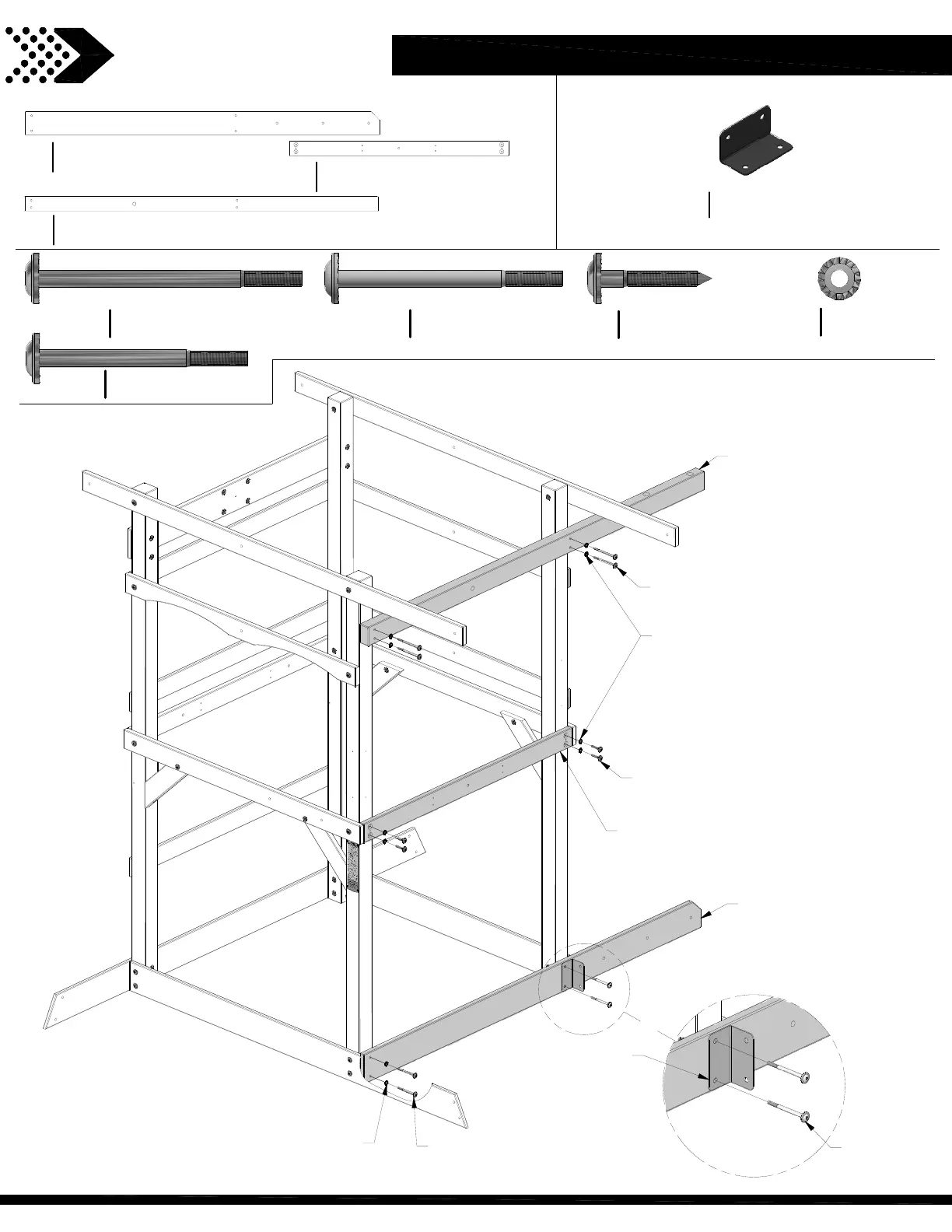

FORT ASSEMBLY
STEP 6
020 (x2)
BOLT - 4"
027 (x4)
LAG SCREW - 2"
030 (x8)
WASHER - 8x19
505 (x4)
BOLT - 5/16x4 3/4"
140 (x1)
L BRACKET 66x66x127
W1 (x1)
SUPPORT BOARD
H4 (x1)
FLOOR SUPPORT
G1 (x1)
GROUND BOARD
L BRACKET 66x66x127
(x1)
A100140
GROUND BOARD - W4L13582
1"x5 1/4"x79 1/8" (24x134x2010)
G1
(x1)
FLOOR SUPPORT - W4L07130
1"x3 3/8"x48 7/8" (24x86x1243)
H4
(x1)
SUPPORT BOARD - W4L07156
2"x3 3/8"x78 7/8" (50x86x2005)
W1
(x1)
WASHER LOCK
EXT
8x19
(x10)
H100030
LAG SCREW WH
5/16x2
(x4)
H100027
BOLT WH
5/16x4
(x2)
H100020
BOLT WH
5/16x4 3/4
(x4)
H100505
019 (x2)
BOLT - 3 3/4"
030 (x2)
WASHER - 8x19
BOLT WH
5/16x3 3/4
(x2)
H100019
