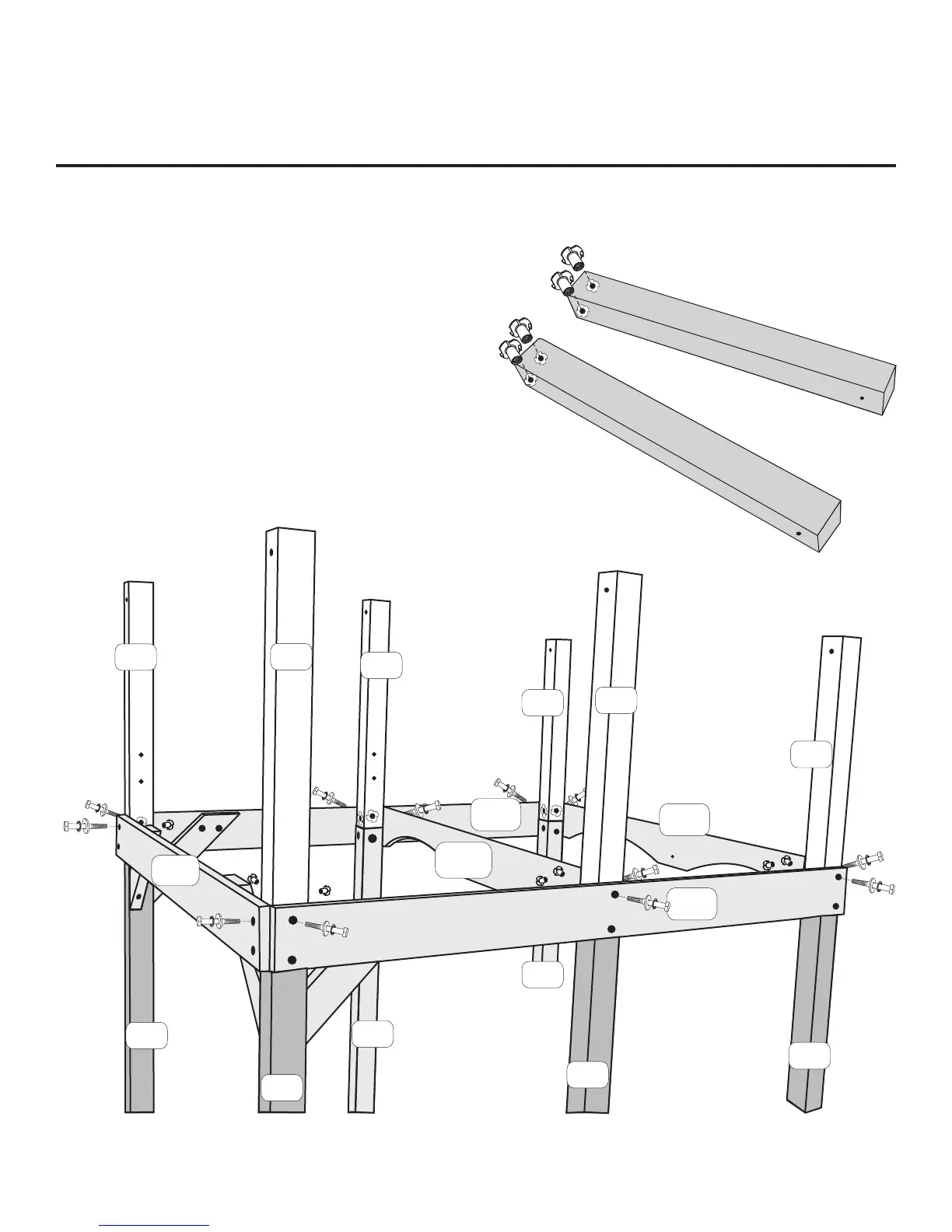

STEP 7
Attach B6 Porch Roof Supports to G3 and G4 Floor Rails
above B1 Front Tower Legs with 5/16”x 4” Hex Bolts,
5/16” Lock Washers, s and 5/16” Spike T-
Nuts.
Attach two (2) B4 Club House Legs to G3, G7 and G5
Floor Rails above B2 middle Tower Leg and B3 Back
Tower Leg on right side of structure with 5/16”x 4” Hex
Bolts, 5/16” Lock Washers, s and 5/16”
Spike T-Nuts.
Attach two (2) B5 Club House Legs to G3, G7 and G5
above B2 and B3 tower Legs on left side of structure using
5/16” x 4” Hex Bolts, 5/16” Lock Washers, Fender
Washers and 5/16” Spike T Nuts.
Fender Washer
Fender Washer
G4
G3
G3
G7
G5
B6
B6
B4
B4
B5
B5
B1
B2
B3
B3
B2
B1
ITEMS NEEDED
(2) B6 Porch Roof Supports
(2) B5 Club House Legs
(2) B4 Club House Legs
HARDWARE NEEDED
(12) 5/16” x 4” hex Bolt
(12) 5/16” Spike Tee Nut
(12) Fender Washer
(12) 5/16” Lock Washer
