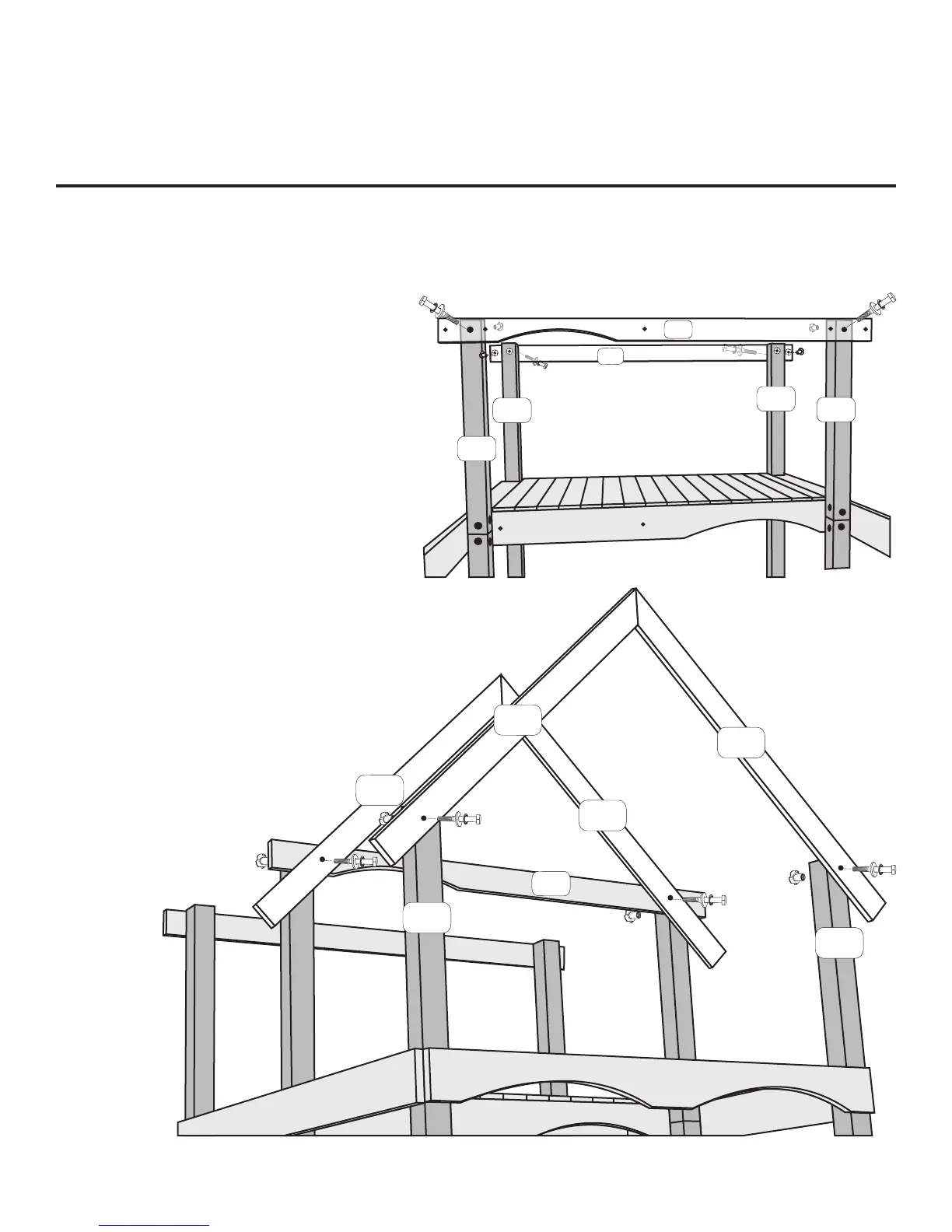

STEP 9
Drive 5/16” Spike T-Nuts into H2 Wall Rail (per
diagram) and then attach to B4 and B5 Club House
Legs using 5/16”x 4” Hex Bolts, 5/16” Lock
Washers, Fender Washers and 5/16” Spike T-Nuts.
Drive 5/16” Spike T-Nuts into H1 Wall Rail (per
diagram) and attach to B4 and B5 Club House Legs
using 5/16”x 3-3/4” Hex Bolts, 5/16” Lock Washers,
and 5/16” Flat Washers in countersunk holes of H1
and 5/16” Spike T-Nuts in legs.
Attach H9 Front Porch Rafters to B6 Porch Roof
Supports with 5/16”x 4” Hex Bolts, 5/16” Lock
Washers, Washers and 5/16” Spike T-Nuts.
Attach H10 Back Porch Rafters to H1 Wall Rail
using 5/16”x 2” Hex Bolts, 5/16” Lock Washers,
Washers and 5/16” Spike T-Nuts installed
earlier in H1 Rail.
Fender
Fender
H1
H2
B5
B5
B4
B4
B6
B6
H9
H9
H10
H10
H1
ITEMS NEEDED
(1) H1 Wall Rail
(1) H2 Wall Rail
(2) H9 Front Porch Rafter
(2) H10 Back Porch Rafter
HARDWARE NEEDED
(2) 5/16” x 3 ¾” Hex Bolt
(4) 5/16' x 4” Hex Bolt
(2) 5/16” X 2 Hex Bolt
(8) 5/16” Spike Tee Nut
(6) Fender Washer
(8) 5/16” Lock Washer
(2) 5/16” Flat Washer
