Backyard Discovery Highlander 6010 - Page 41

PAGE 39

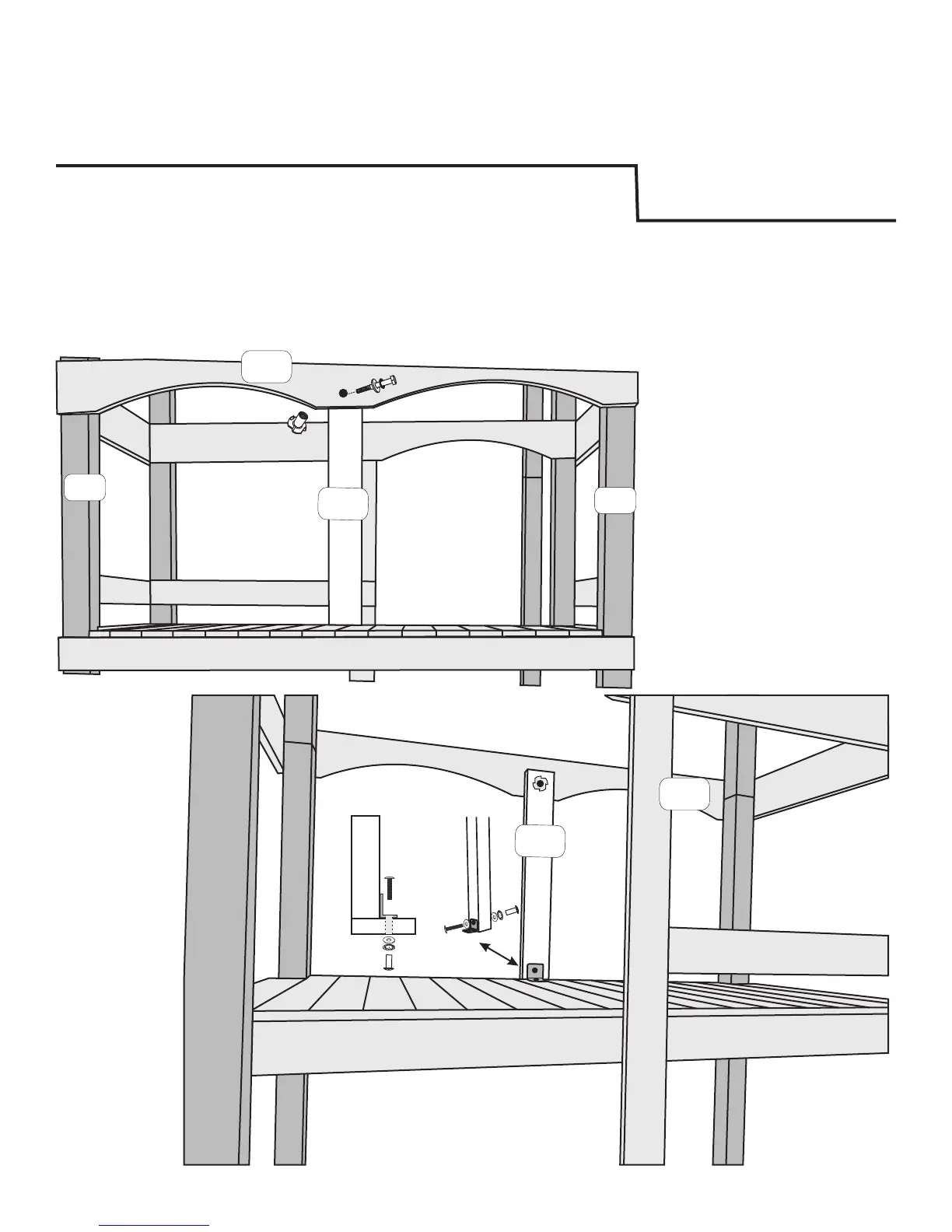

STEP 20
Attach H16 Front Wall Rail to G4 Wall Rail with 5/16”x 2” Hex Bolts, 5/16” Lock Washers, Washers and 5/16”
Spike T-Nut. Position L Bracket to H16 and mark floor and drill with 3/8” drill bit.
Now, secure H16 to Floor with Y30-40G L-Bracket using ¼”x 1” Phillips Truss Head Bolt, 5/16” Lock Washer,
Washer and ¼” Barrel Nut and to Floor with ¾” Truss Head Bolt, 5/16” Lock Washer, Washer and 1/4” Barrel Nut.
Fender
Fender
Fender
LOCK
WASHER
BARREL
NUT
BOLT
FLOOR
FENDER
WASHER
H16
H16
G4
B1
B1
G4
ITEMS NEEDED
(1) H16 Front Wall Rail
HARDWARE NEEDED
(1) Y30-40G L Bracket
(1) 5/16” x 2” Hex Bolt
(1) 5/16” Spike Tee Nut
(2) ¼” Phillips Barrel Nut
(1) ¼” x 1” Phillips Truss Head Bolt
(1) ¼” x ¾” Phillips Truss Head Bolt
(3) Fender Washer
(3) 5/16” Lock Washer
