STEP 22
( Pilot drill with 3/16” drill bit when using Lag Screws )

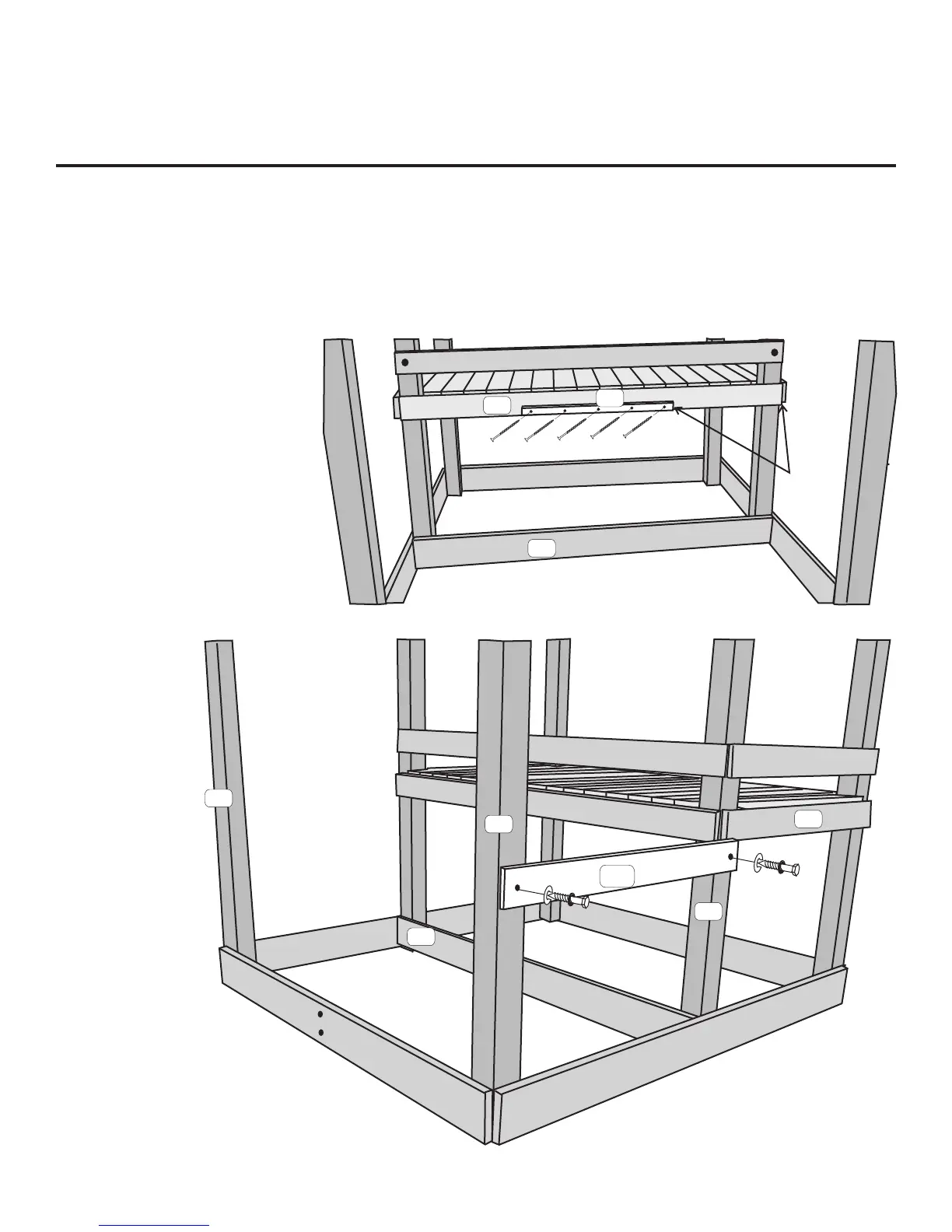

Attach T1 Picnic Table Support flush with bottom of H6 Floor Rail and 18-1/4” from edge of H6 with 1-1/2” Wood Screws.
Attach M5 Wall Rail to B1 and B2 Tower Legs by pushing up against Bottom of H11 Floor Rail with 5/16”x 2” Lag Screws,
5/16” Lock Washers and Washers.Fender
PAGE 41
T1
M5
H6
18-1/4”
G7
G7
B1
B1
B2
H11
ITEMS NEEDED
(1) T1 Picnic Table Support
(1) M5 Wall Rail
HARDWARE NEEDED
(5) 1 ½” Wood Screw
(2) 5/16” x 2” Lag Screw
(2) Fender Washer
(2) 5/16” Lock Washer
To Next Page
