STEP 25
Attach M9 Wall Boards to inside of Wall Rails on left, right and
Back Walls 3” apart and 1-1/2” up from M5 and M4 Rail with
1-1/4” Wood Screws. Diagram 1
Attach M10 Wall Boards to inside Back Wall 1-1/2” up and
2-1/4” apart using 1-1/4” Wood Screws. (Note: Start at Tower
Legs and work to middle on Lower and Upper Wall.)
Diagram 2
Attach M10 Wall Boards to middle Floor Wall Rails 1-1/2”up
From Wall Rail and 3” apart using 1-1/4” Wood Screws, to
Right and Left Sides. Diagram 3
PAGE 44
M10
M10
1 ½” up
from bottom of rail
2 ¼”
spacing
M10
M10
1 ½” up
from bottom of rail
3”
spacing
M9
M4
M5
1 ½” up
from bottom of rail
3” spacing

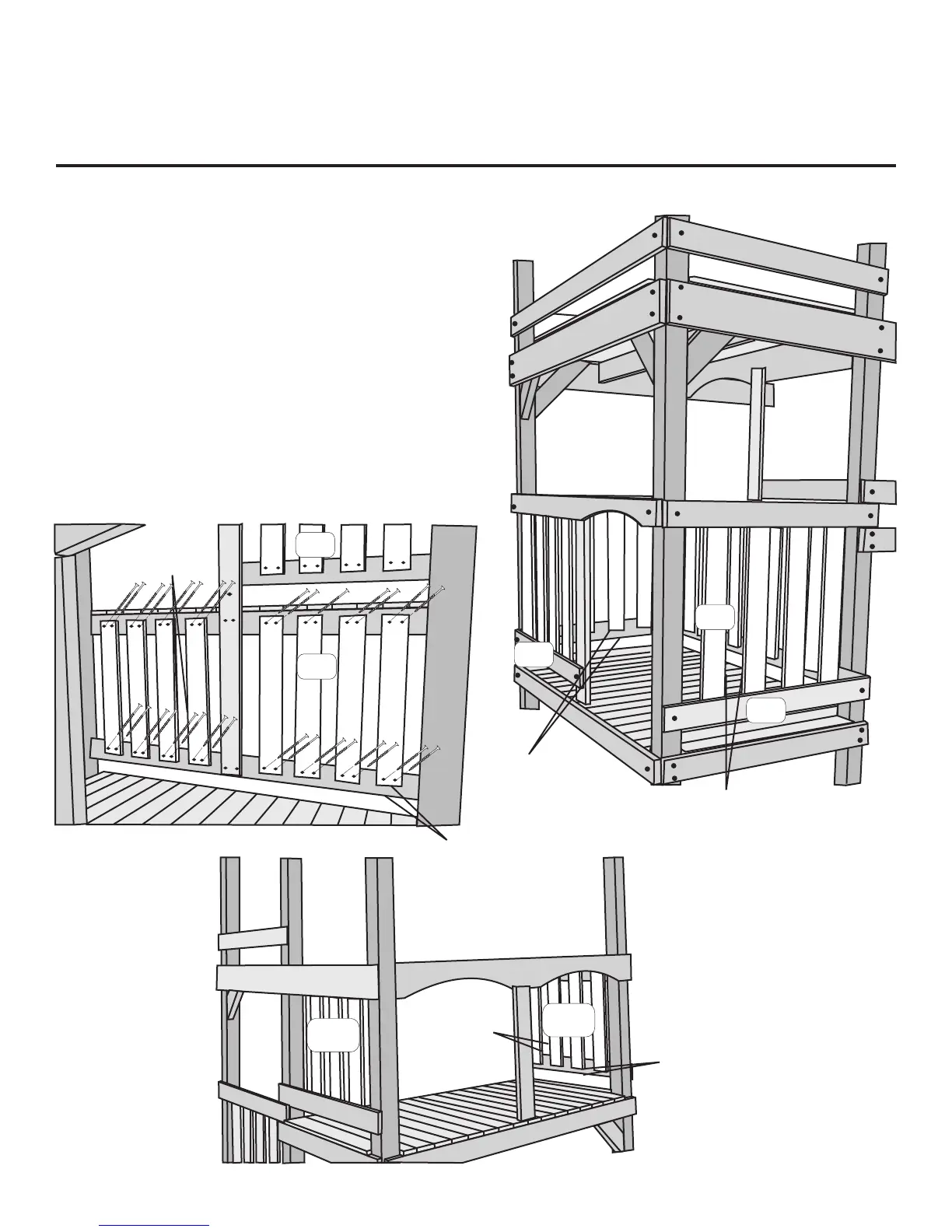

Diagram 1
Diagram 2
Diagram 3
ITEMS NEEDED
(12) M9 Wall Boards
(20) M10 Wall Boards
HARDWARE NEEDED
(128) 1 ¼” Wood Screws
